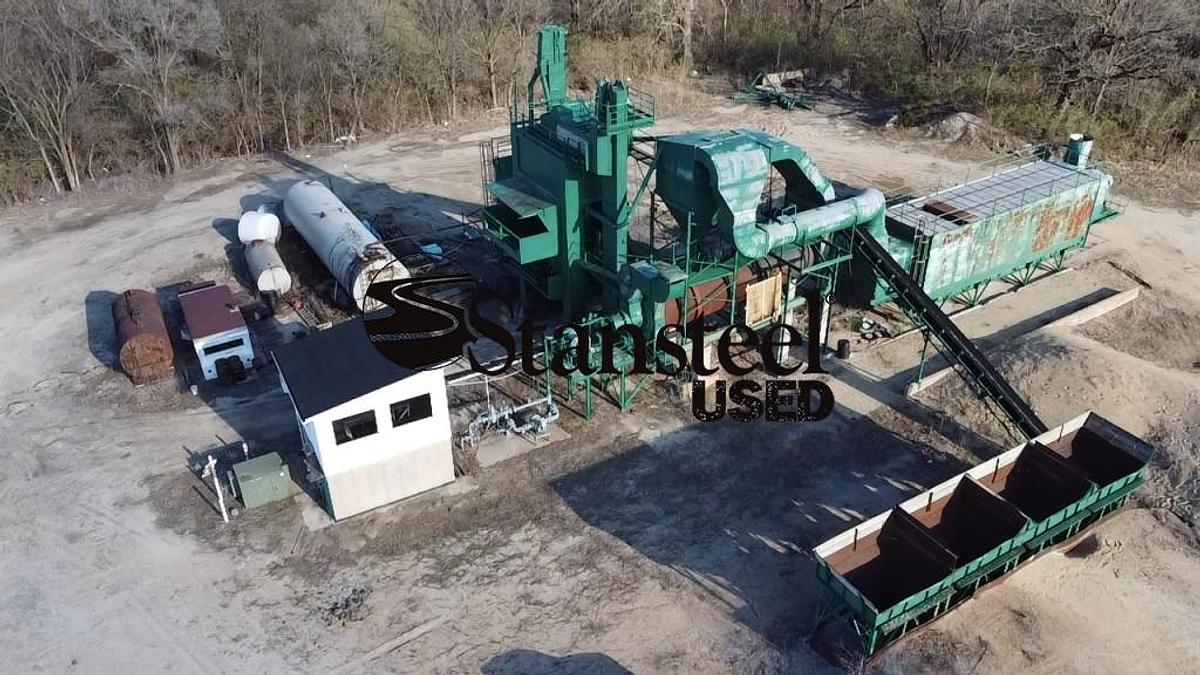

Barber Greene 2.5 Ton Partial Batch Plant

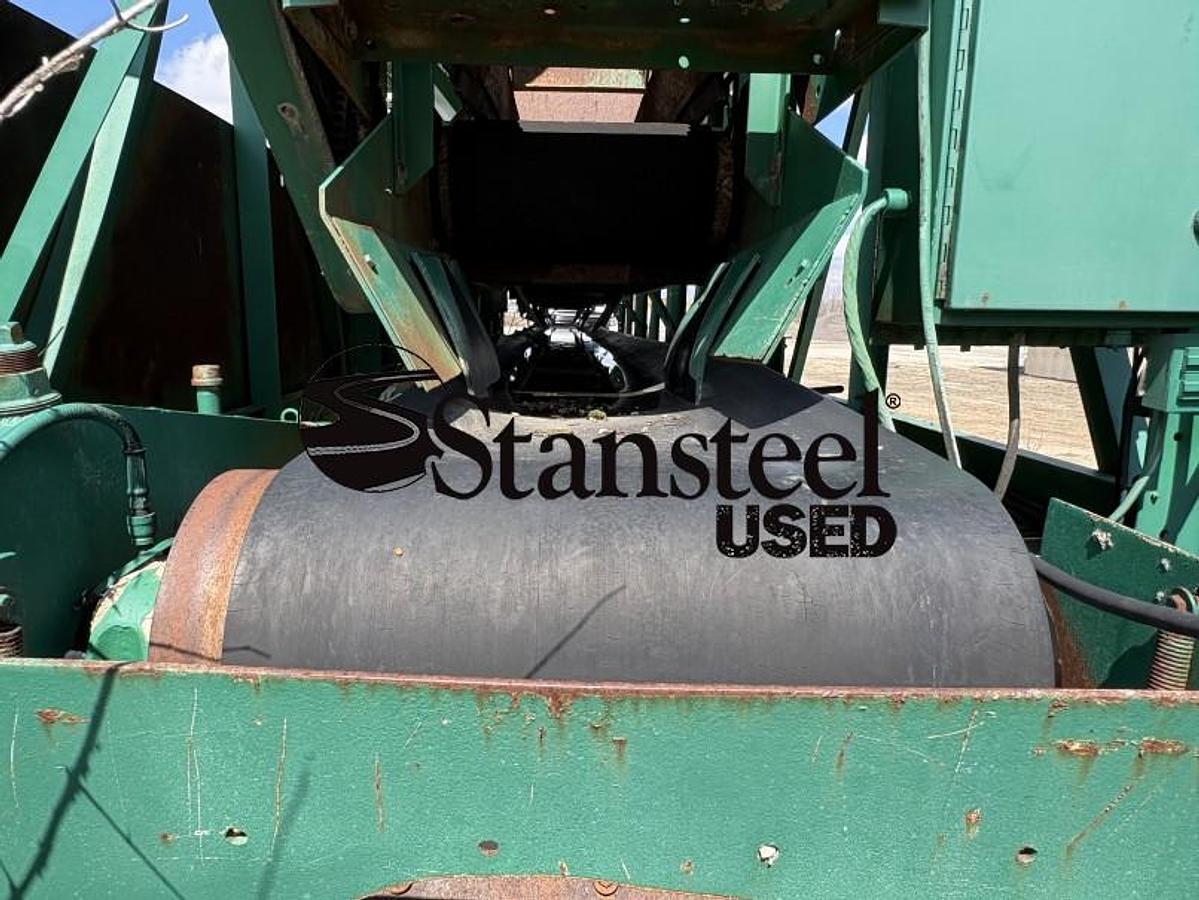

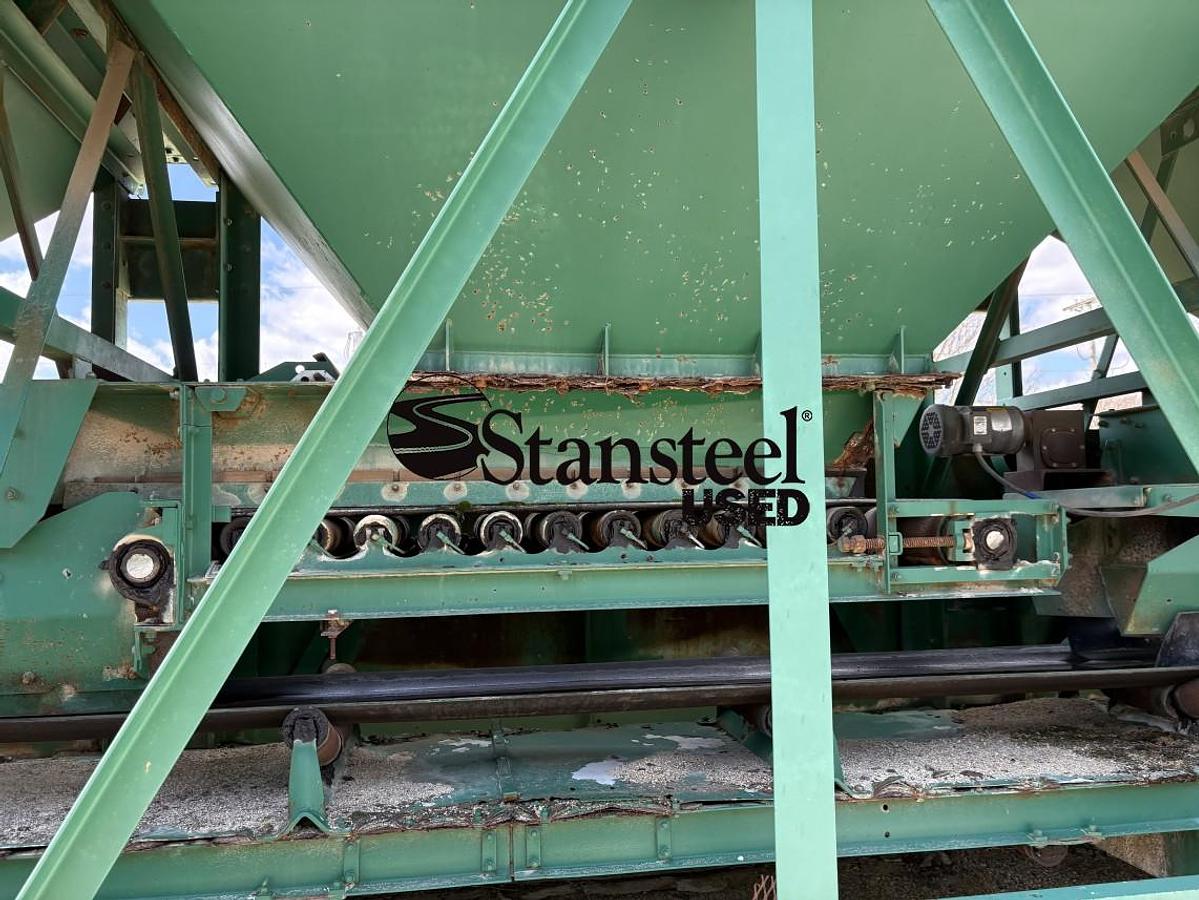

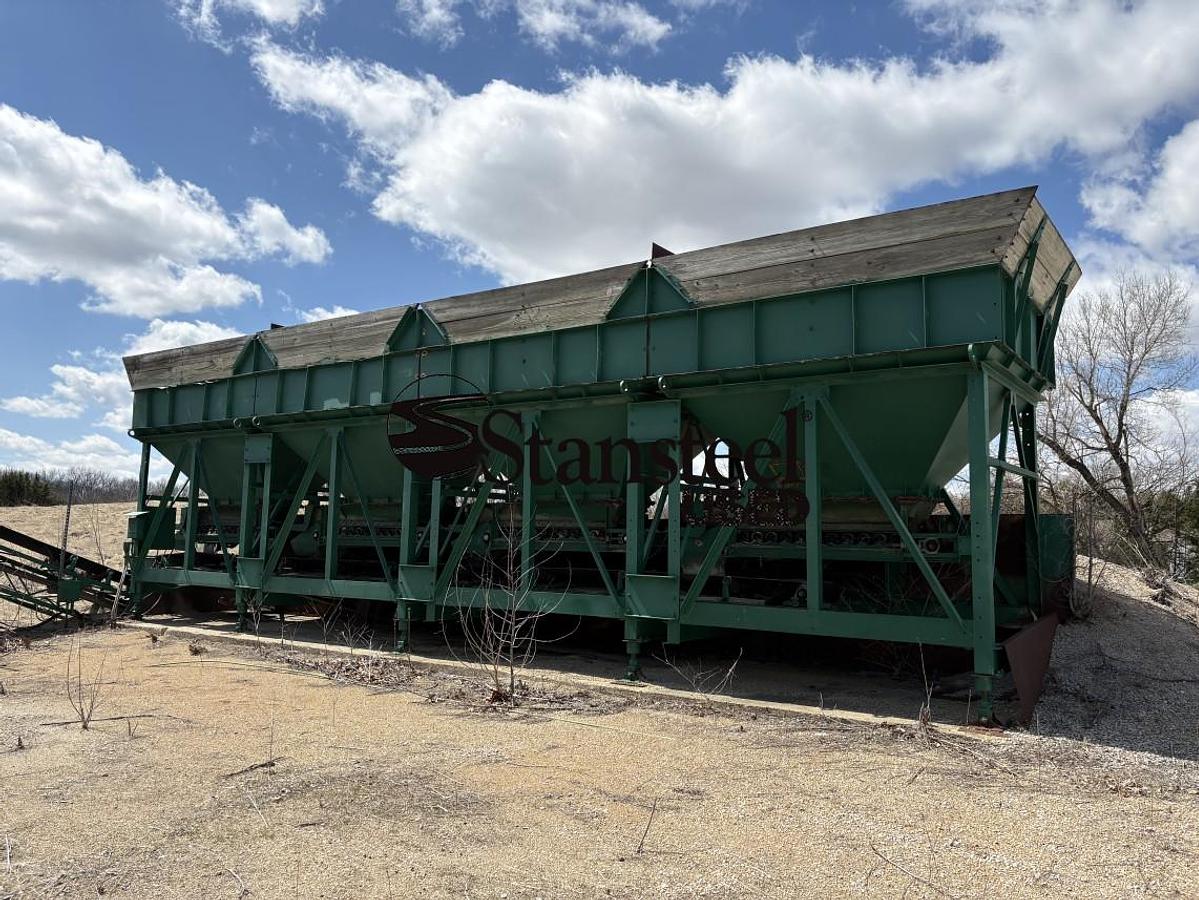

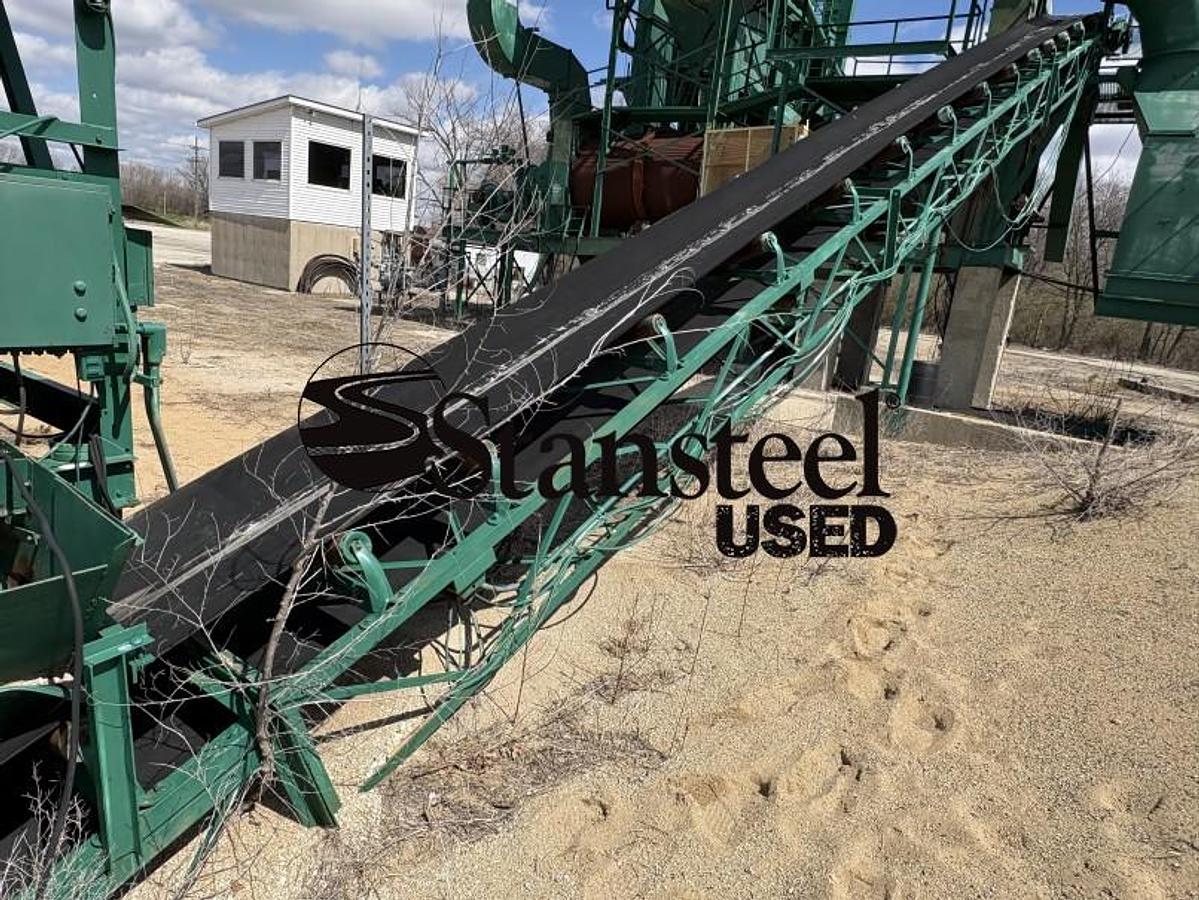

•Stationary Cold Feed System features four (4) bins with nominal 10’ x 8’ top opening with 2’ bin extensions. All four (4) bins have 2 HP drives with reducers. Collecting Conveyor is 24” wide x nominal 38’ long with 5 HP drive. Virgin Feed Conveyor is 30” wide x 59’ long.

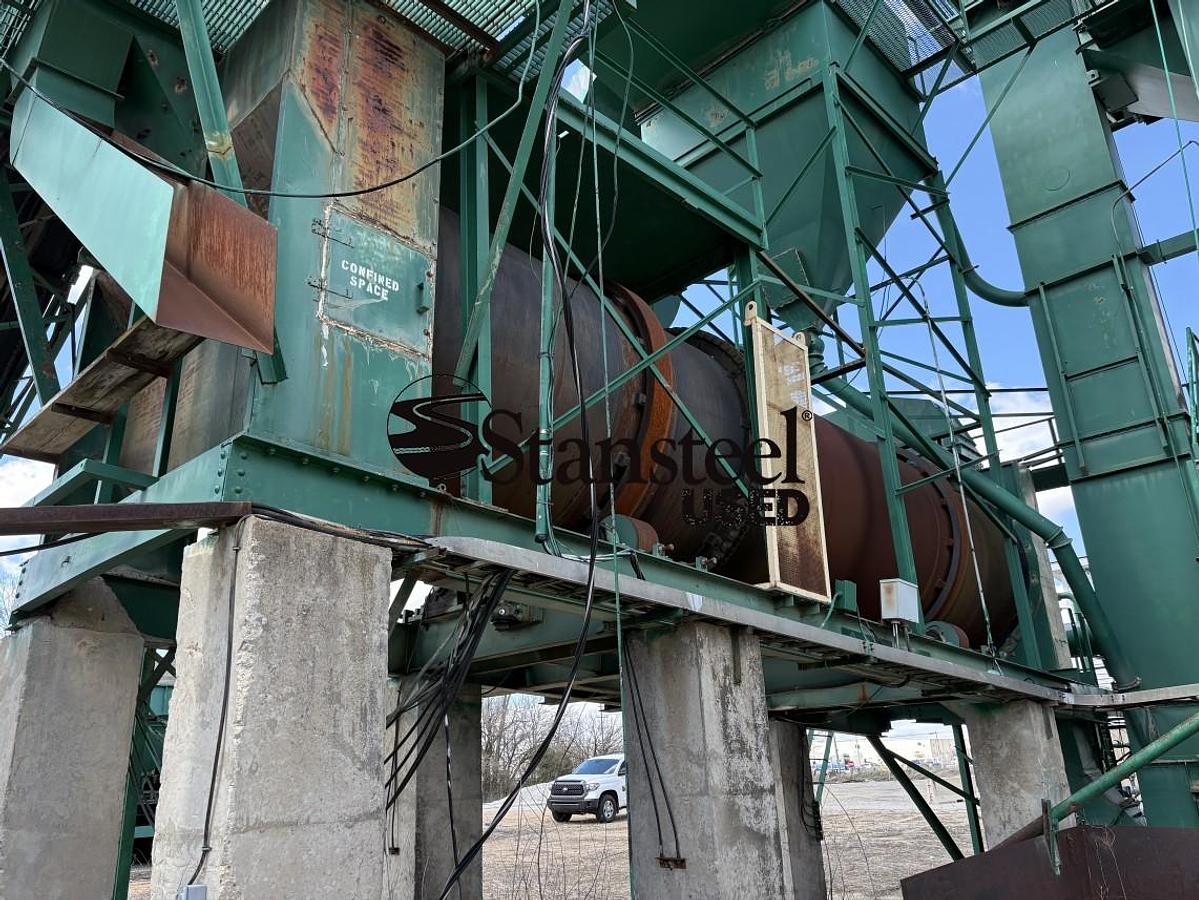

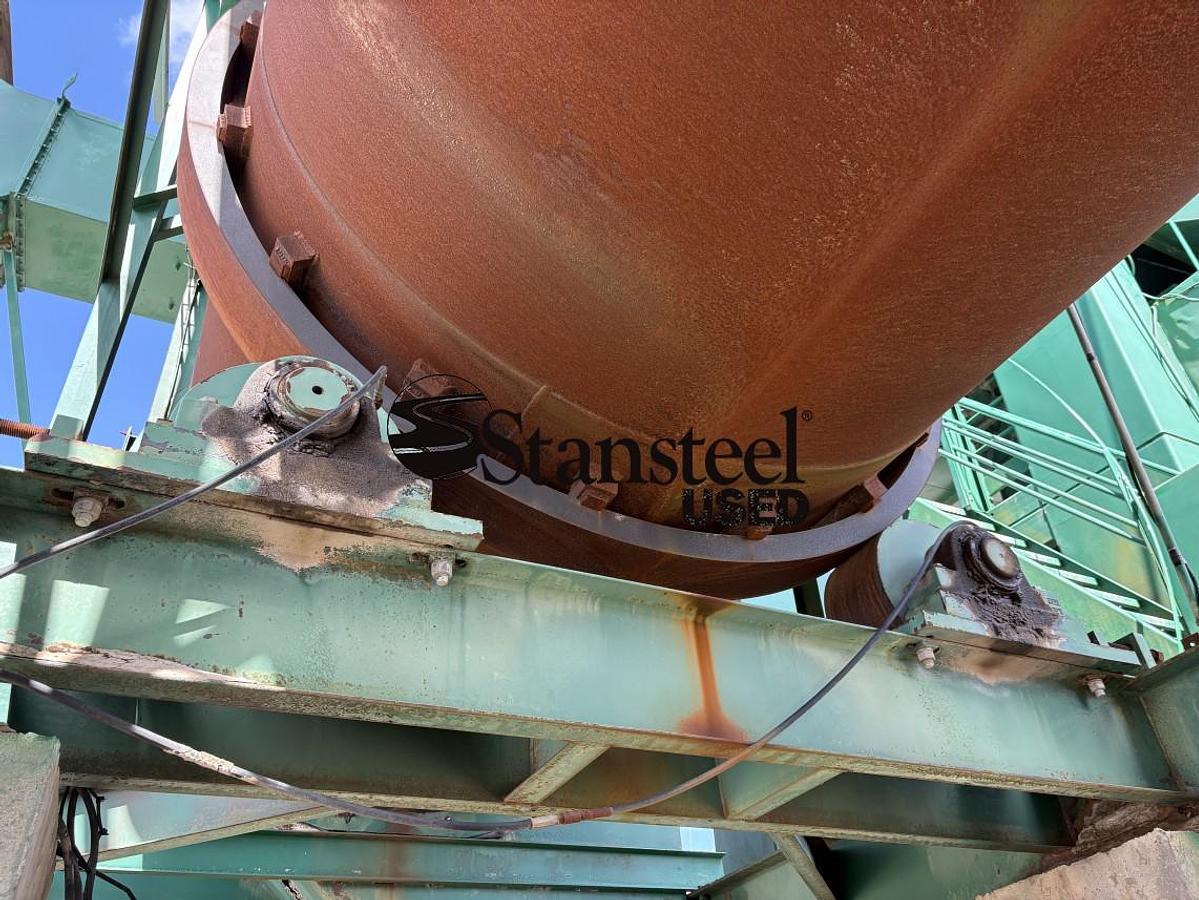

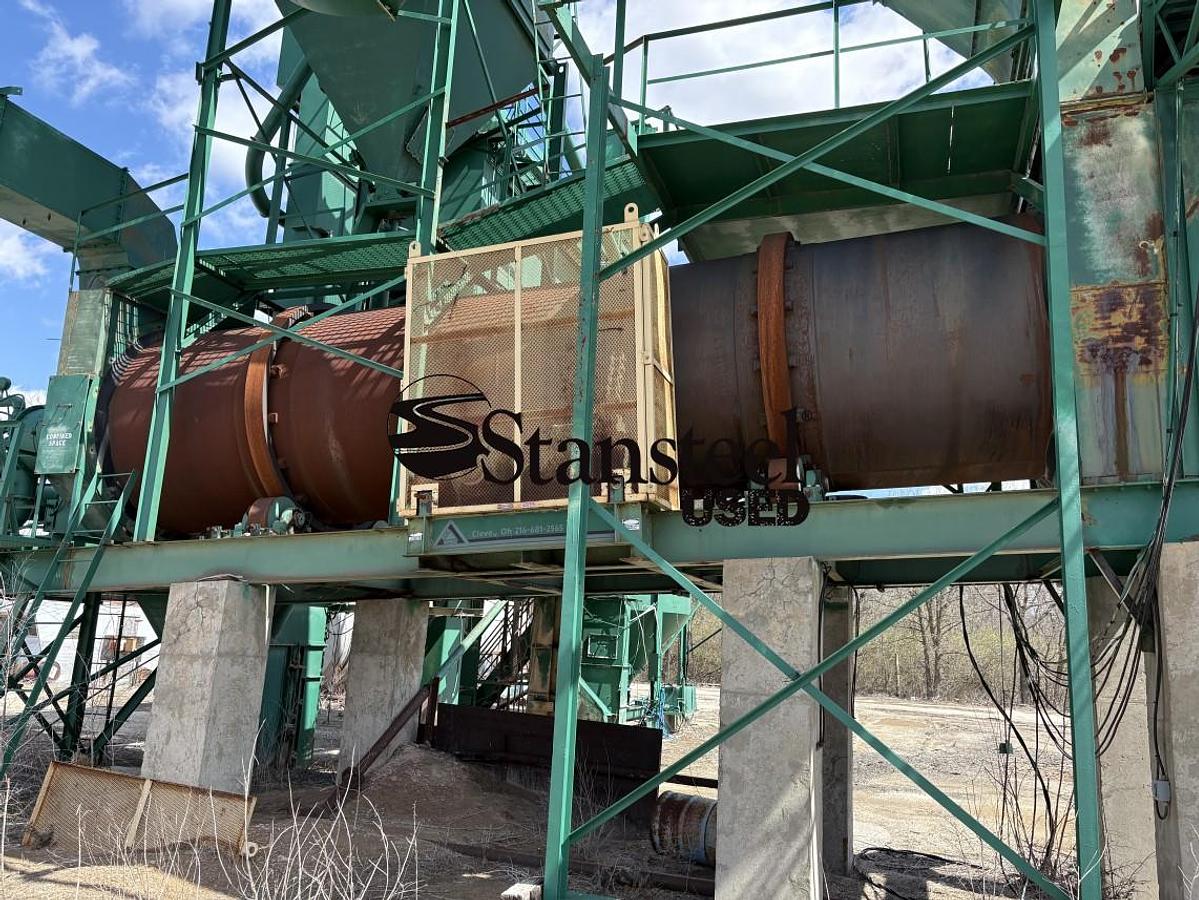

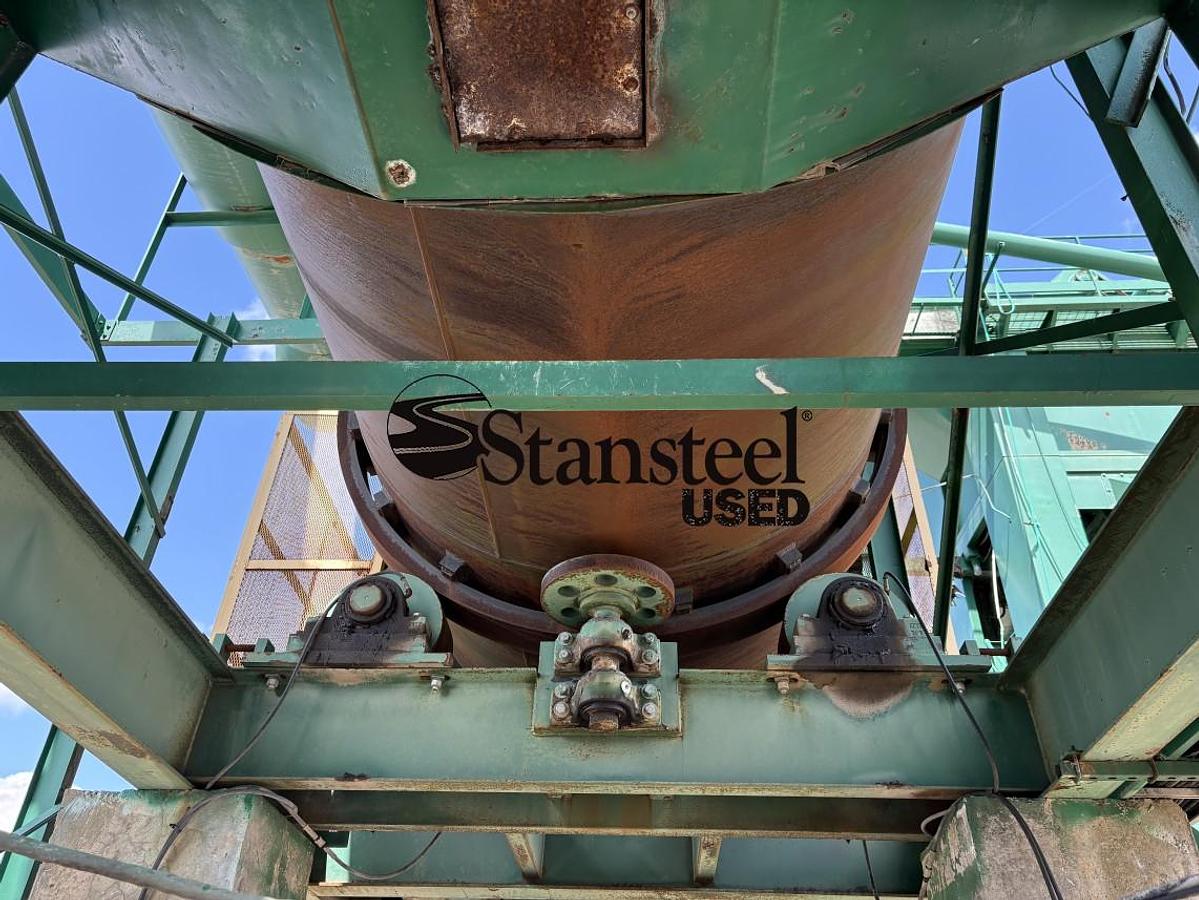

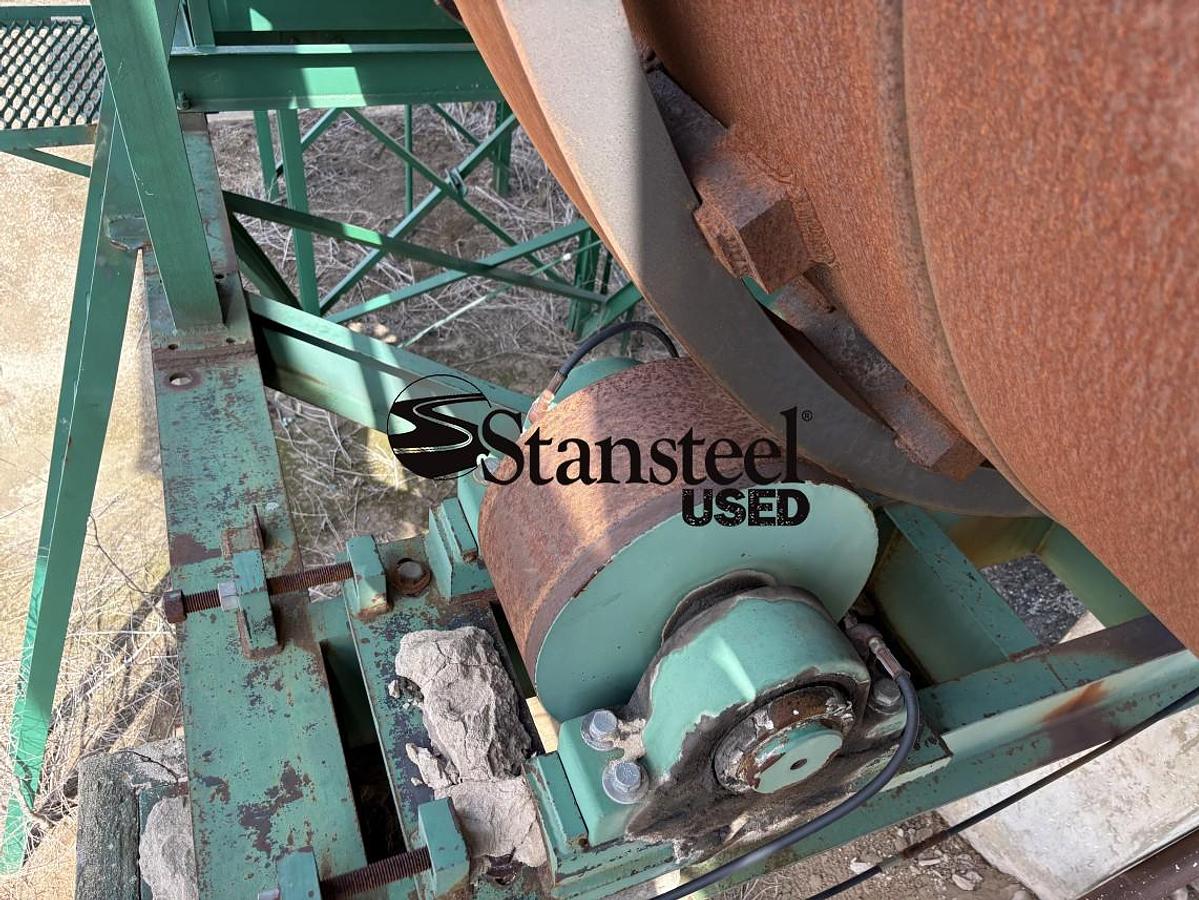

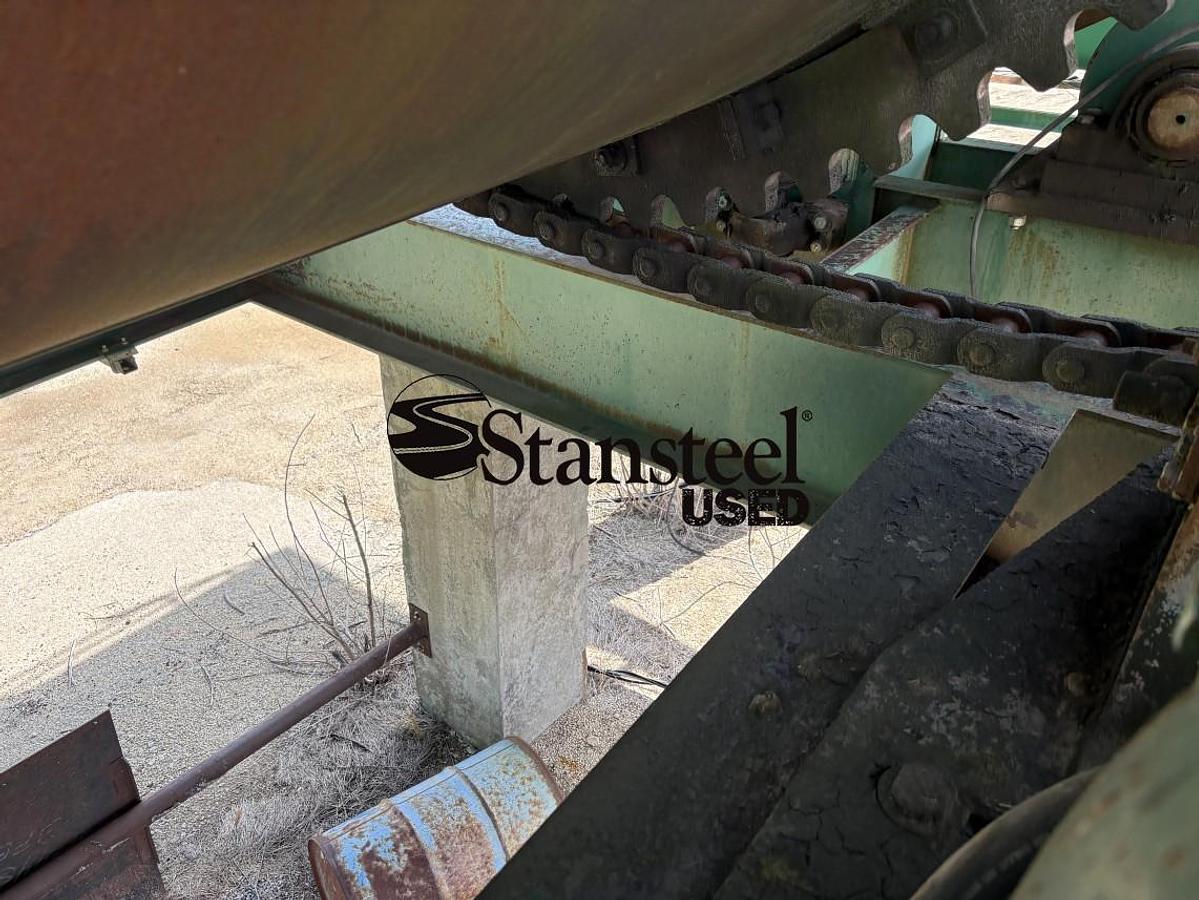

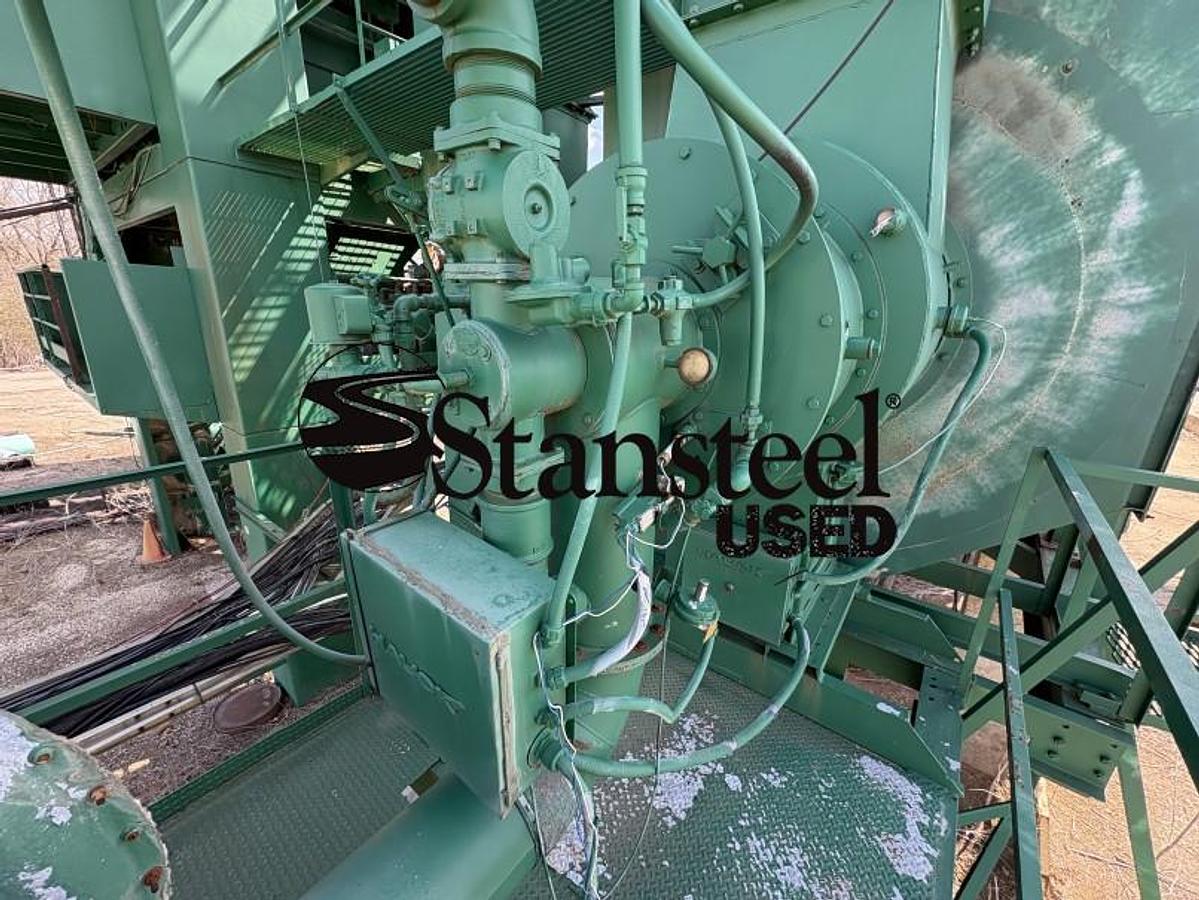

•Stationary Counterflow Dryer. The dryer is nominal 7’-4” diameter x 30’ long and equipped with gravity chute. The unit is wrap chain driven with a 60 hp drive. Hauck burner with 25 HP blower that is currently running on natural gas.

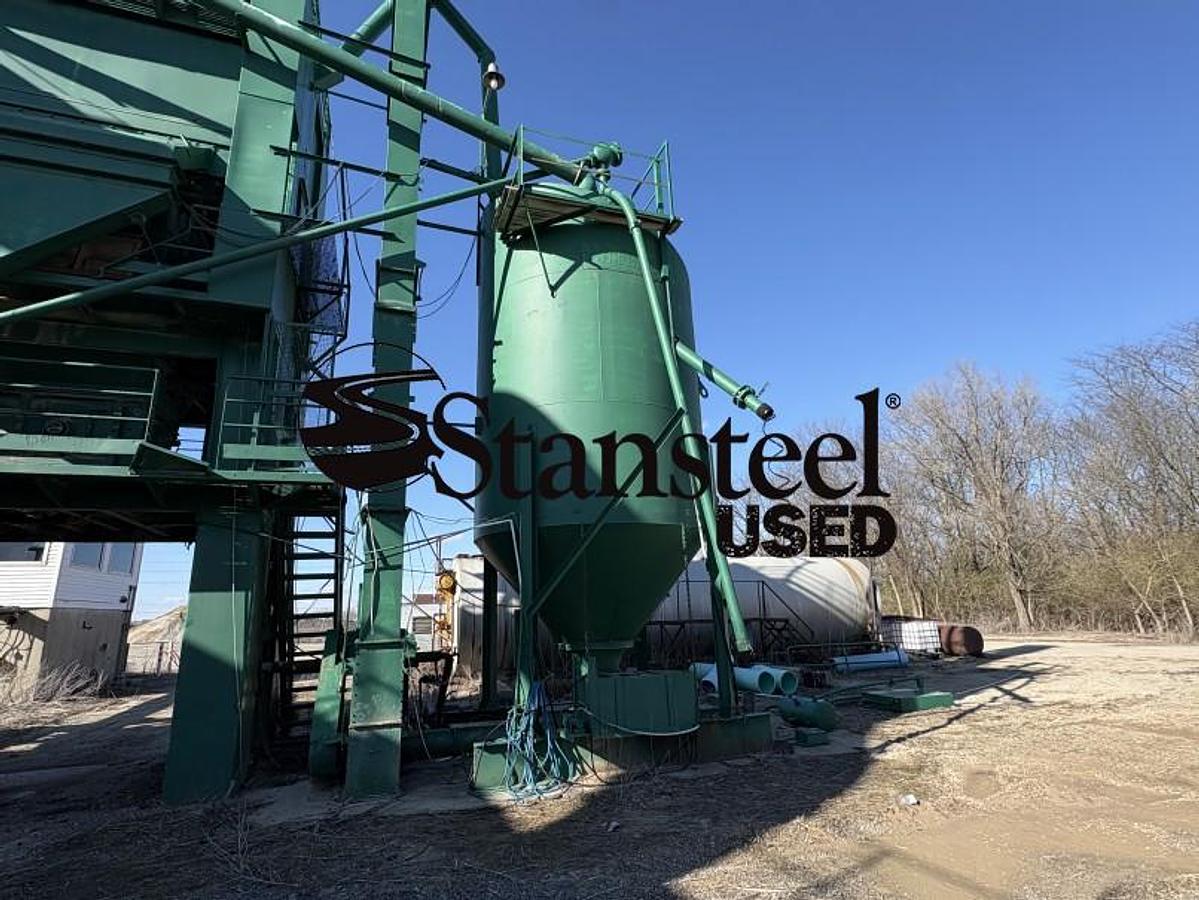

•Dust System features nominal 475BBL aerated dust silo with auger feeding dust elevator.

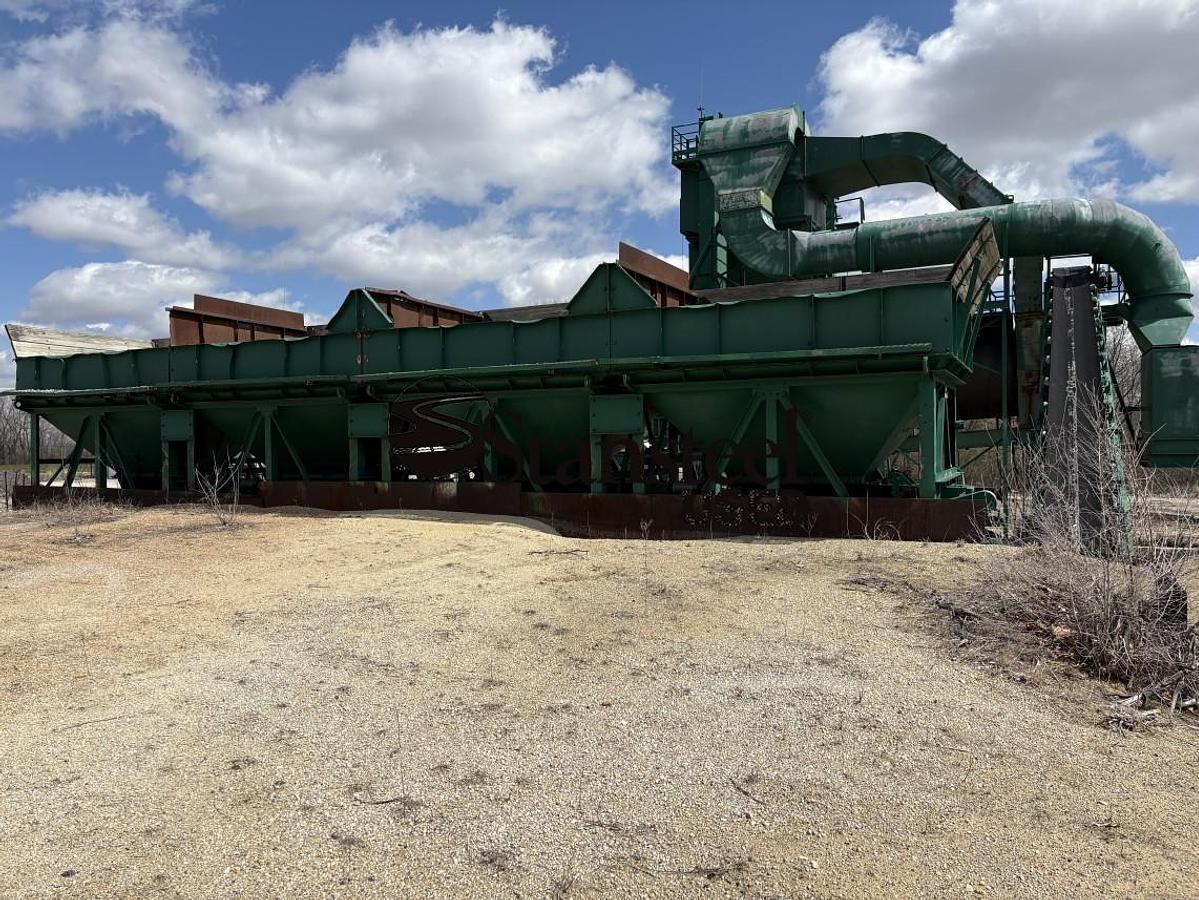

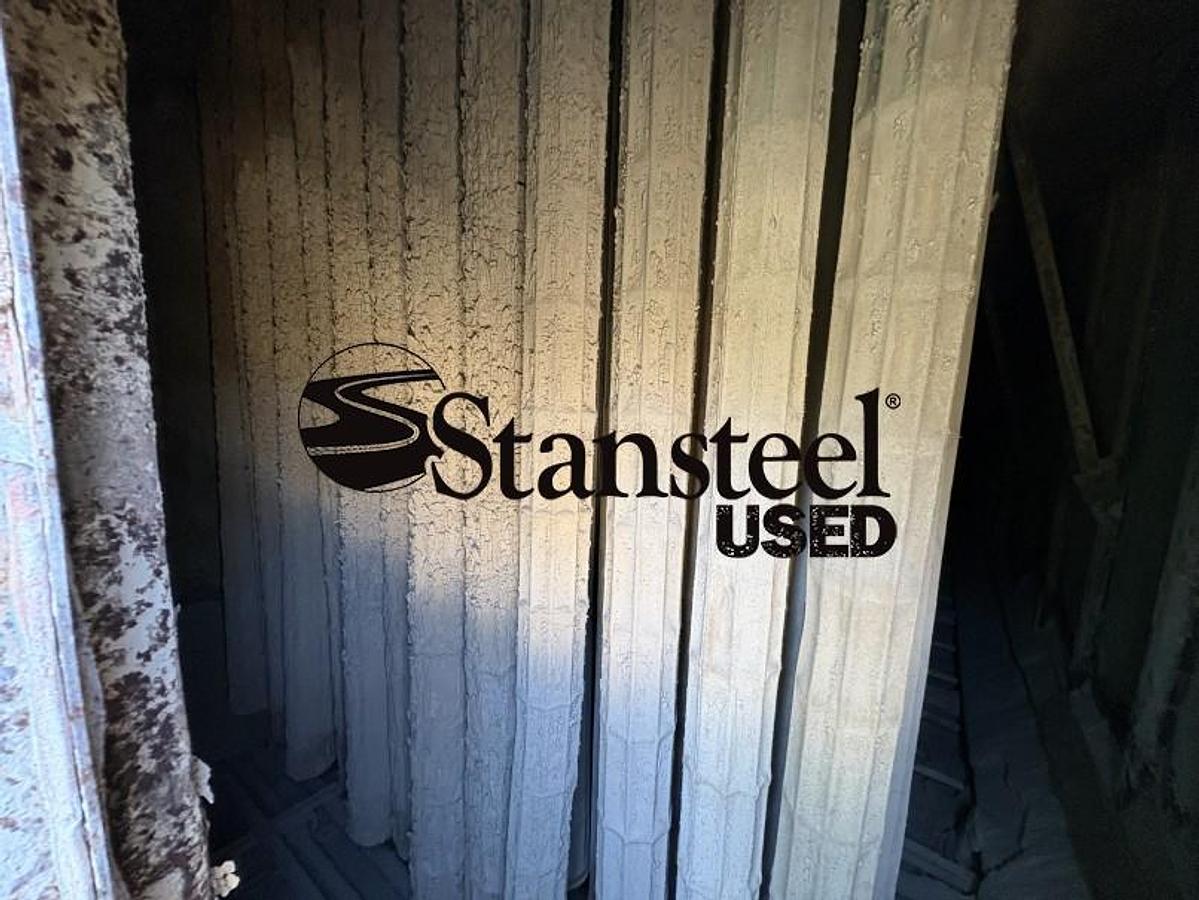

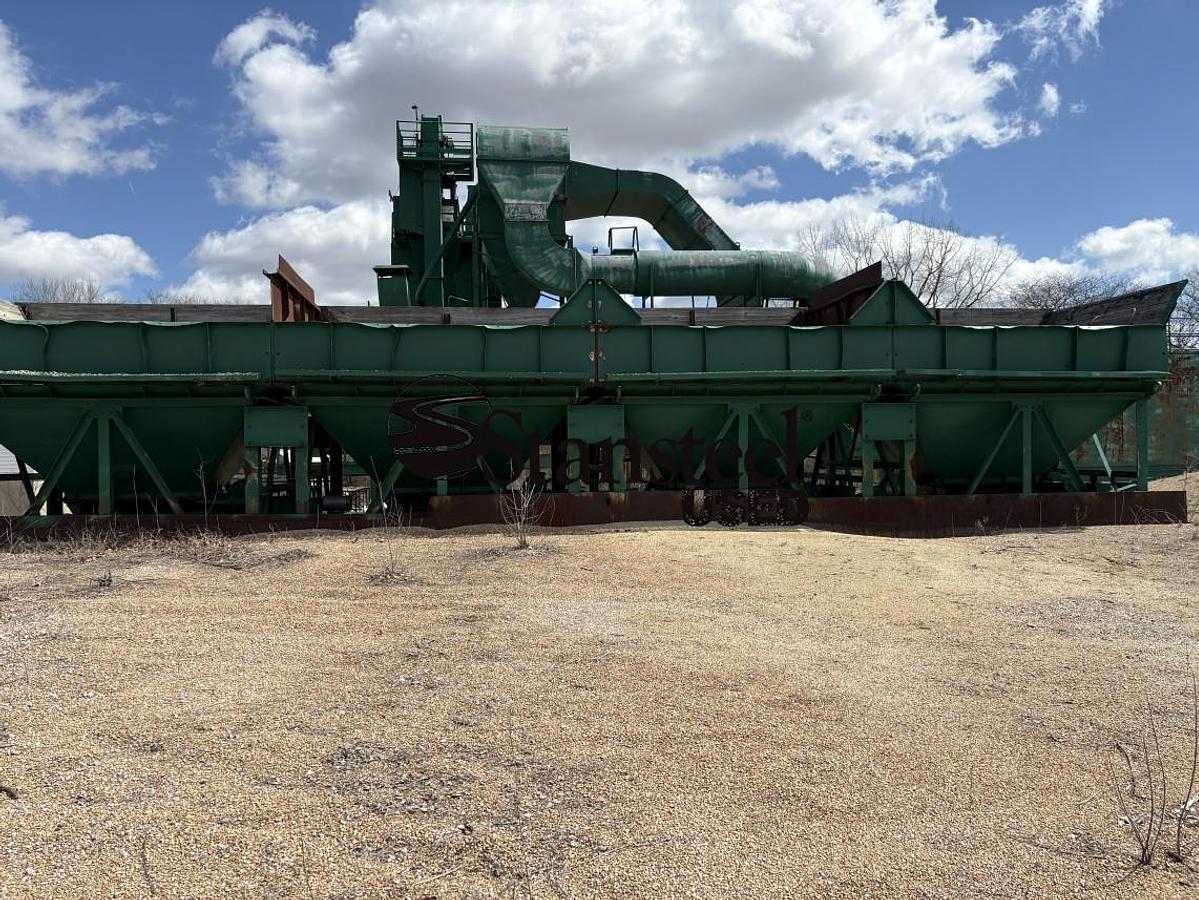

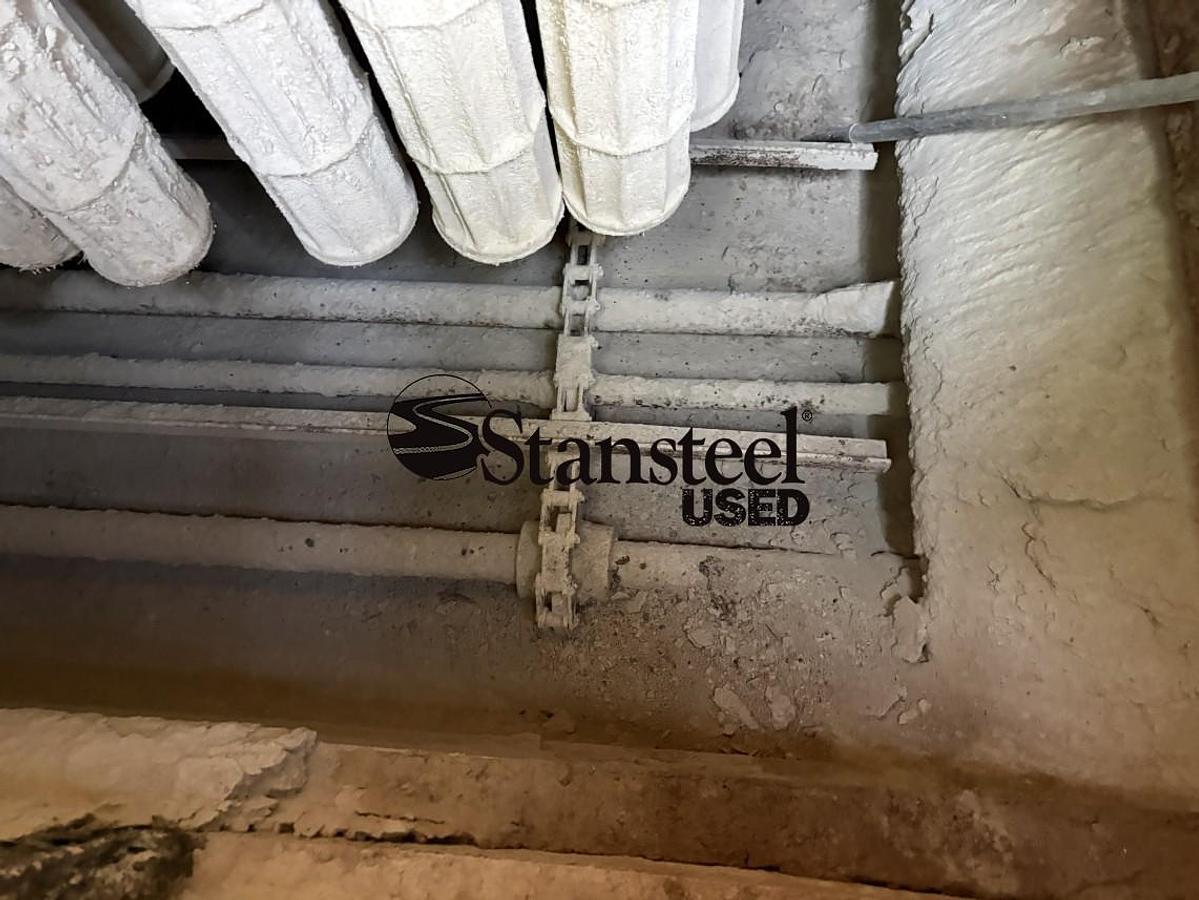

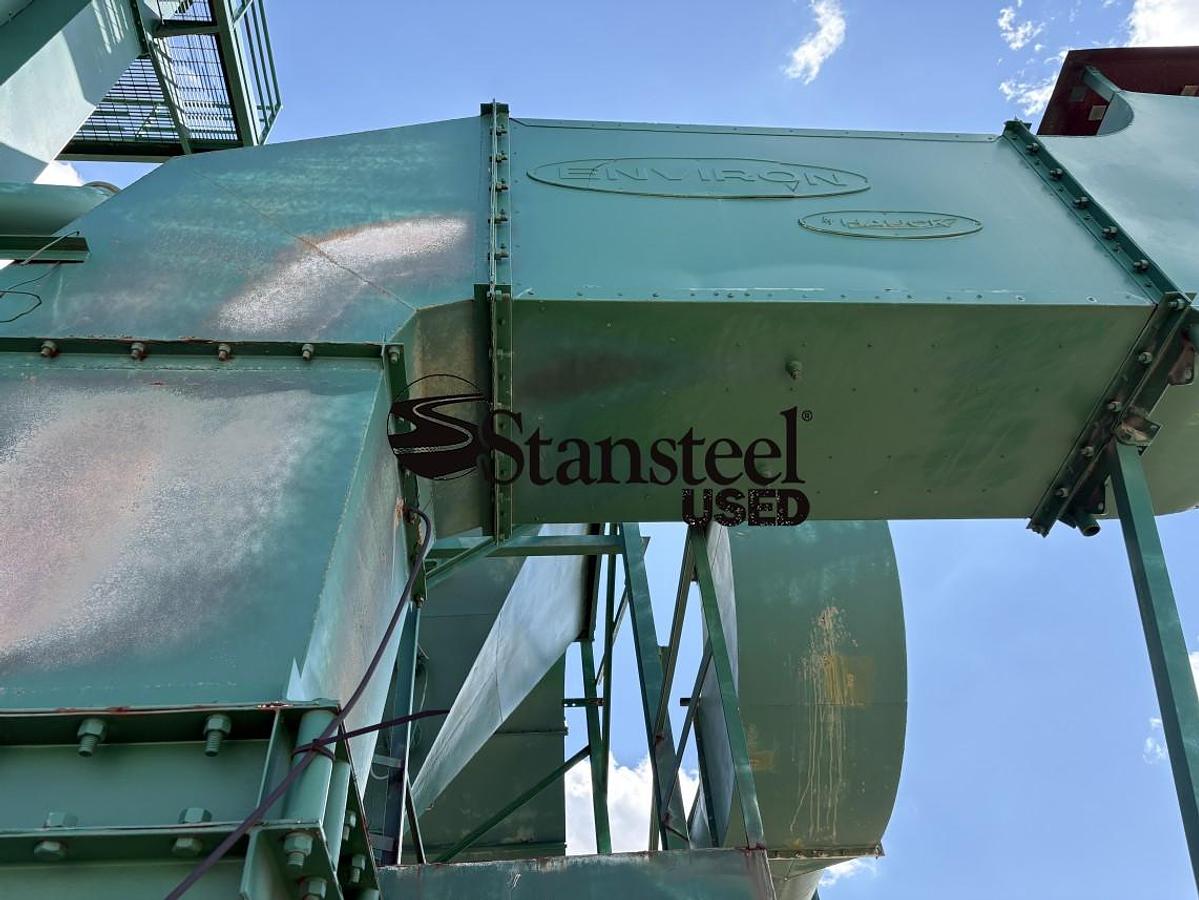

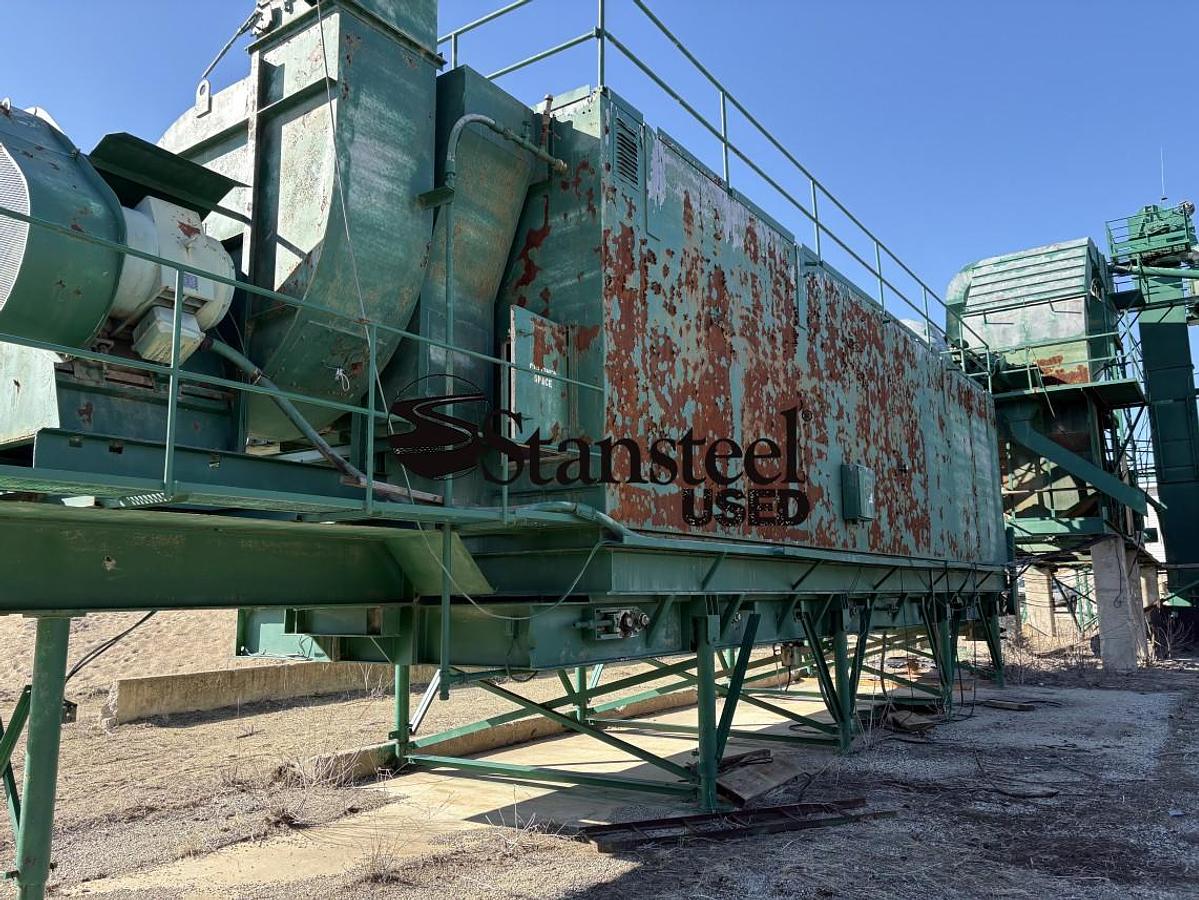

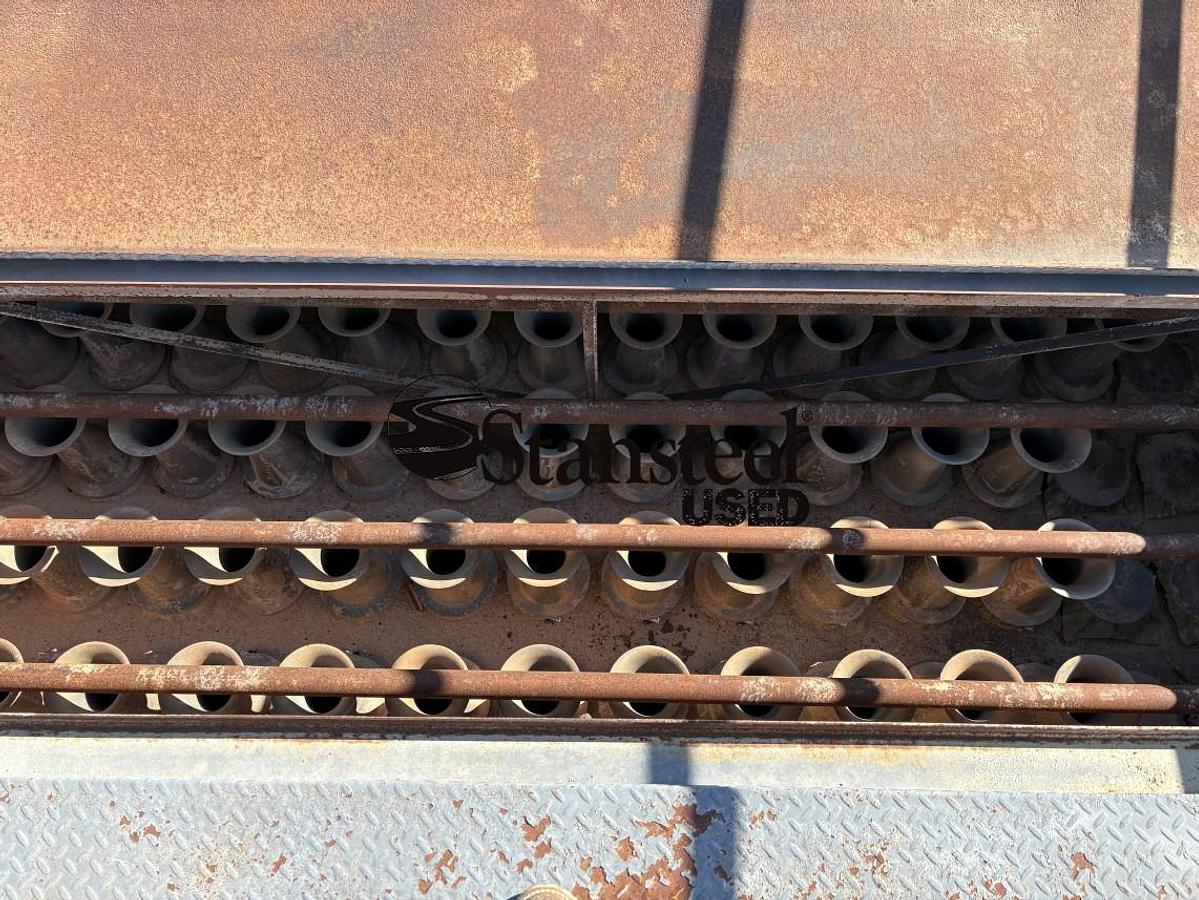

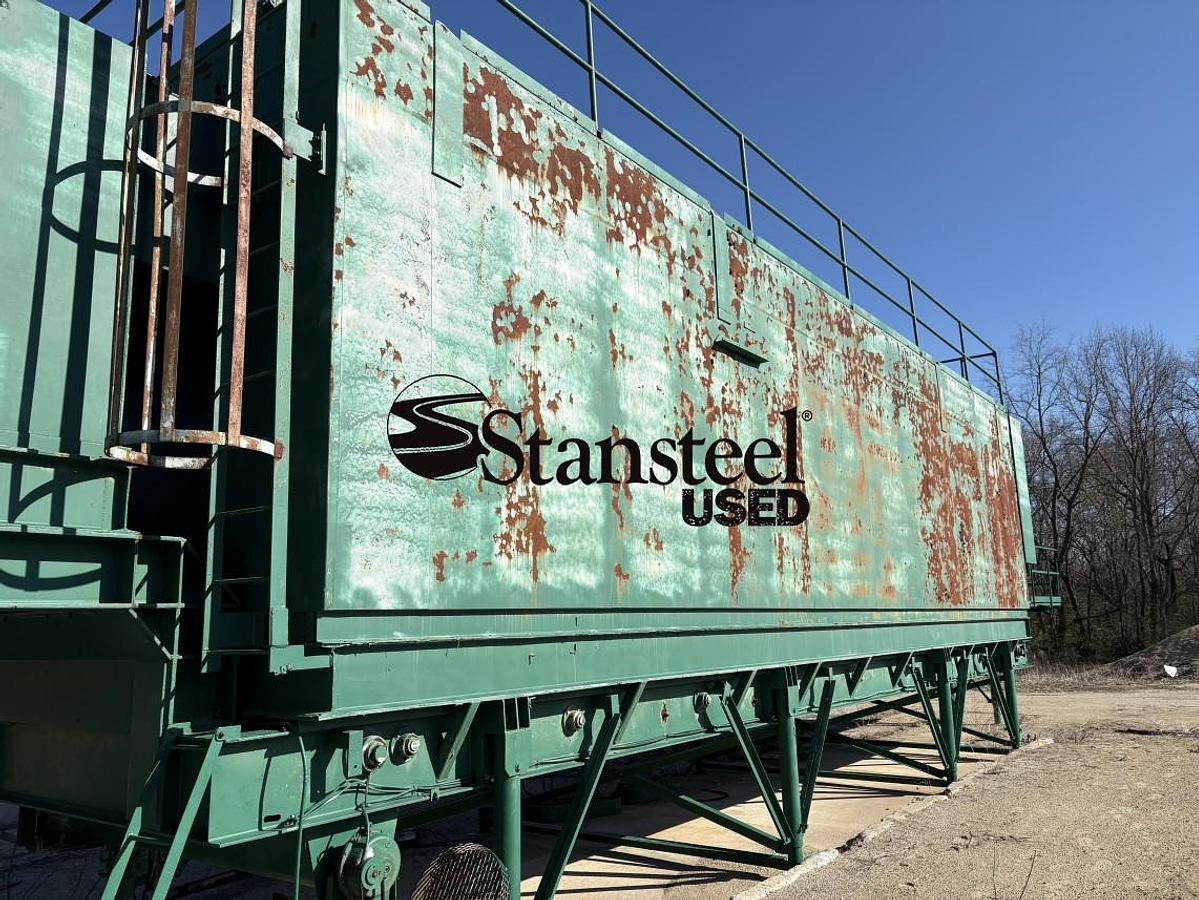

•Nominal 60,000 CFM Pulsejet Baghouse equipped with bottom drag slat and removal auger. Stationary Primary Collector is a vertical knockout box with dust returning to the bucket elevator.

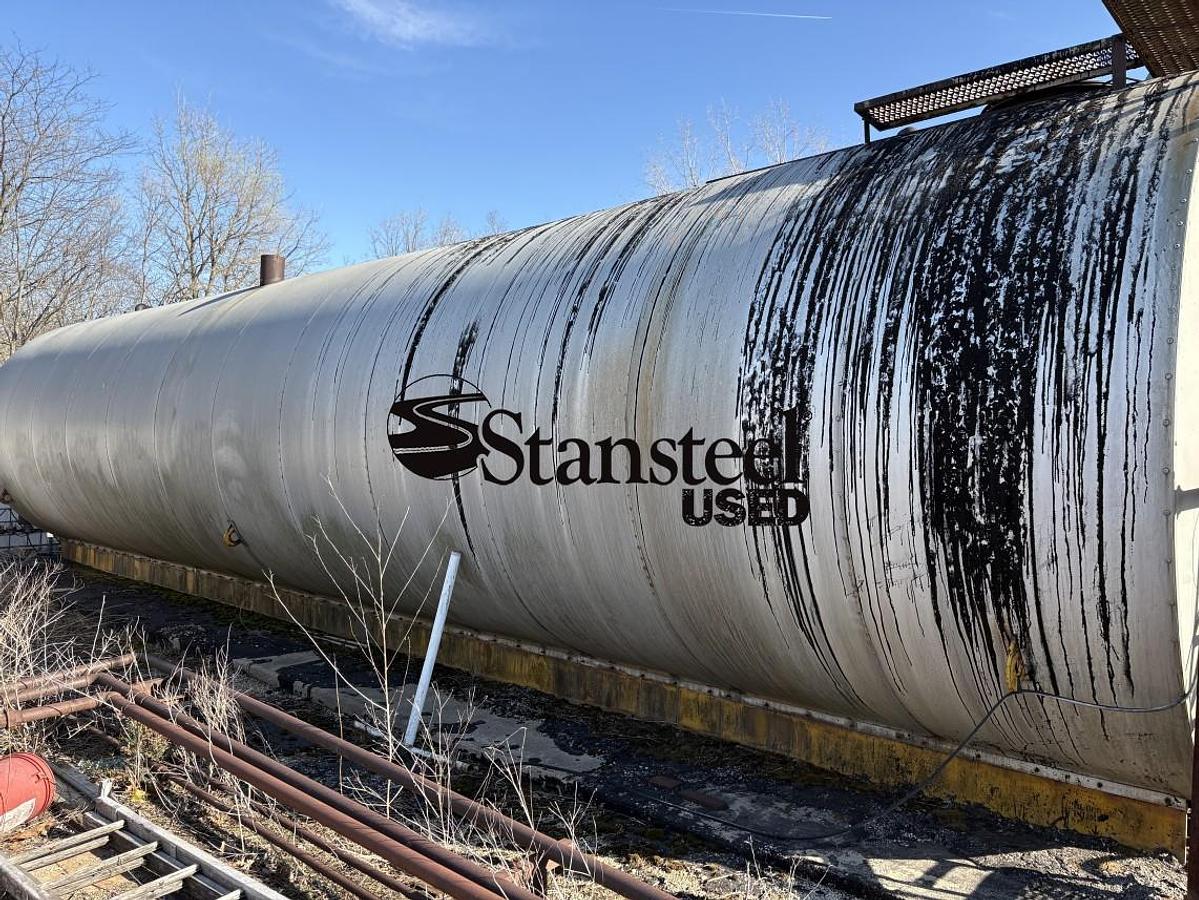

•AC System includes one (1) 25,000 gallon direct fired tank.

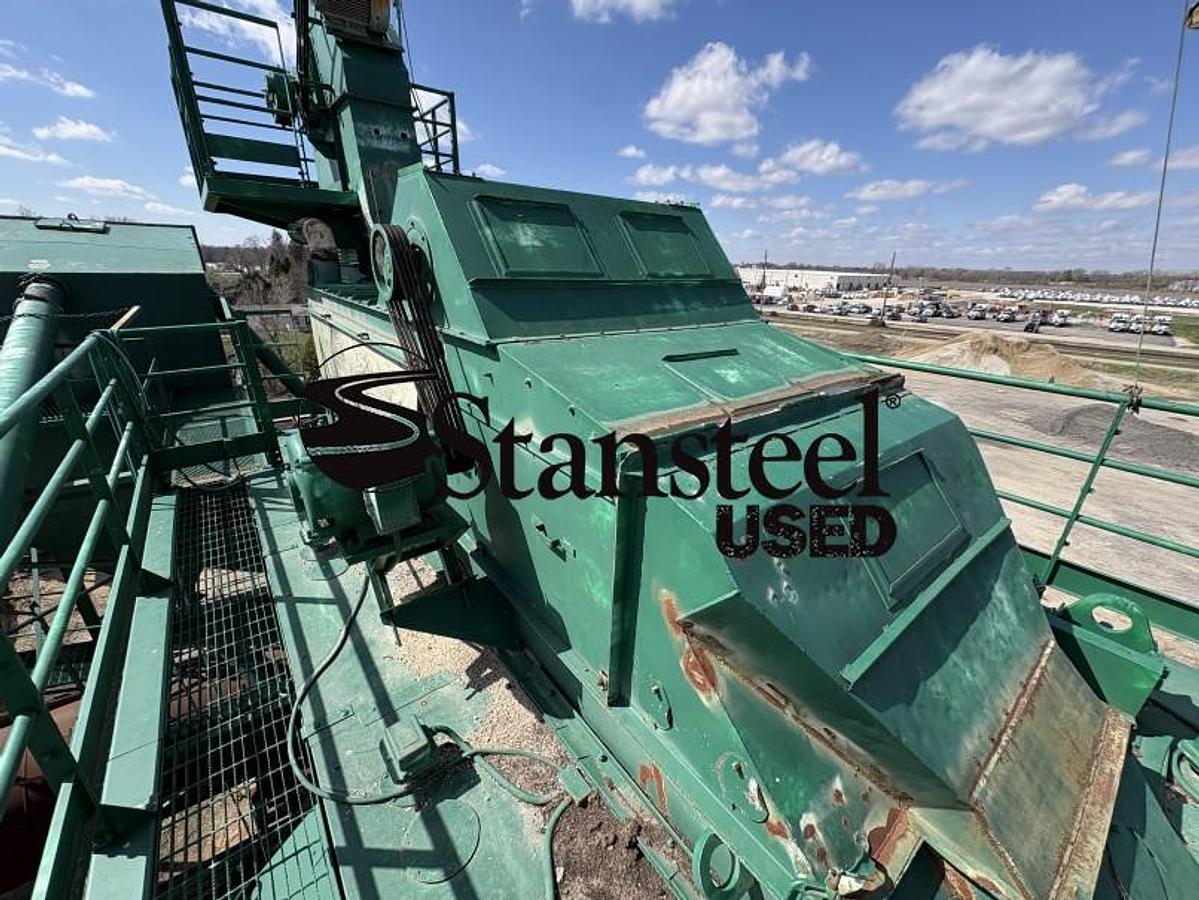

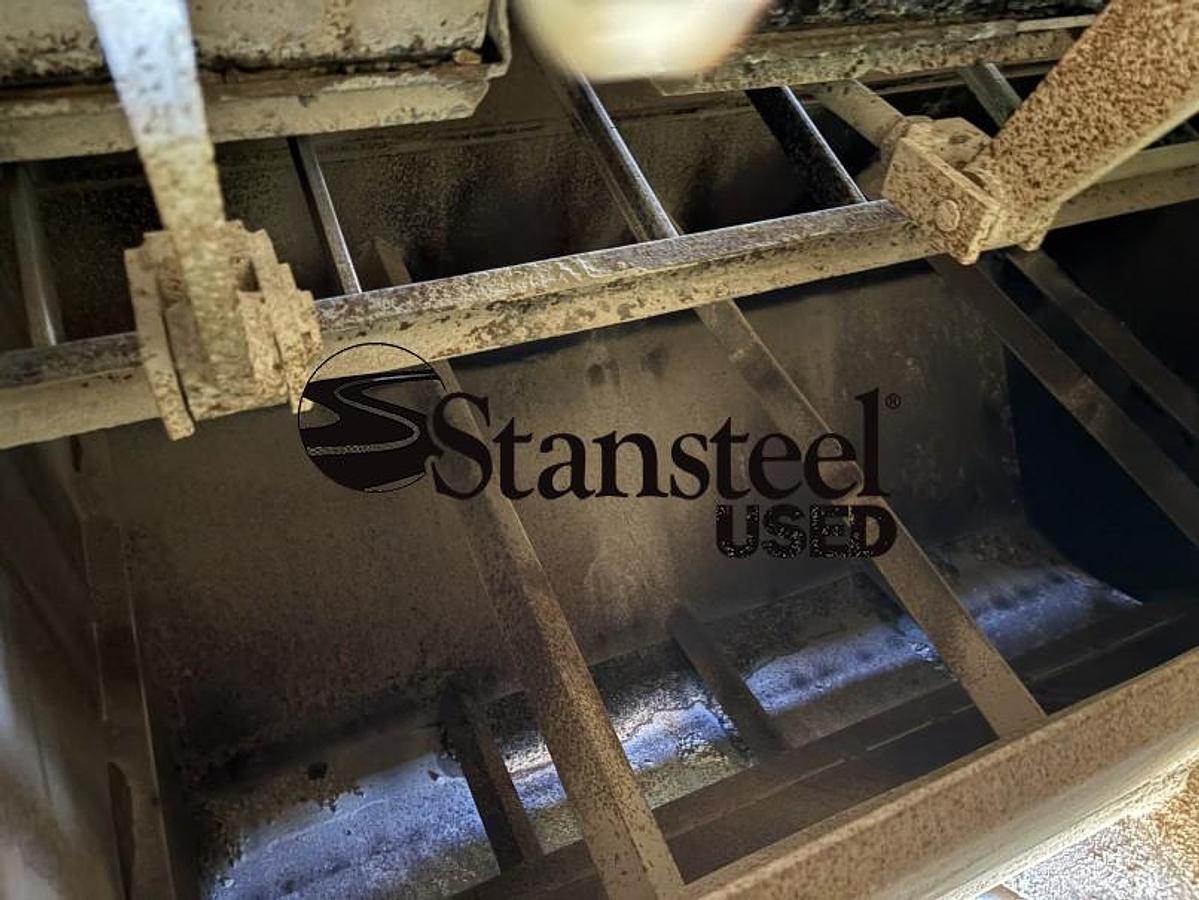

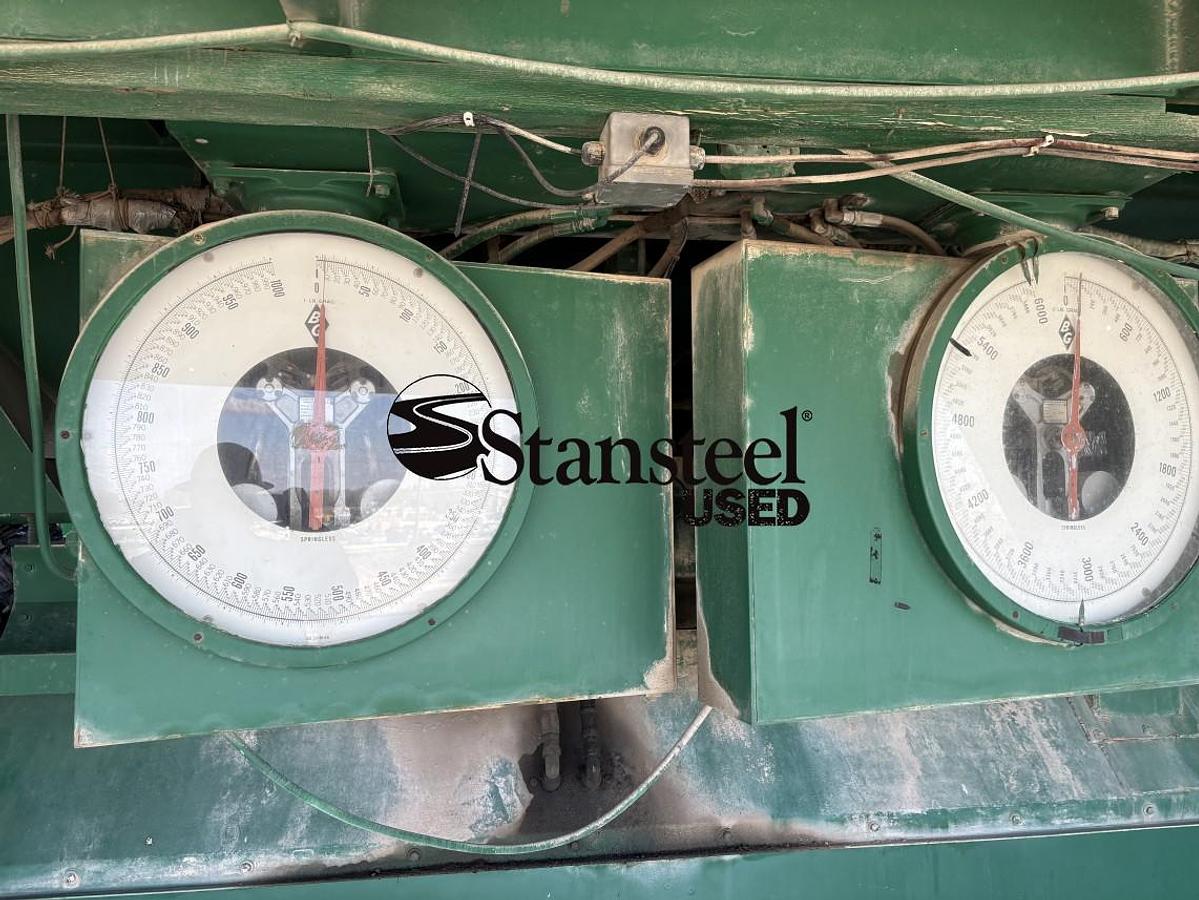

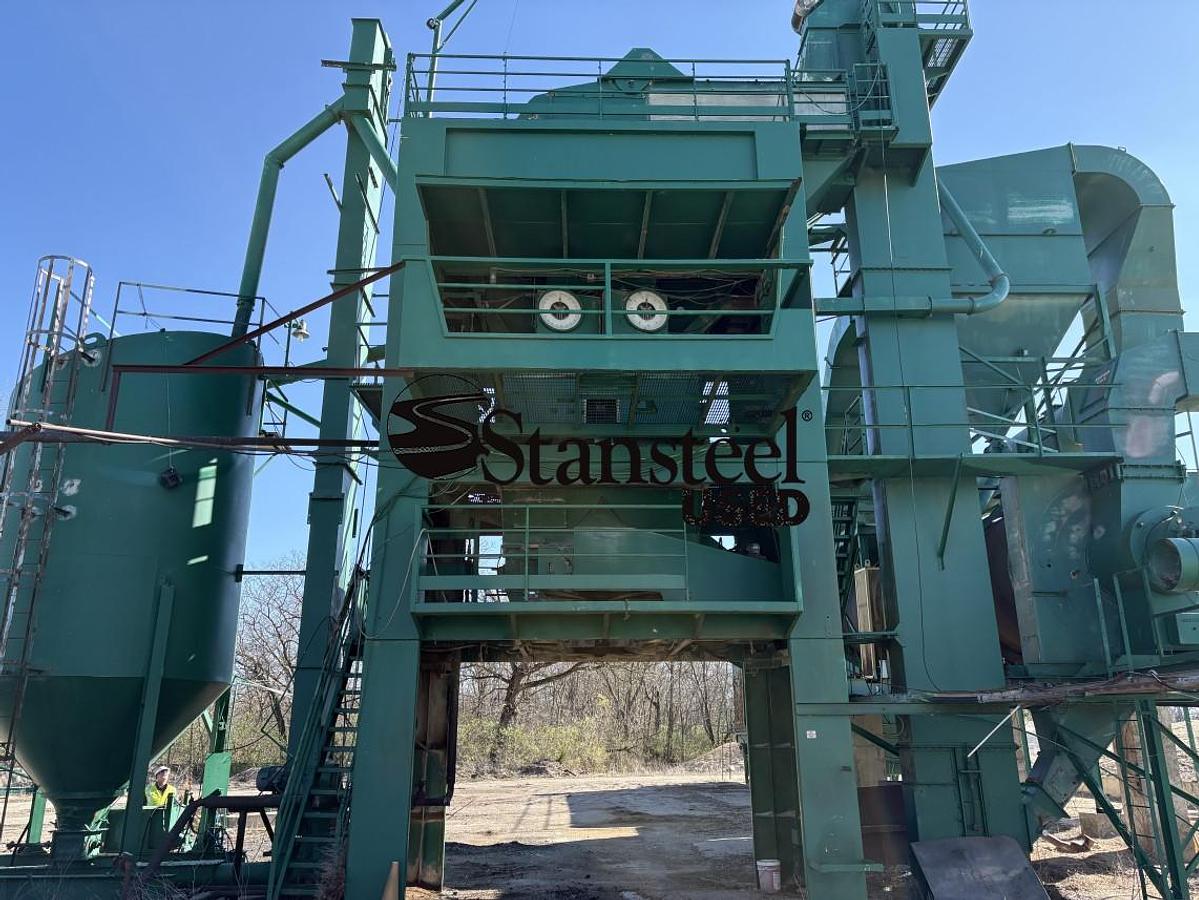

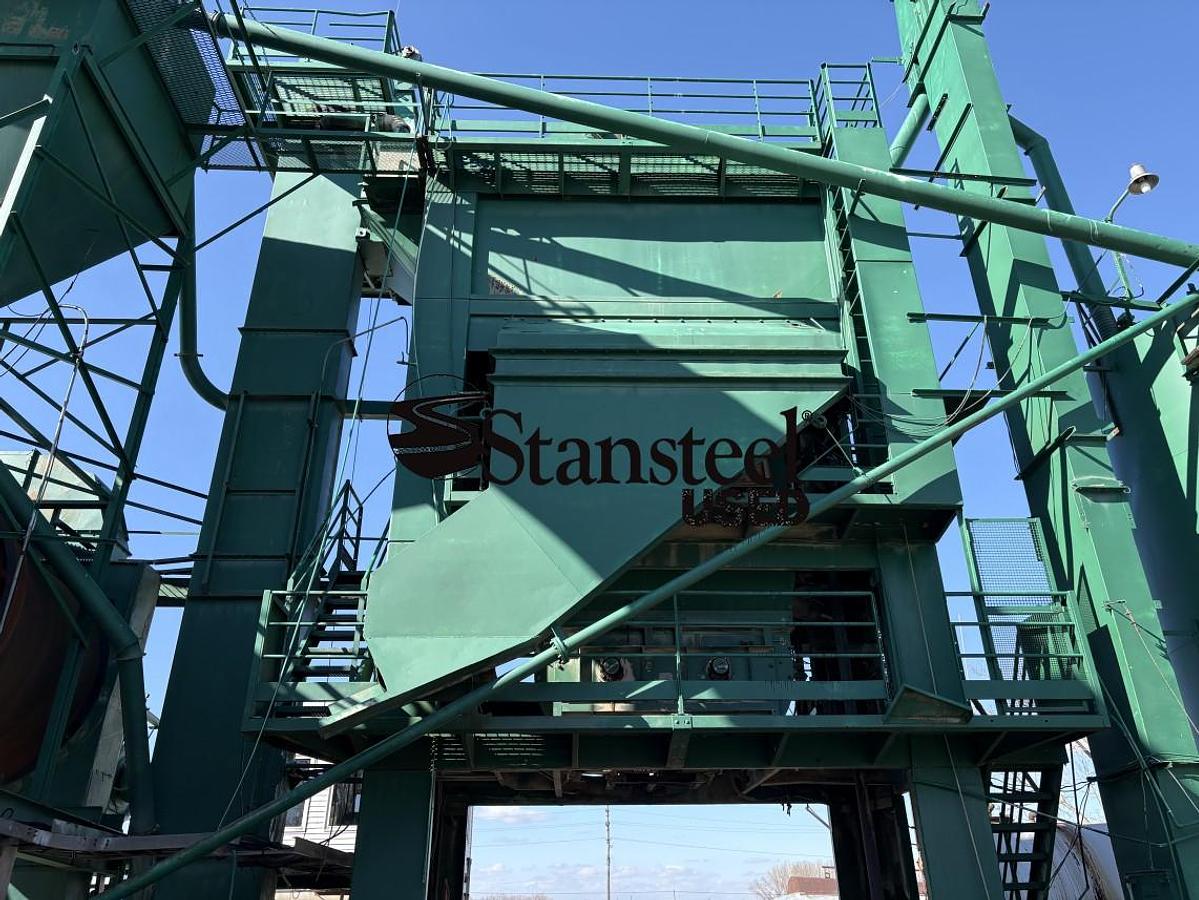

•Barber Greene 5,500 # Batch Tower. Horizontal screen deck measuring nominal 5’ wide x 12’ long with one (1) 15 HP motor. Equipped with four (4) hot bins including high and low-level indicators. Aggregate weigh hopper has load cells. Hot oil heated AC weigh bucket includes load cells and 2.5 ton pugmill.

•Seller states plant has WEM Control Systems
