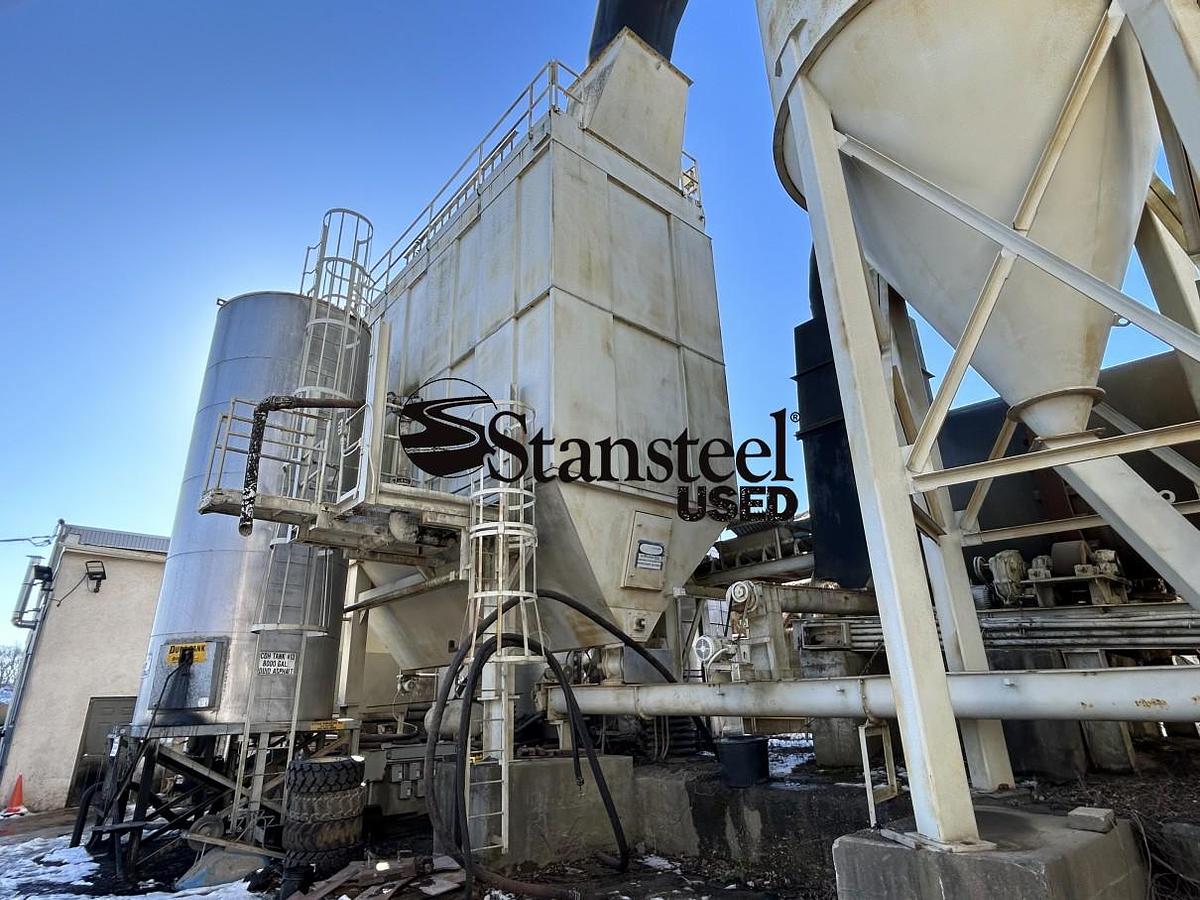

Cedarapids / Standard Havens 52,000 CFM Stationary Baghouse with Cyclone

BAGHOUSE DESCRIPTION:

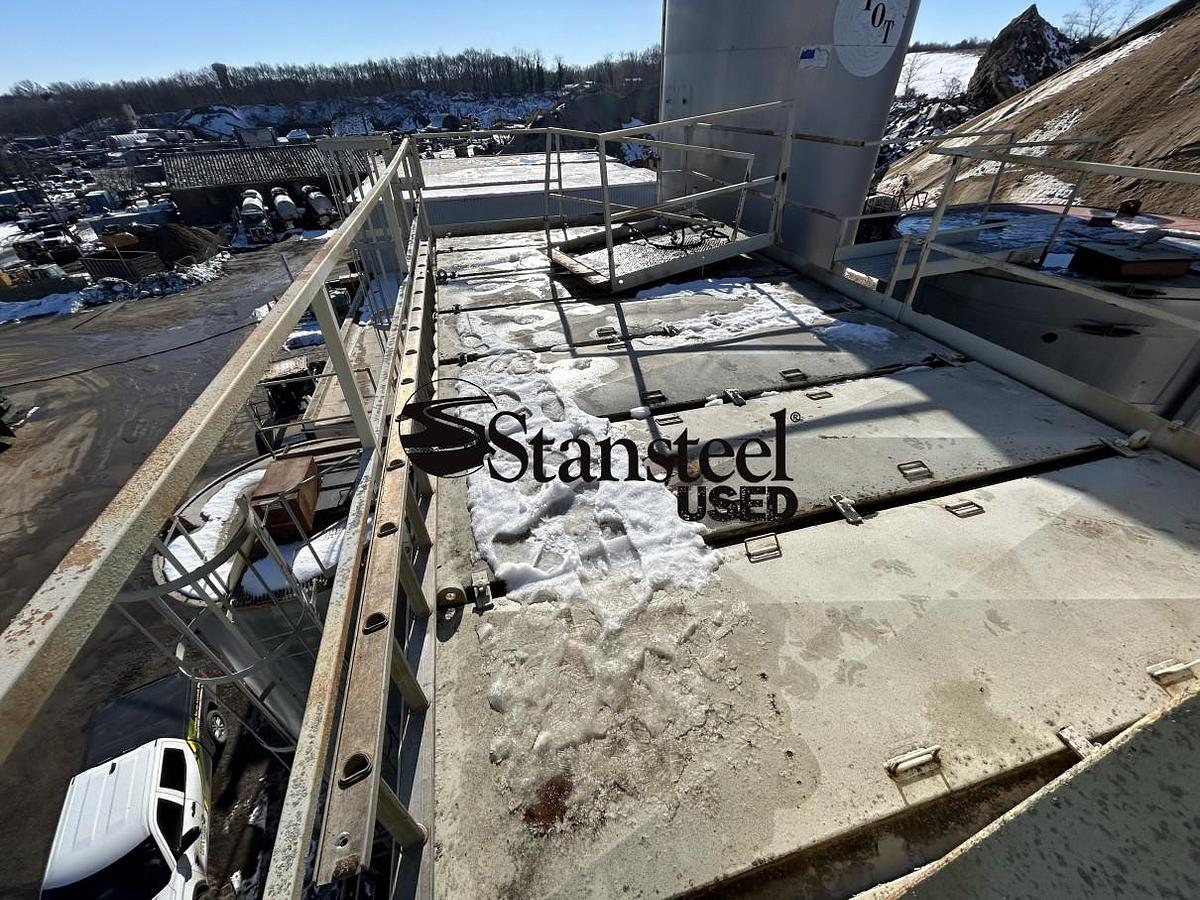

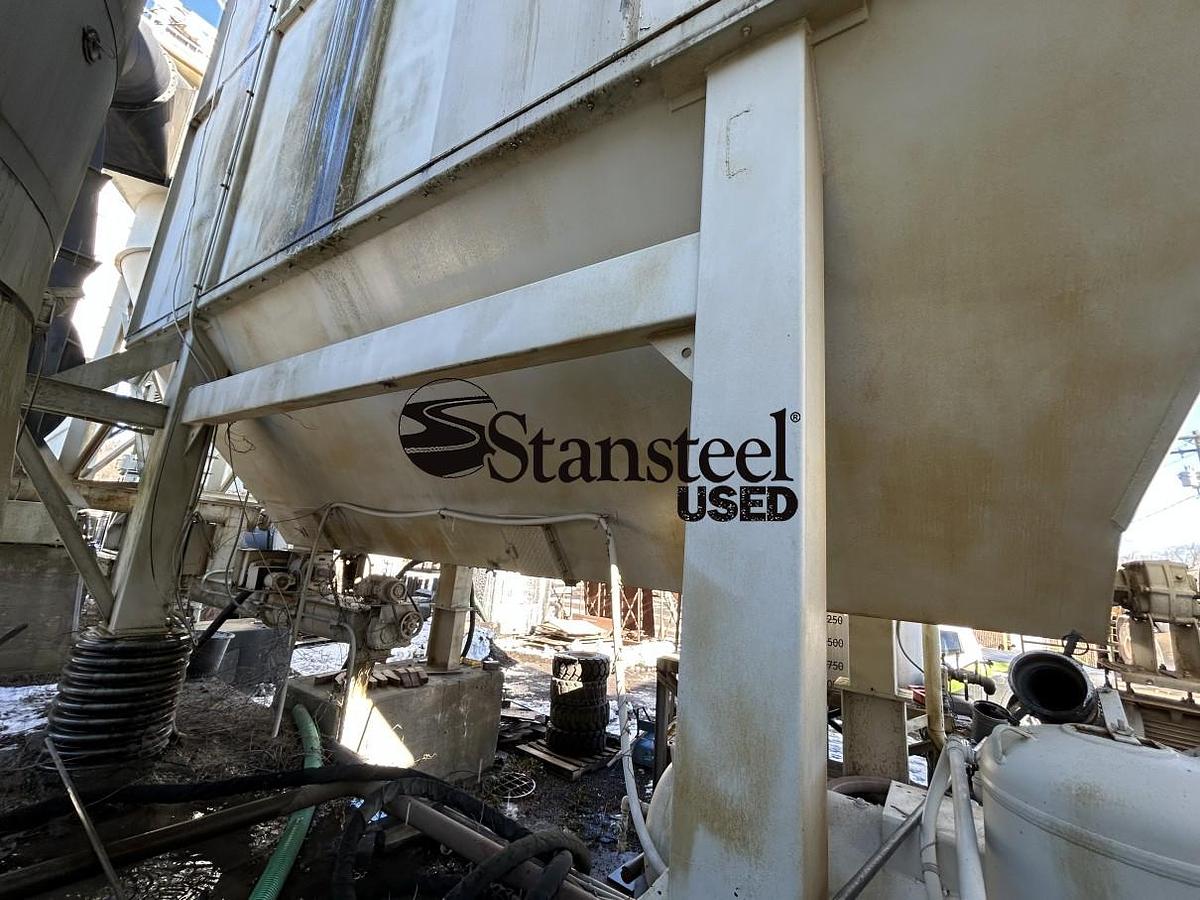

•Cedarapids / Standard Havens Stationary Baghouse

•Factory Rated up to a nominal 52,000 ACFM @5.5:1 ratio

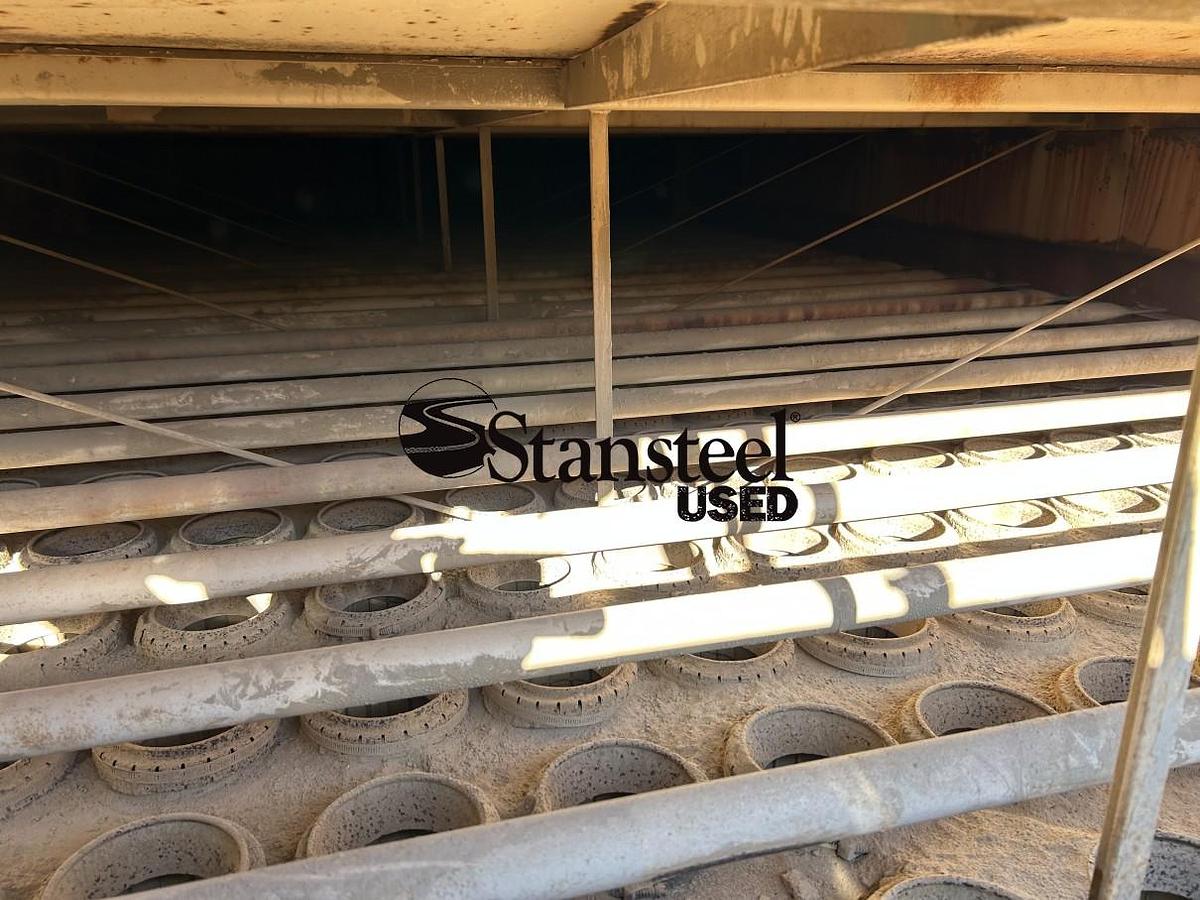

•432 top load bags / over 9,700 sq ft of cloth

•Dust removal via single (1) auger

•Ductwork included

CYCLONE DESCRIPTION:

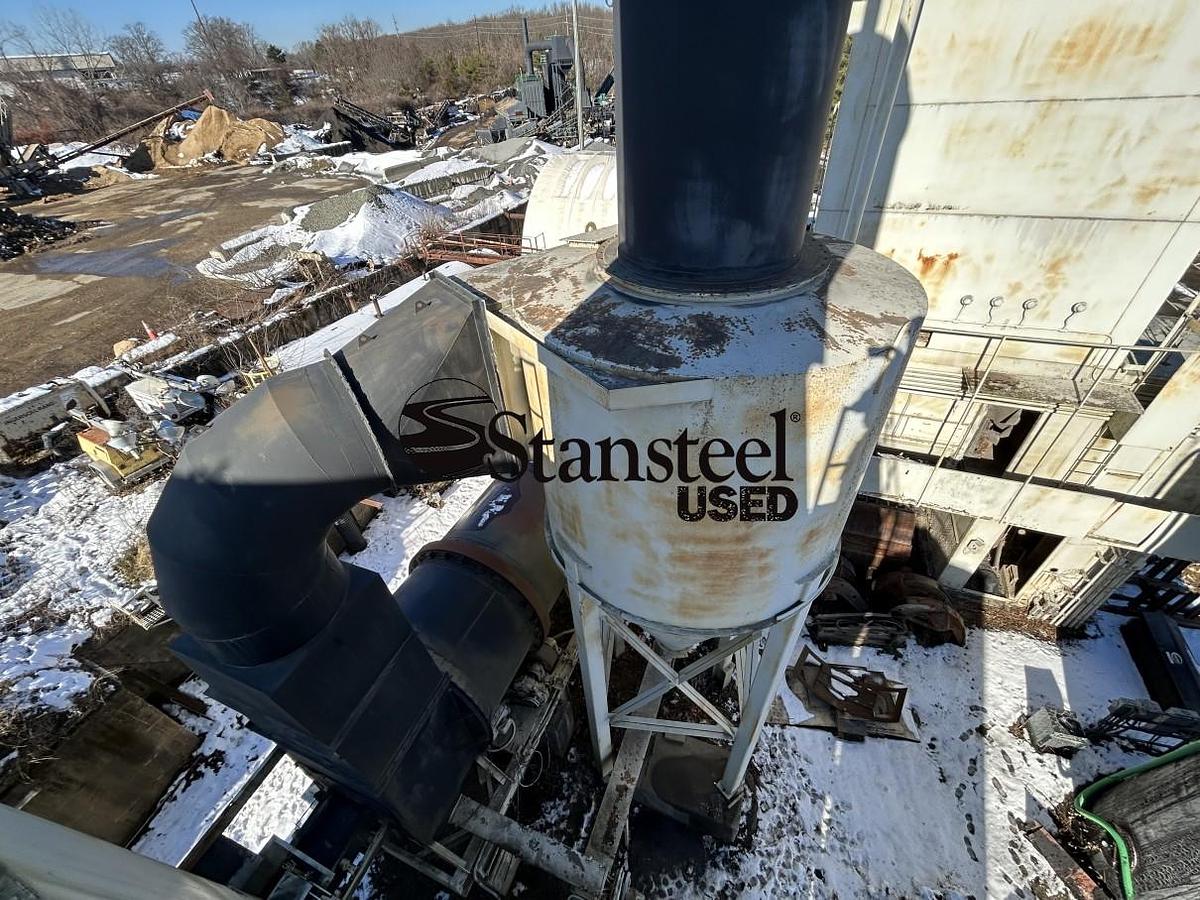

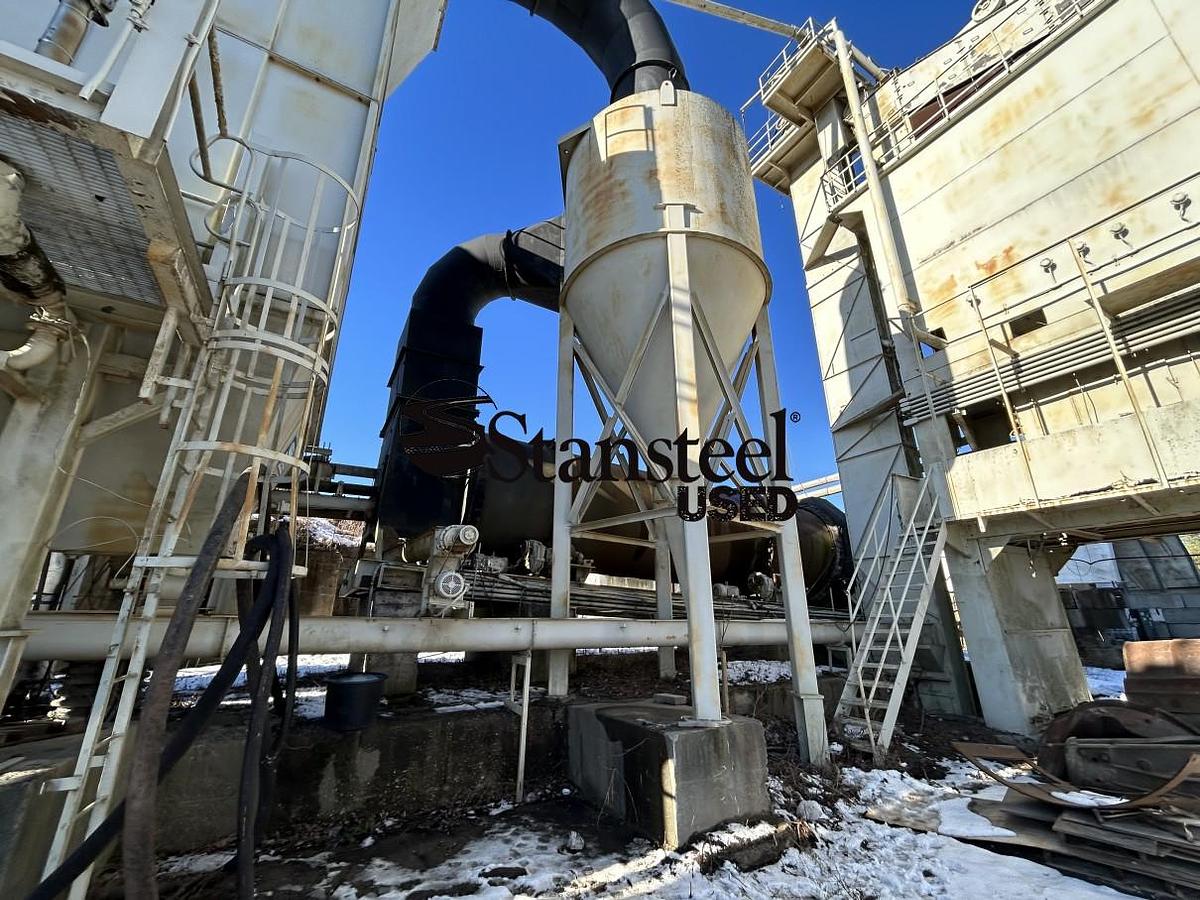

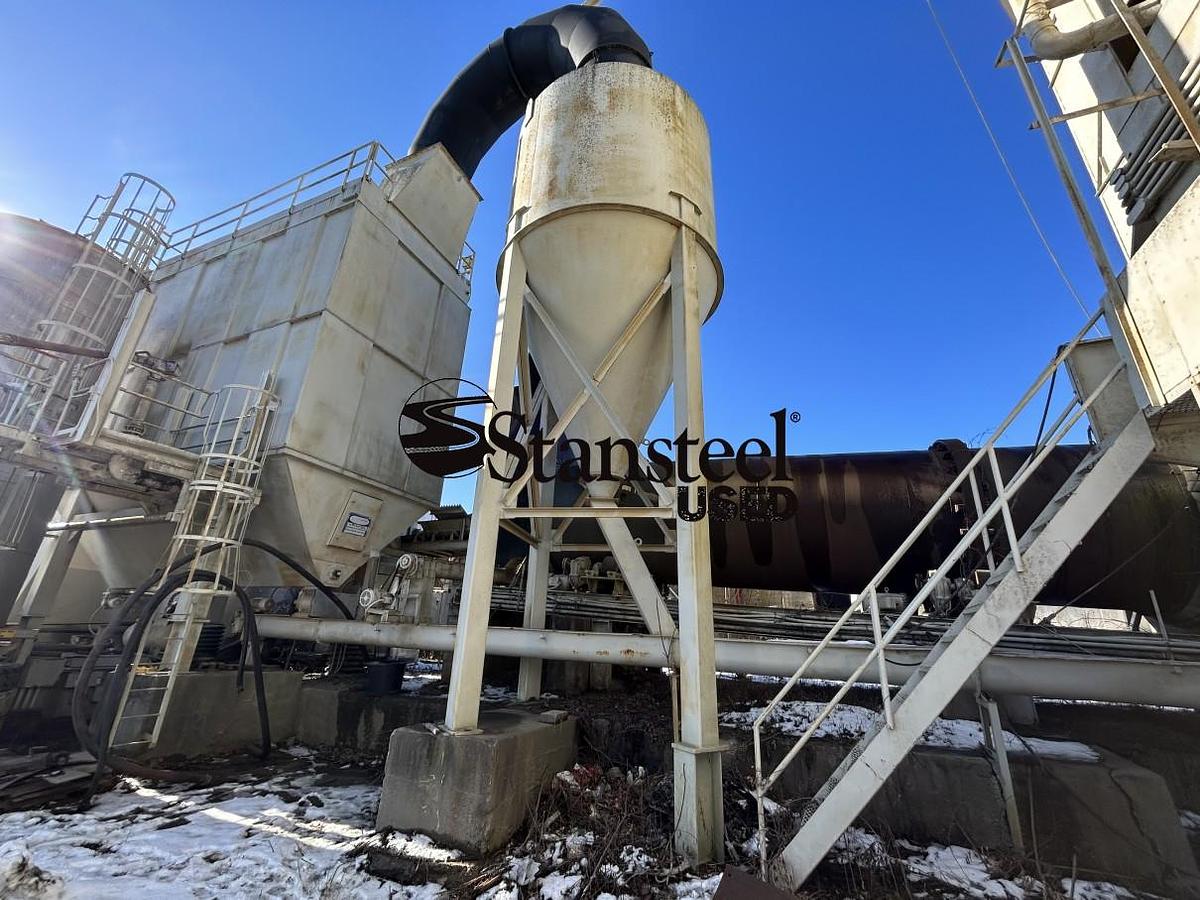

•Cedarapids / Standard Havens Stationary Single Cyclone

•Cyclone measures nominal 12’ dia

•Heavy duty support structure

•Two (2) transfer augers included: first auger measures 12” dia x 46’ long with 7.5 hp motor and second auger measures 8” dia x 14’ long with 7.5 hp motor
