CMI 300TPH Portable Parallel Flow Drum Plant

CMI 300TPH Portable Parallel Flow Drum Plant

Location:Midwest

Description

DESCRIPTION: Complete CMI Portable Parallel Flow Drum Plant. Features of this plant include the following:

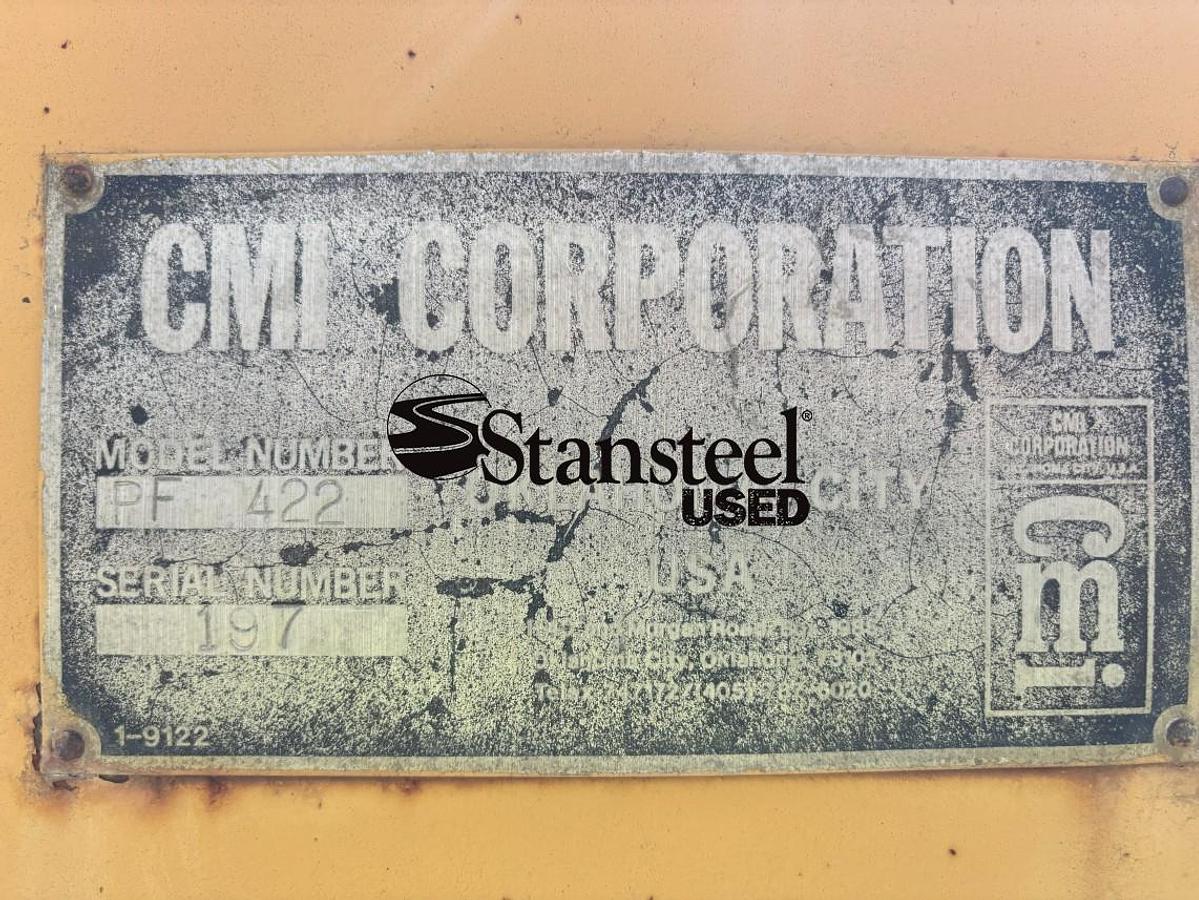

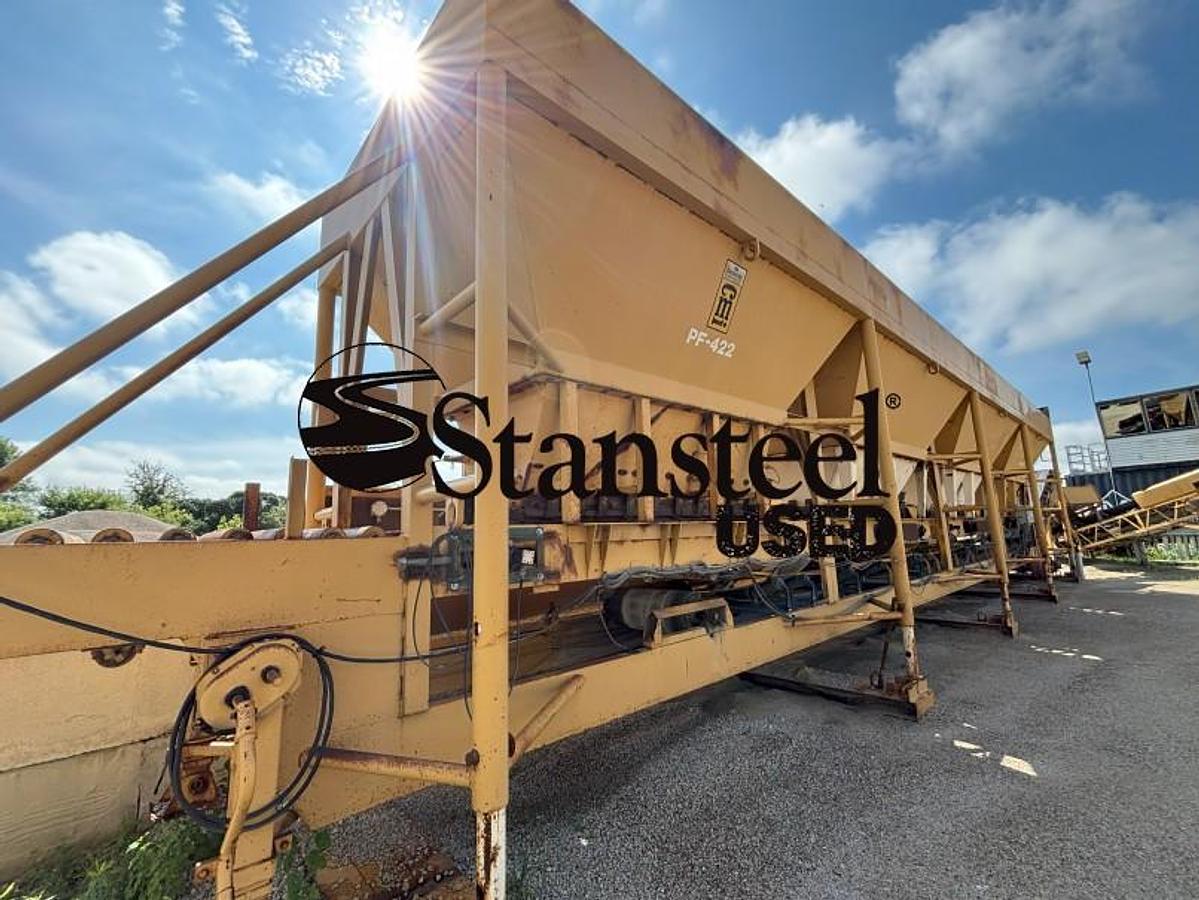

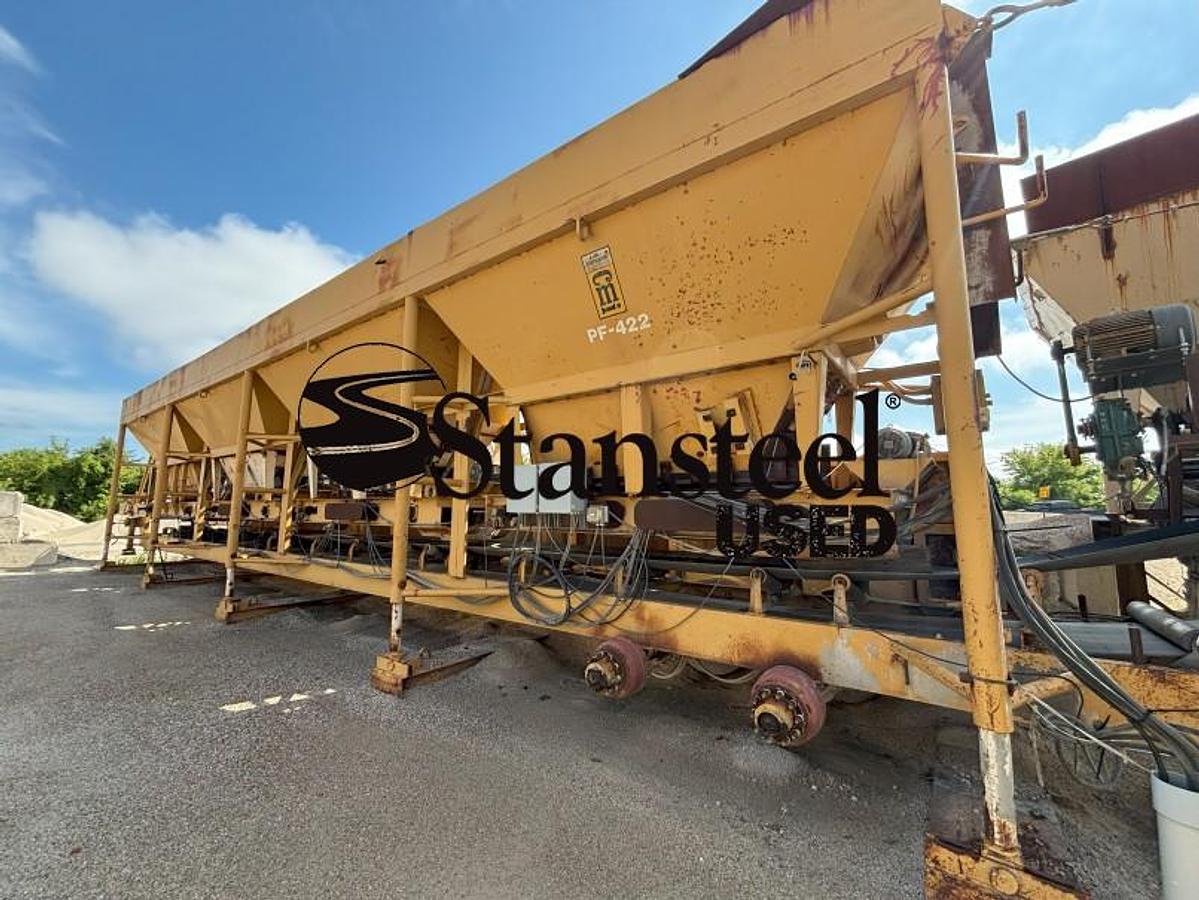

· Portable CMI Model #PF422 Four (4) Bin 8’ x 13’ Cold Feed System with nominal 30” wide feeders.  Bins #1 and #4 each have 5 HP drives and bins #2 and #3 each have 3 HP drives.  Bin #1 has a reversing feeder conveyor for use with different materials.  A nominal 30” wide x nominal 90’ long integral collecting conveyor with bi-folding head section and 15 HP drive. This cold feed system is also equipped with self-storing, retractable support skids to grade, 18” bin extensions, and tandem axle portability. One additional stationary Cold Feed Bin with 24” wide x 9’ long feeder conveyor. 15hp drive Collecting Conveyor included.

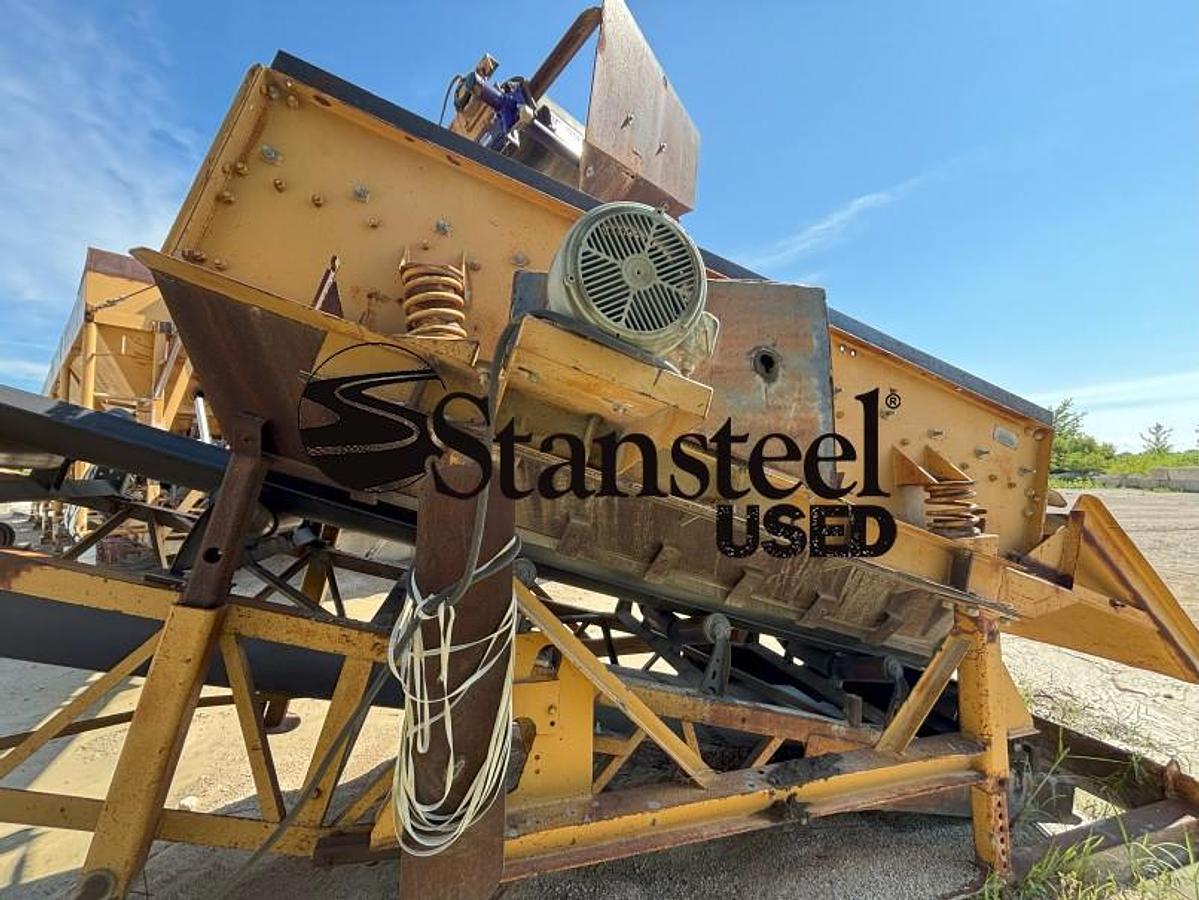

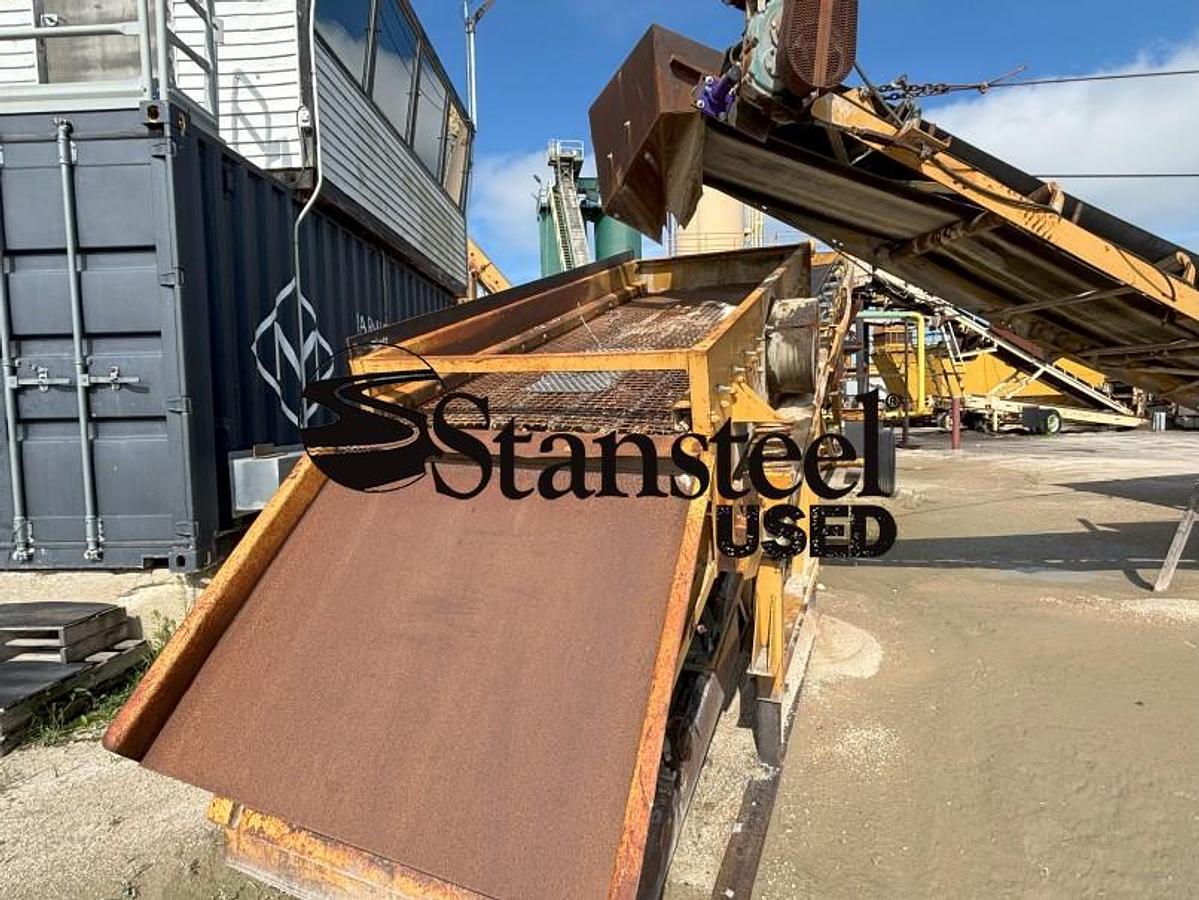

· CMI 4’ x 10’ single deck Virgin Aggregate Scalping Screen with adjustable support legs to grade.

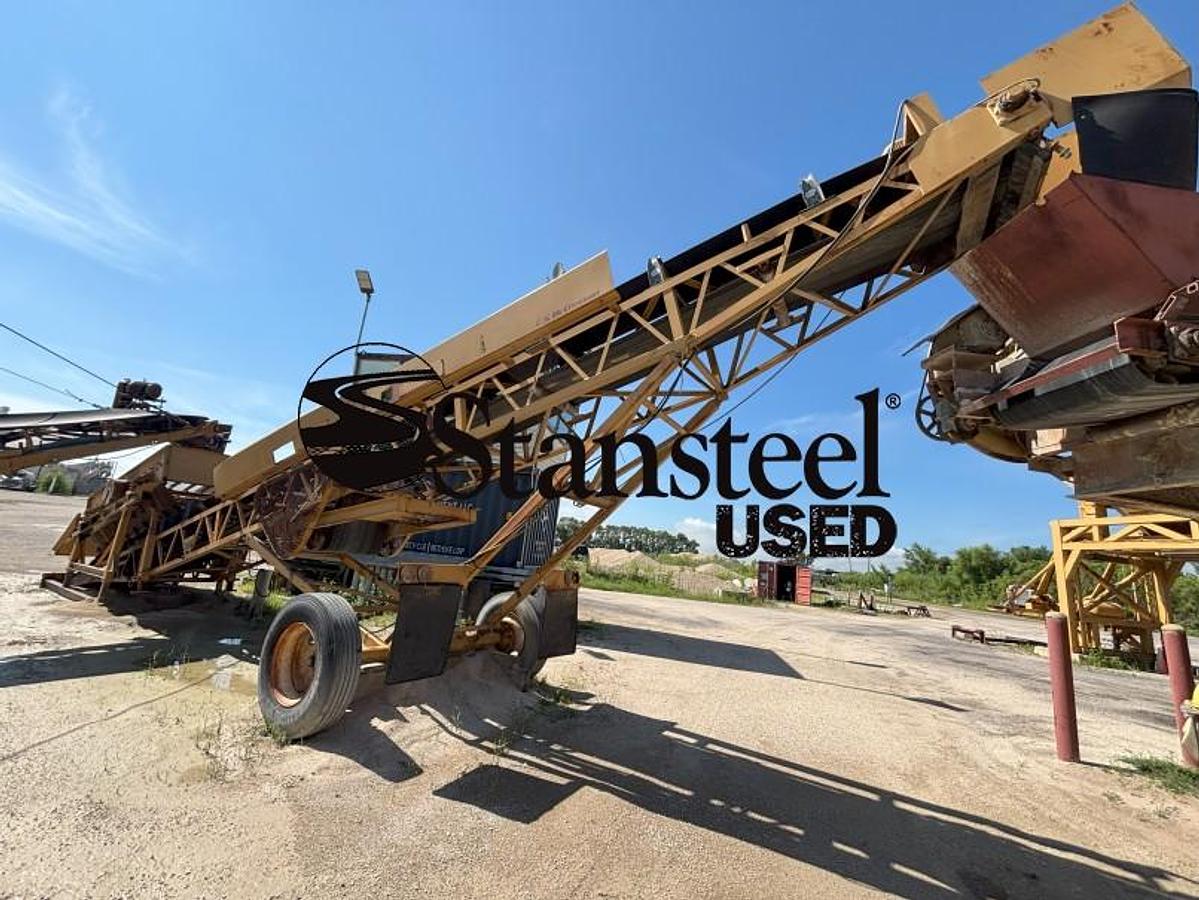

· One (1) CMI Model #SE3047 Portable self-erect 30” x nominal 47’ long Virgin Scale Conveyor with receiving trough, belt scale and wind guards on a single axle suspension.

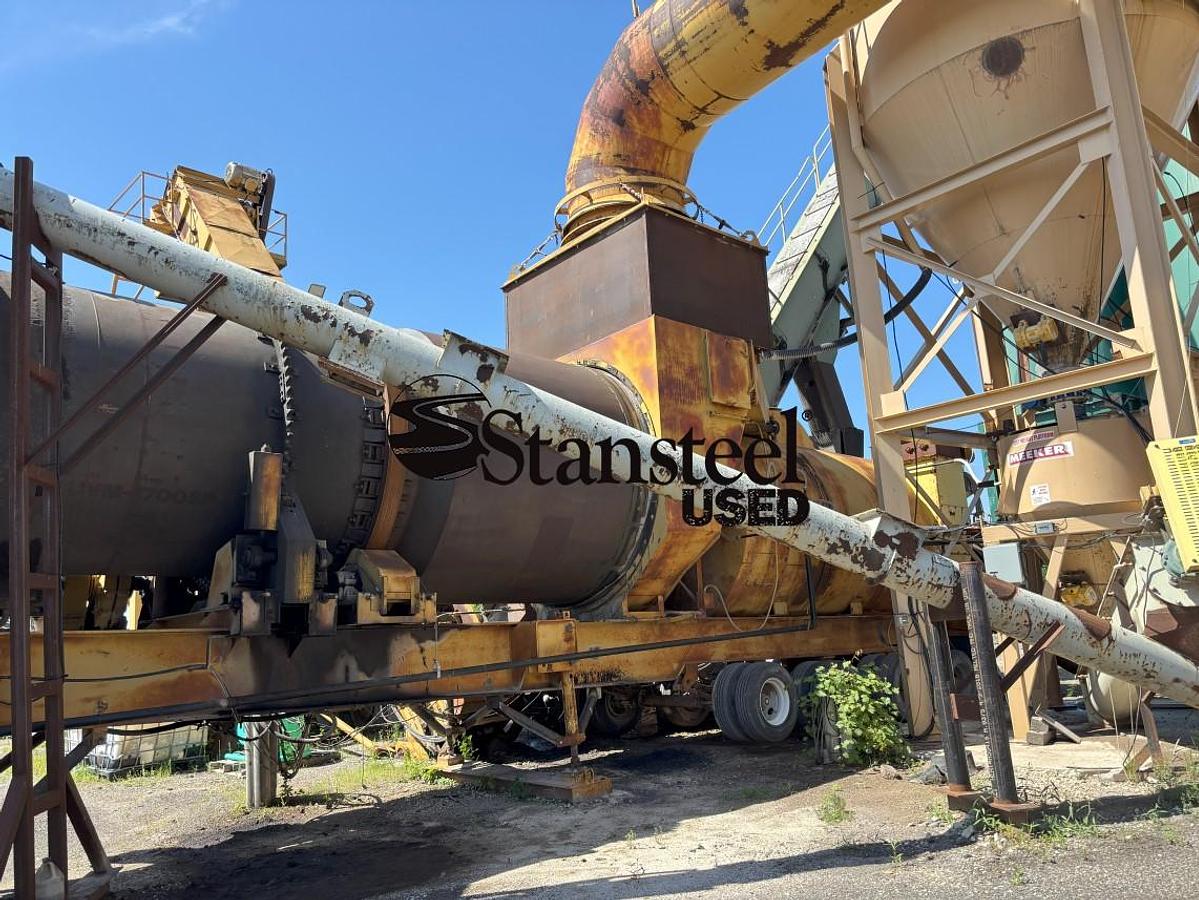

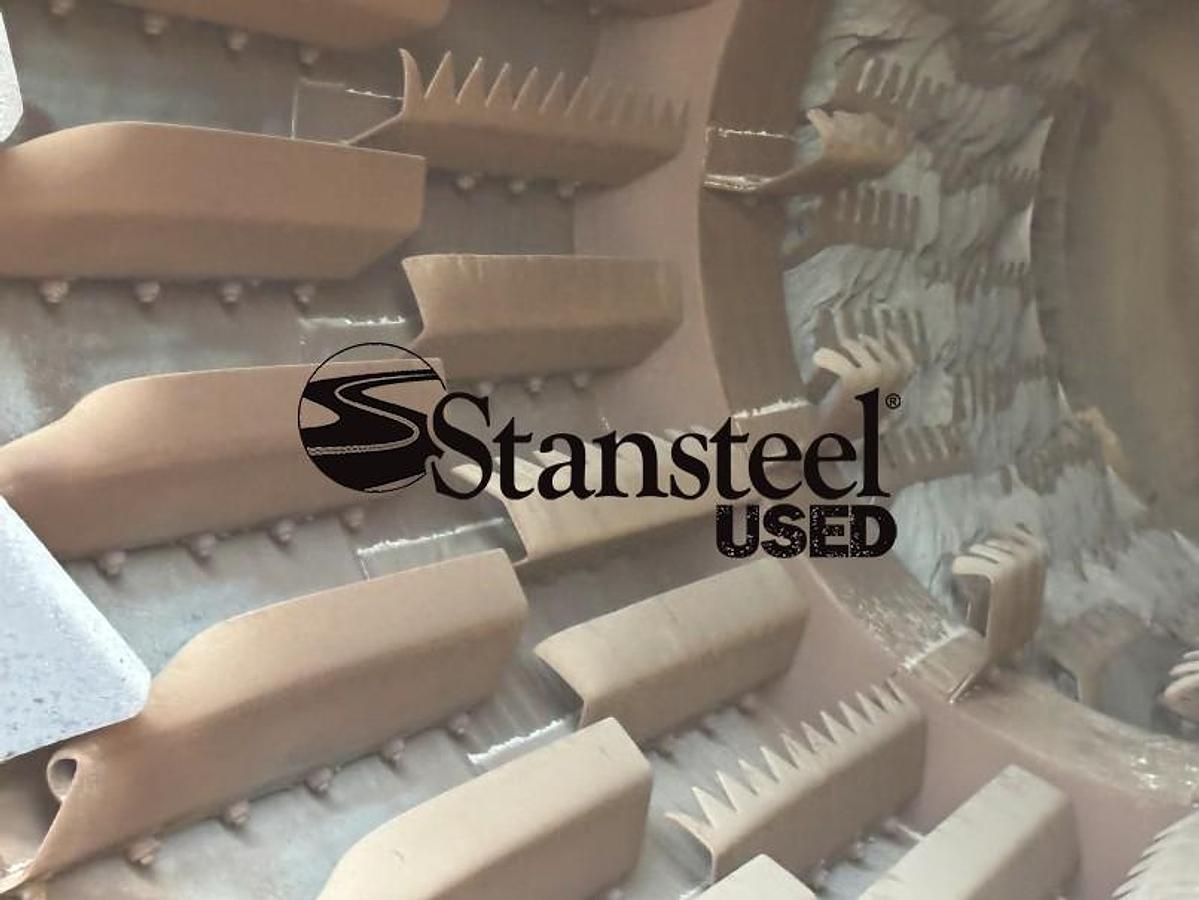

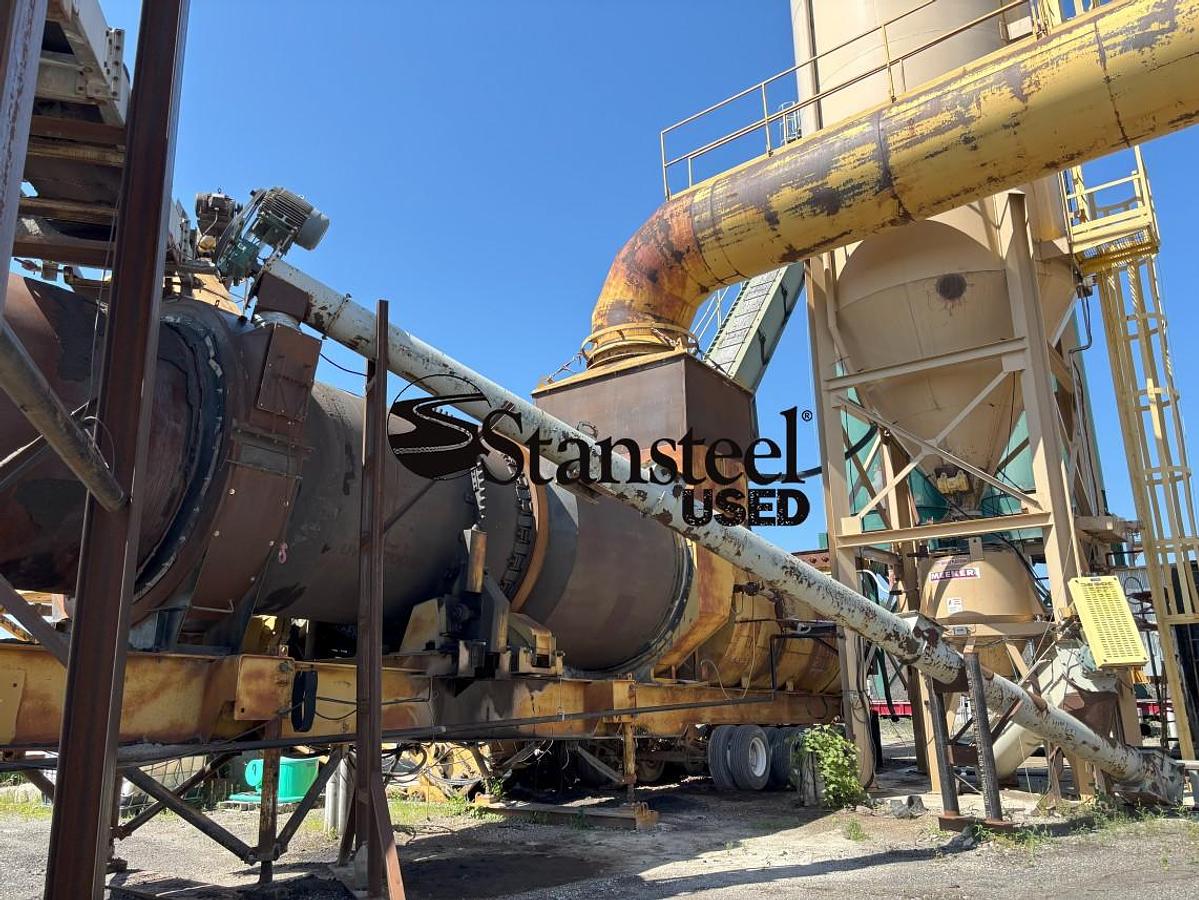

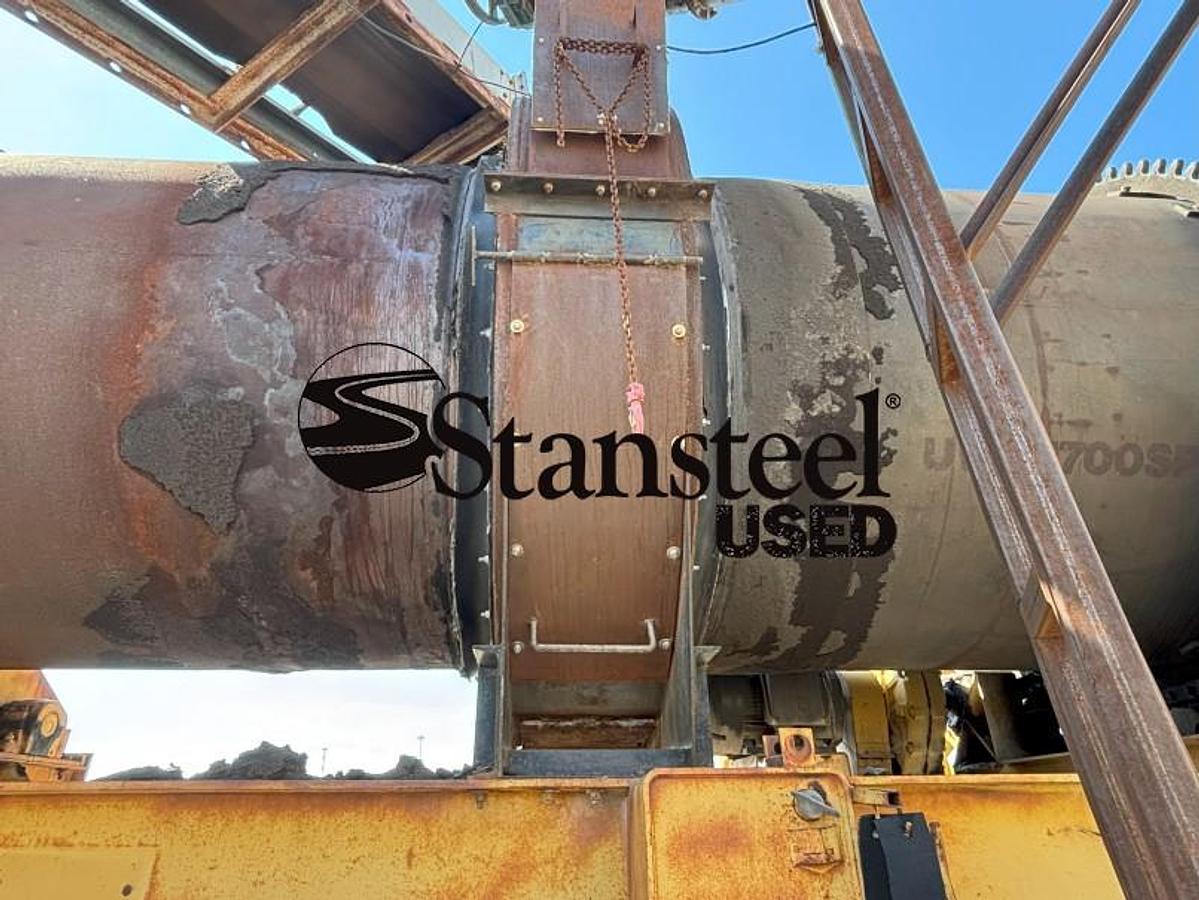

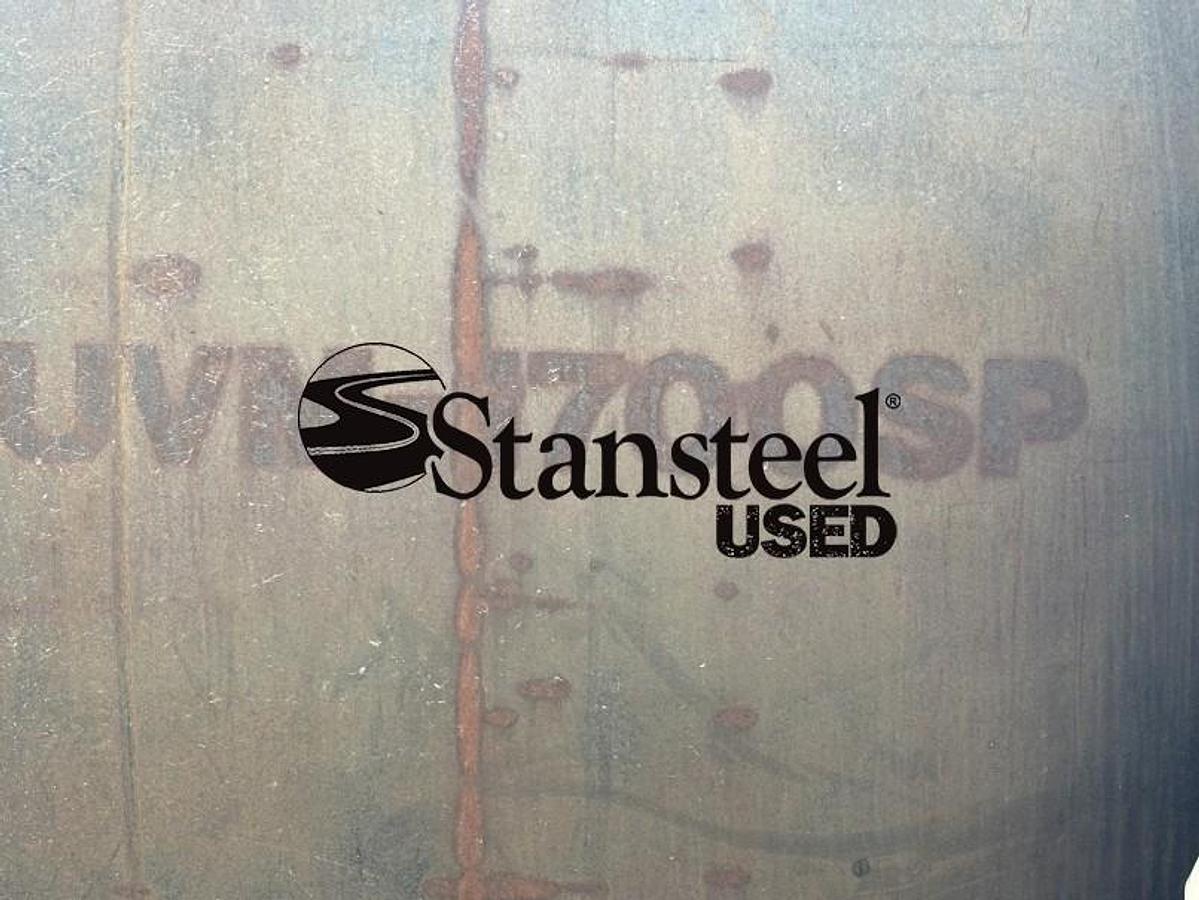

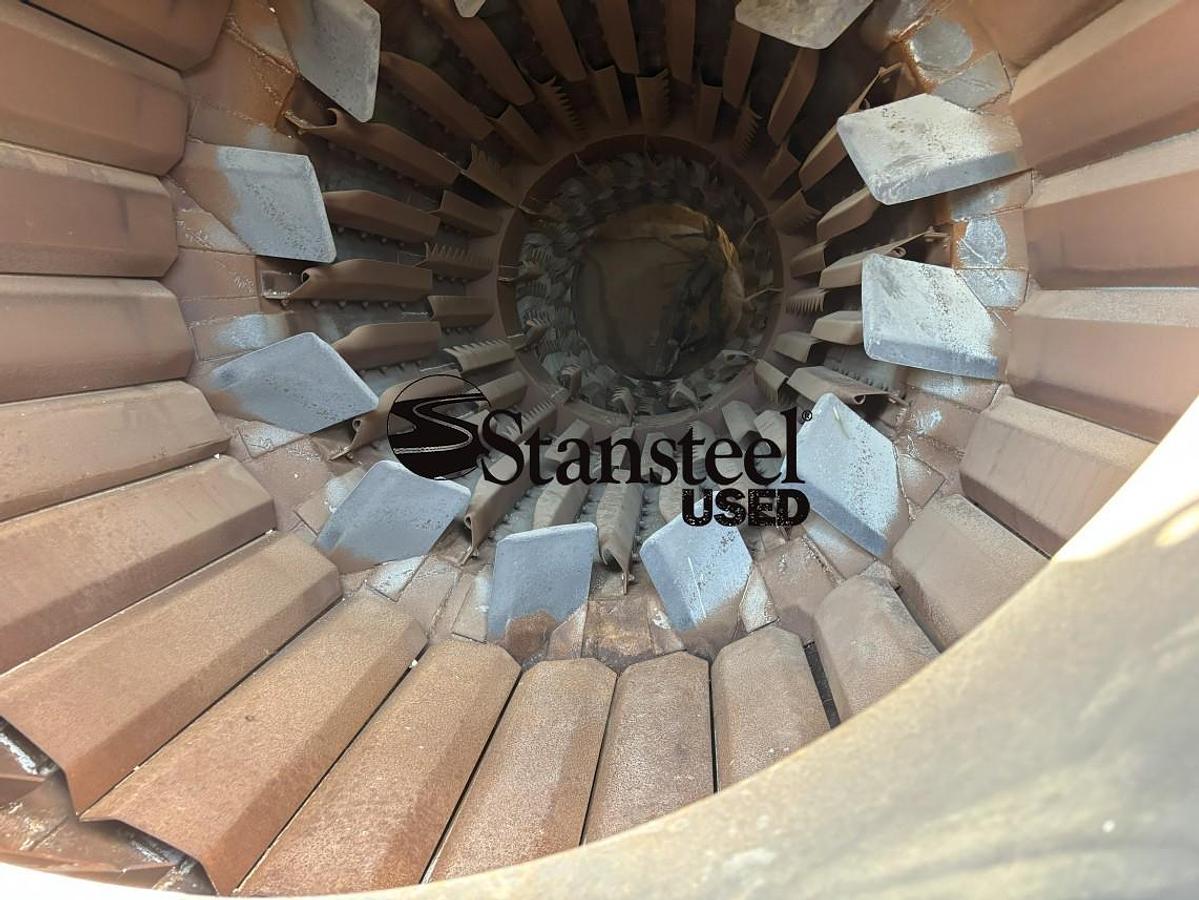

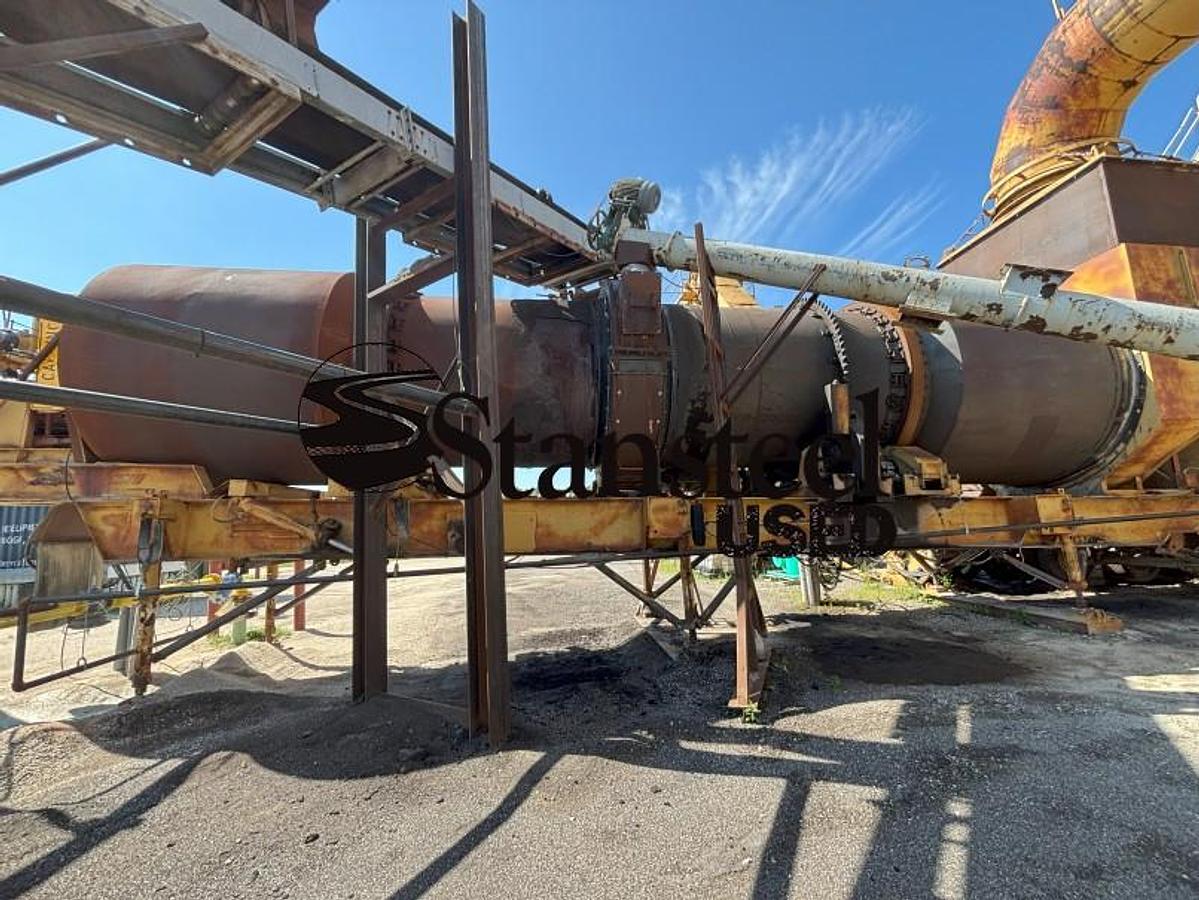

· Portable CMI Model UVM-1700 Parallel Flow Drum. The drum is 8’-6” diameter through the main body with 9’-6” expanded ends x 38’ long and is equipped with a 5 HP slinger feed conveyor.  The unit is cradle chain driven with a single 100 HP motor and Heavy-Duty Dodge TDT-10 reducer. A Hauck Starjet 580 burner, a recycle entry collar, support stands to grade, and a quad axle suspension.

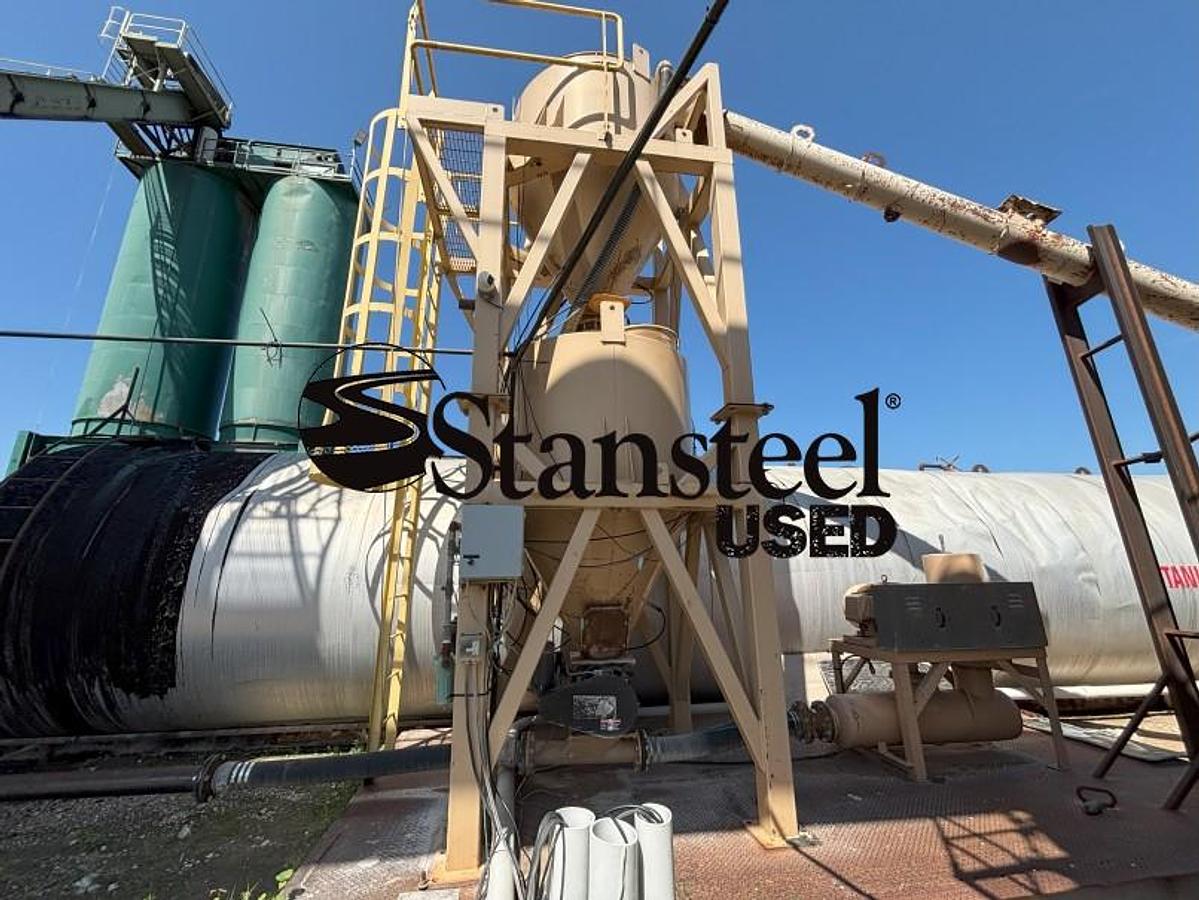

· Meeker complete Dust Runaround System features a 700BBL Dust Silo with weigh pod & surge pod. Pod to Pod weigh depleted dust runaround system. 3HP Rotary Air Lock. High Level Indicator. 40HP Dust Blower. Access Ladder, from grade to top of silo

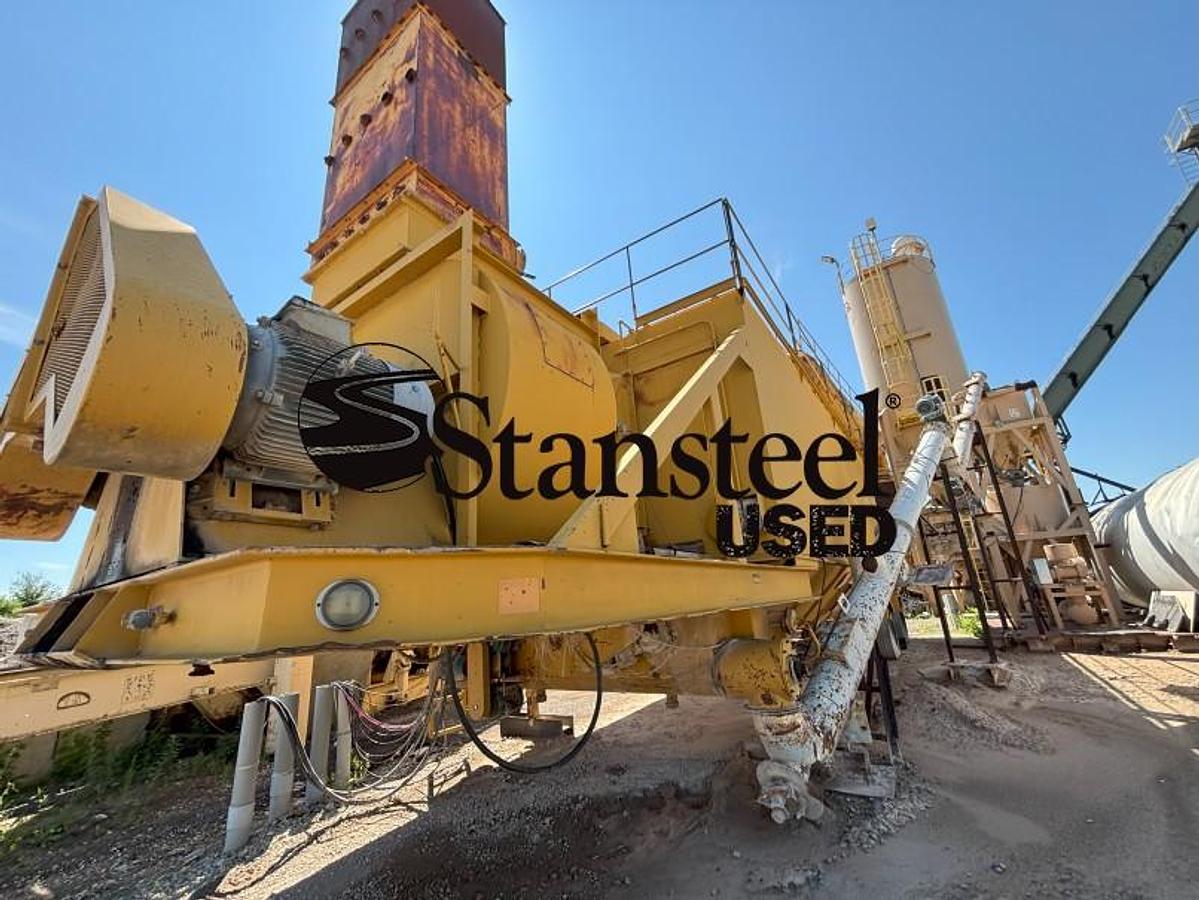

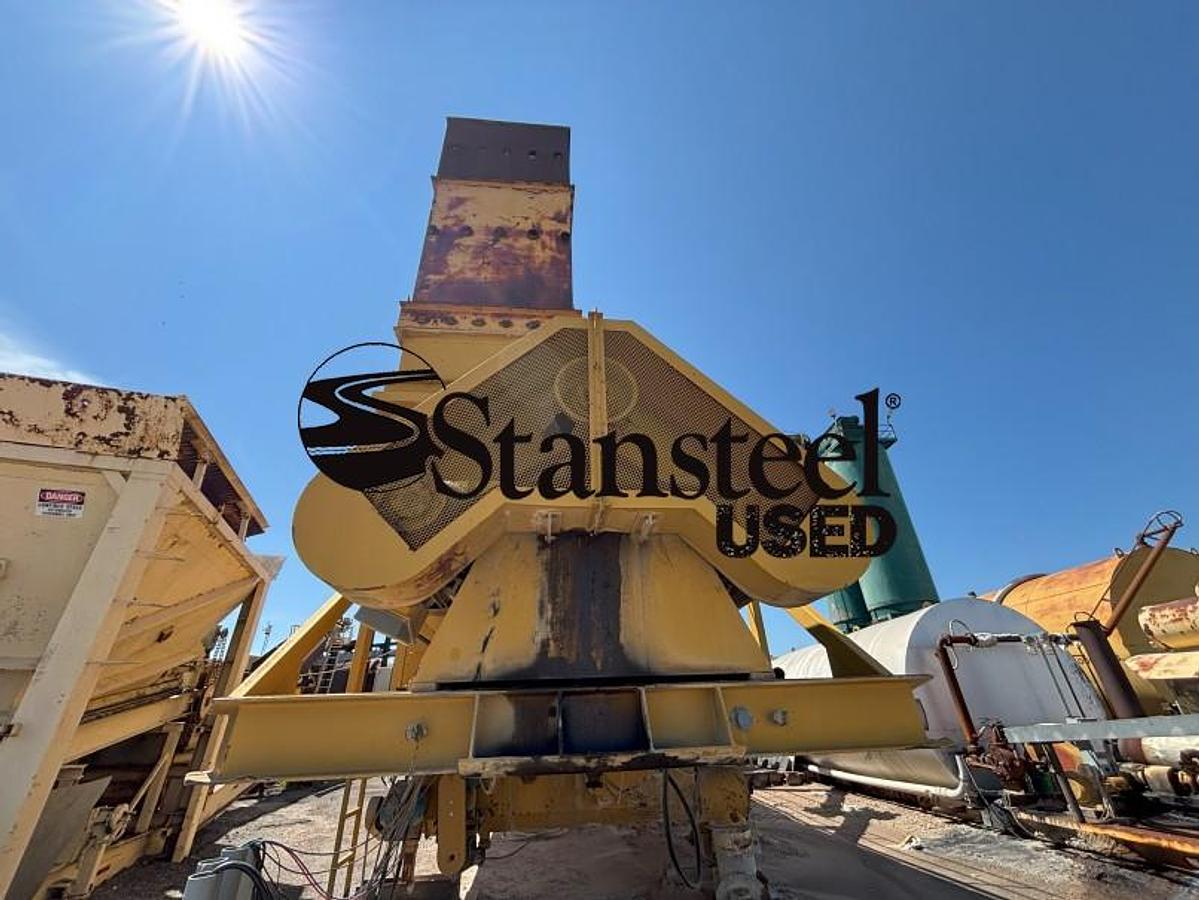

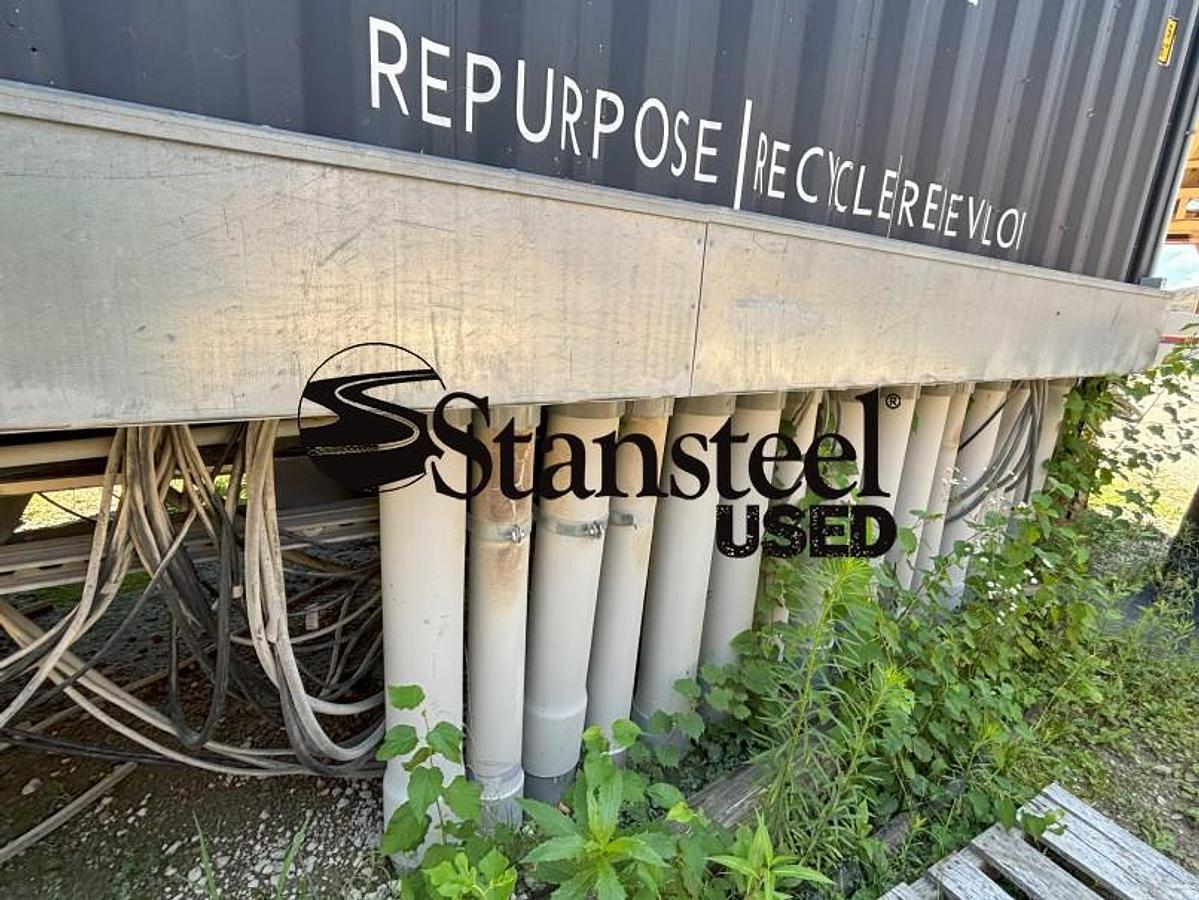

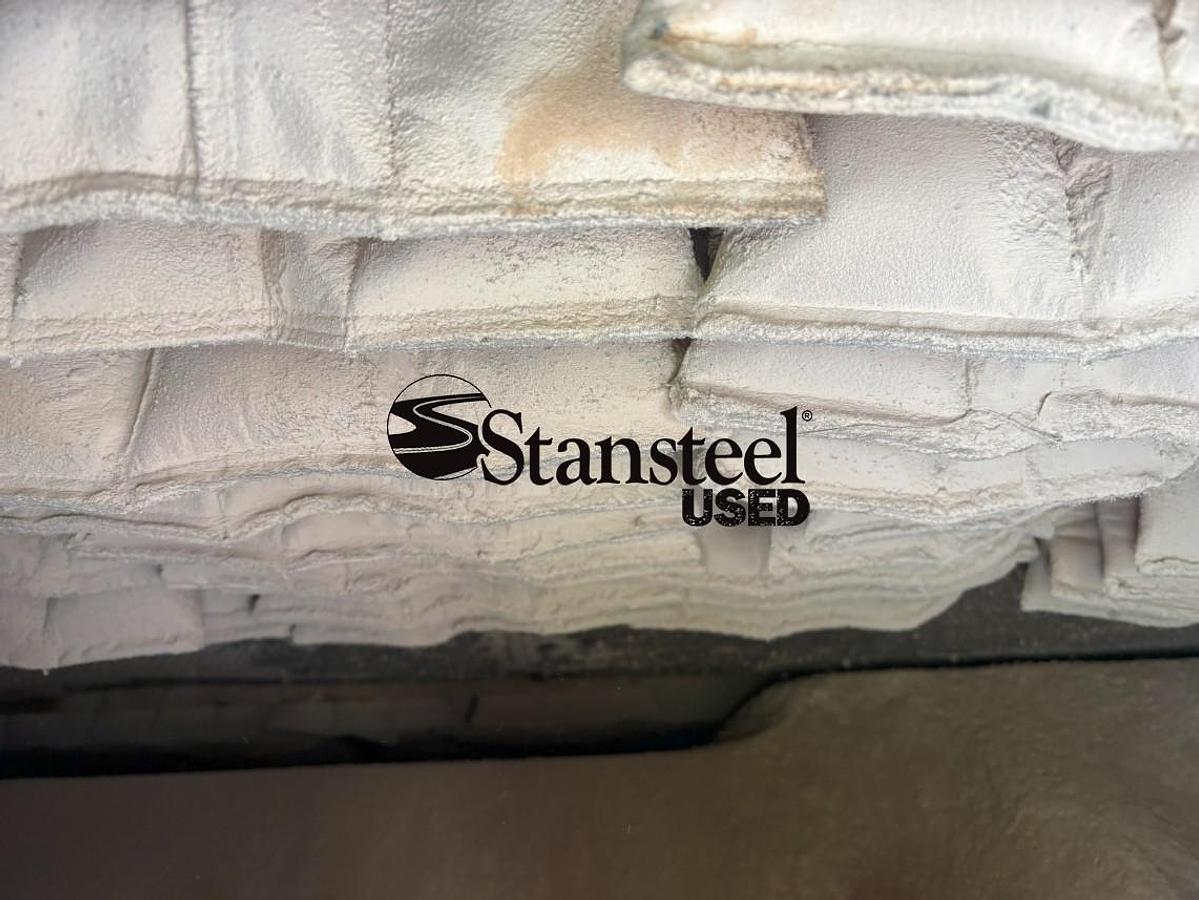

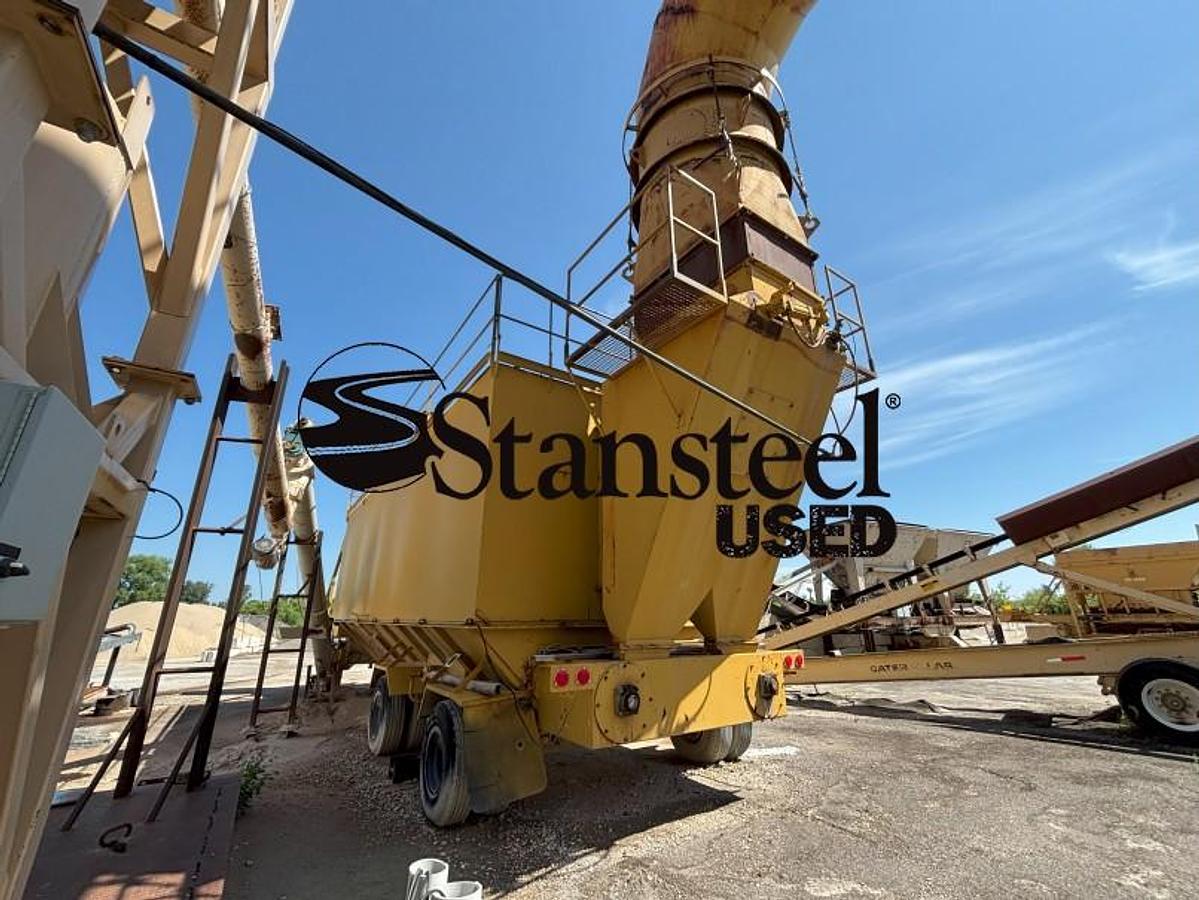

· Portable CMI, Model RA-318P Roto-Aire Baghouse includes mounted fan with twin 100 HP drive motors, an integrally mounted inertial collector, bottom mounted twin auger dust removal with cross auger and tandem axle suspension.

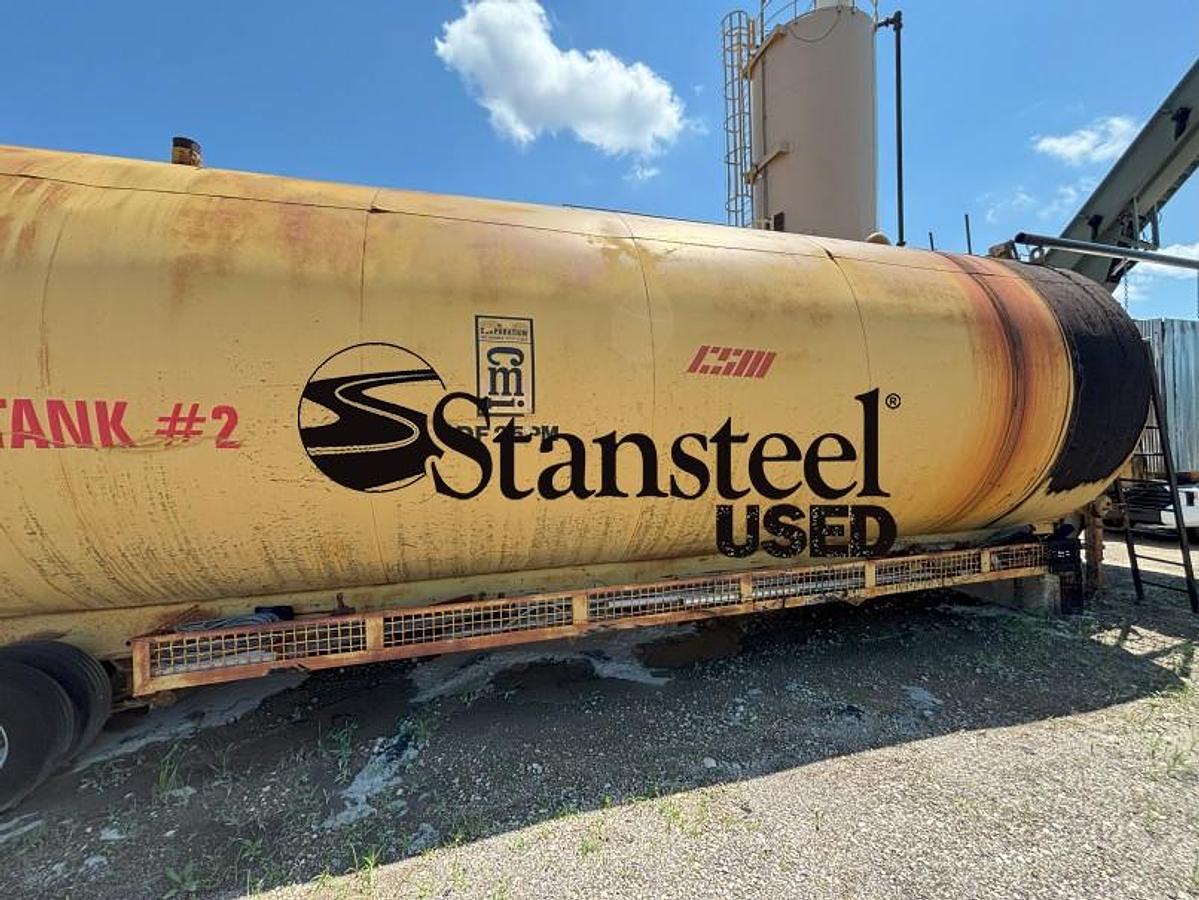

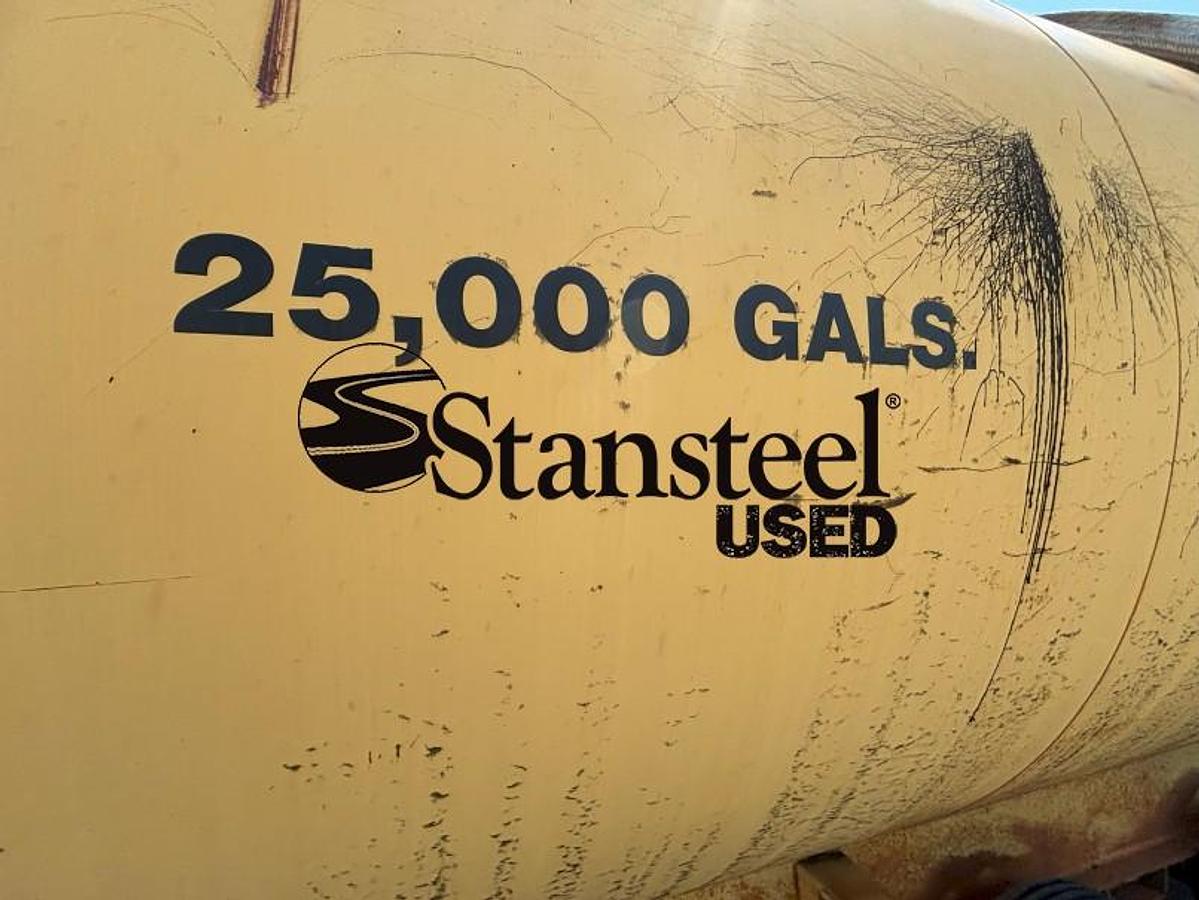

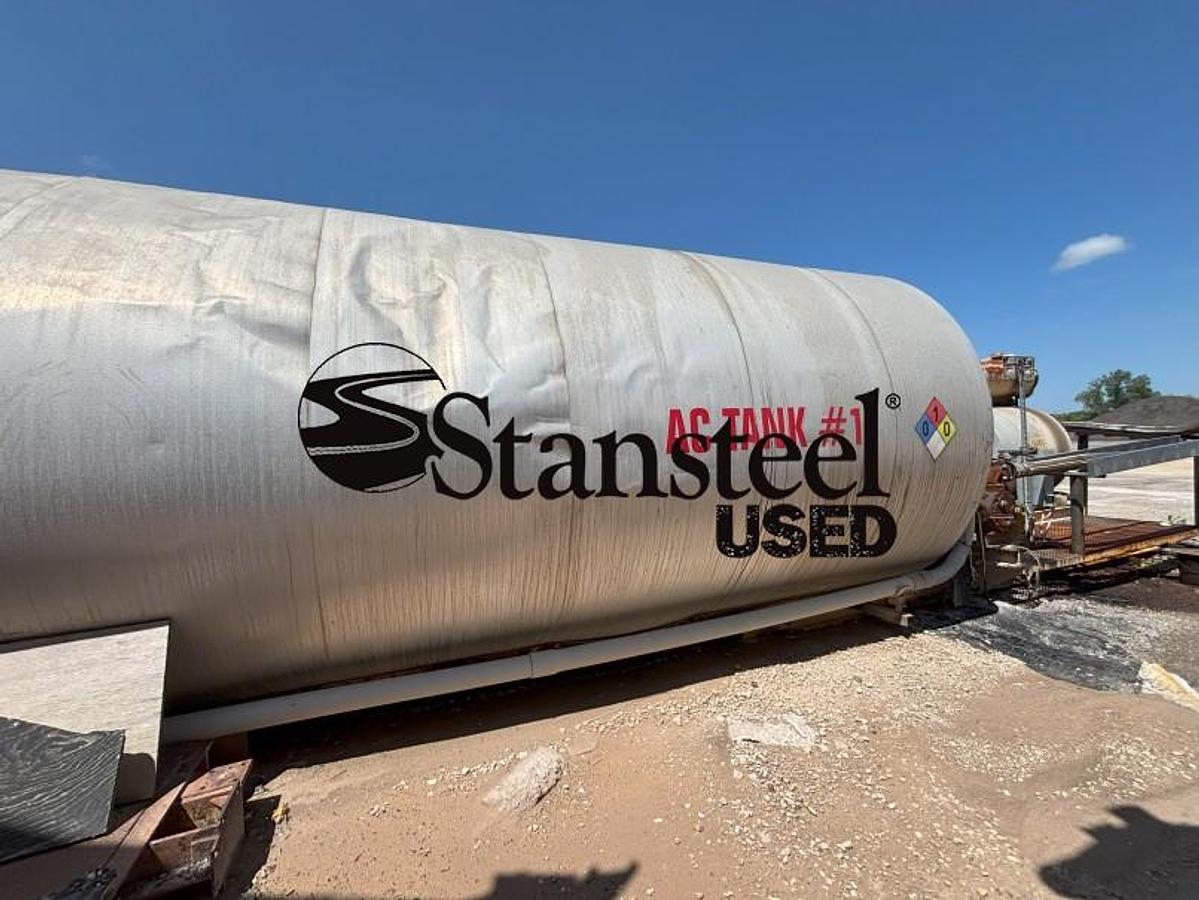

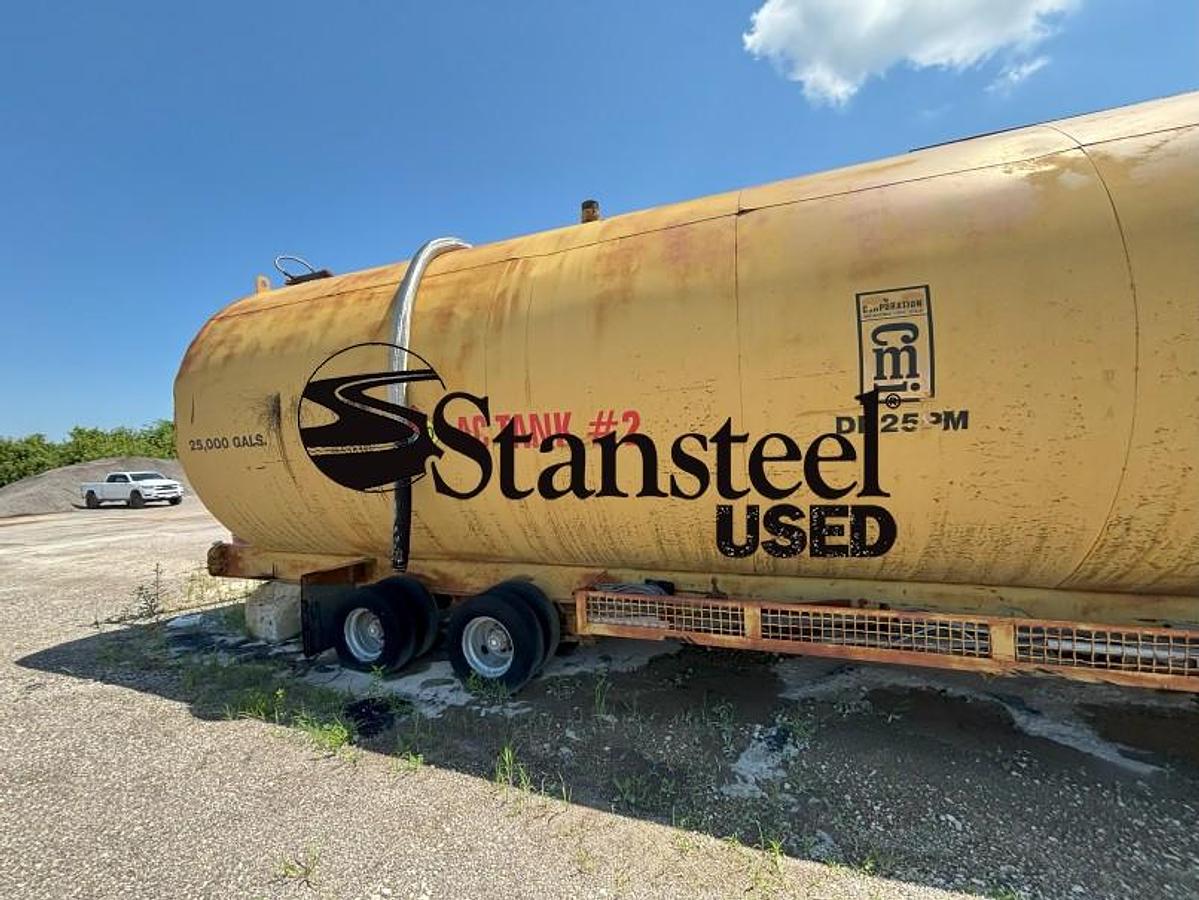

· CMI 25,000 Gallon Portable, Direct Fired AC Tank with a mounted AC unloading pump, an AC metering system, on board diesel storage tank, blocking pads and a tandem axle suspension.

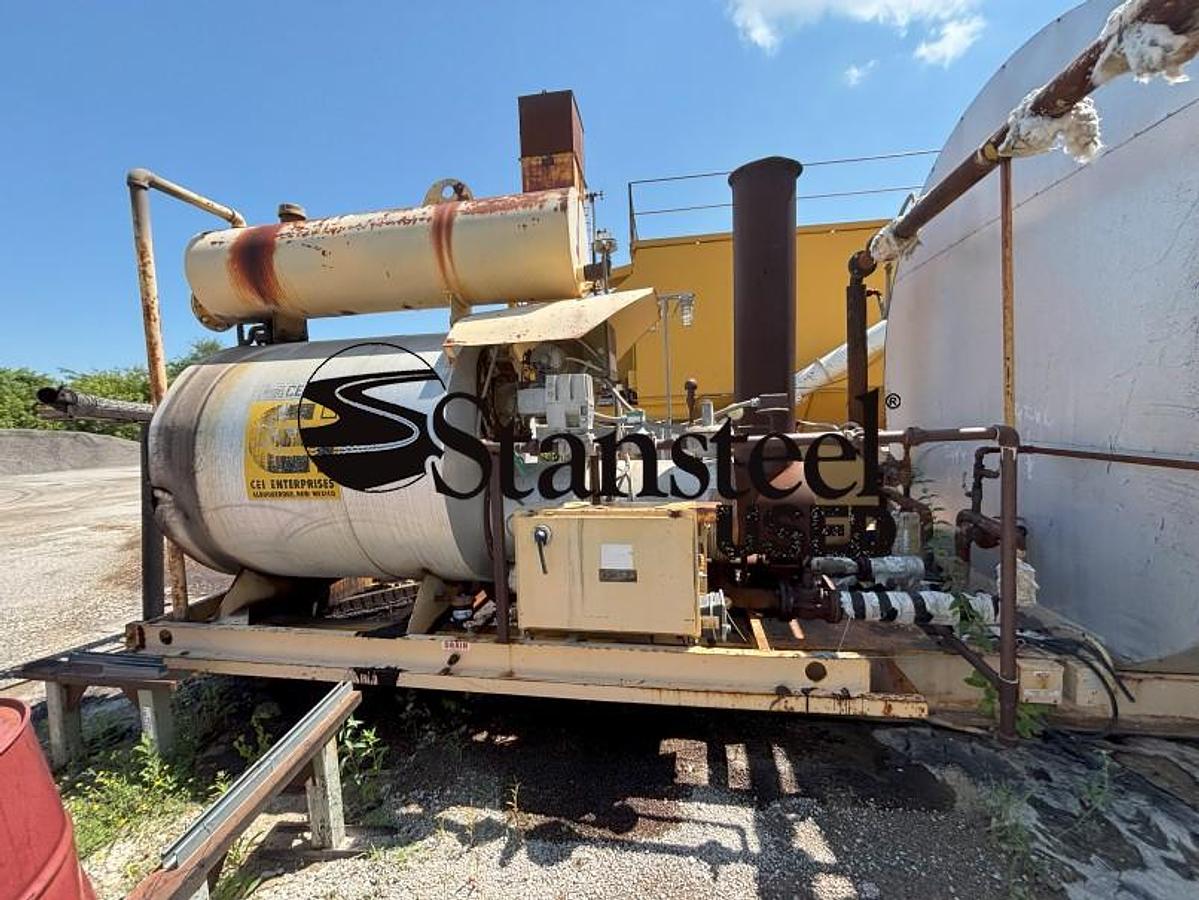

· Stationary 30,000 Gallon Coiled Only w/ mounted CEI Model #CEI-1500 1.5mbtu Hot Oil Heater.

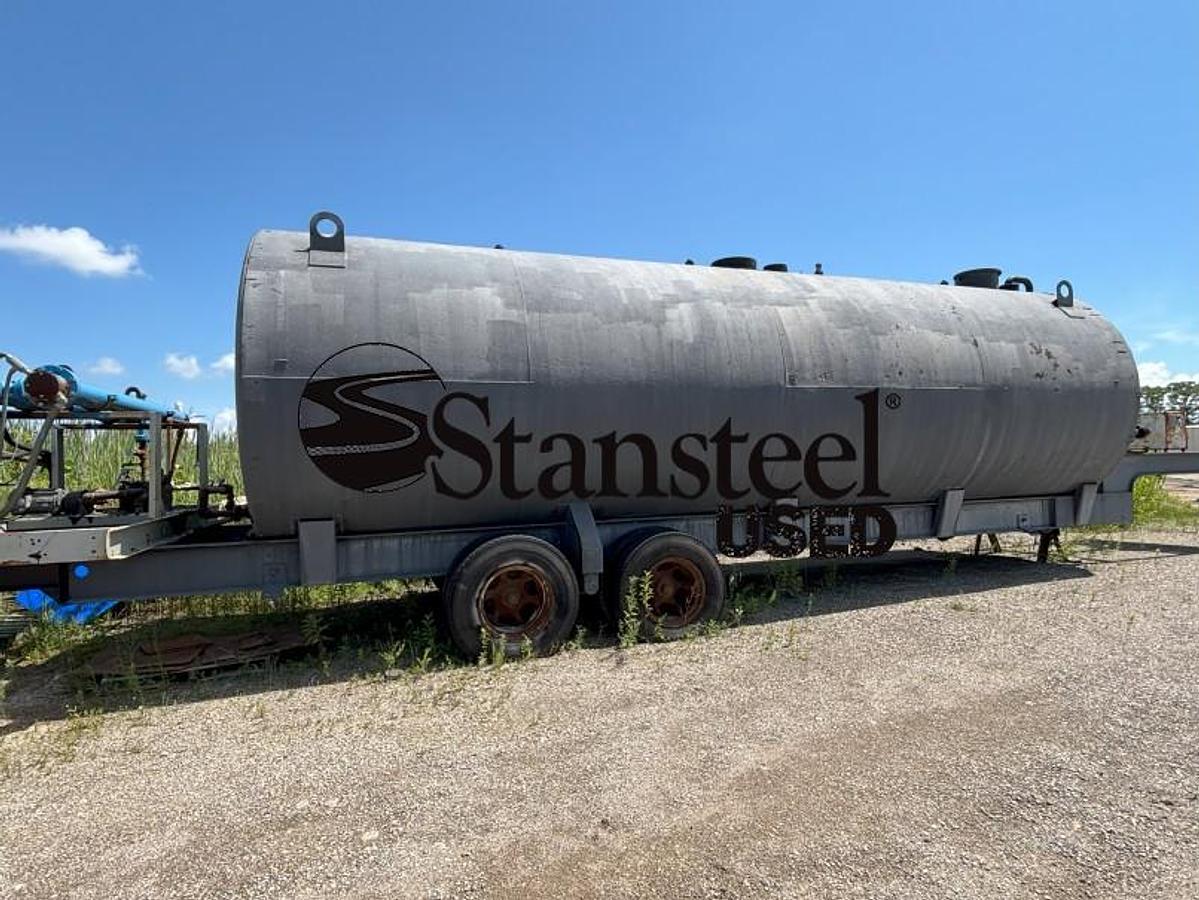

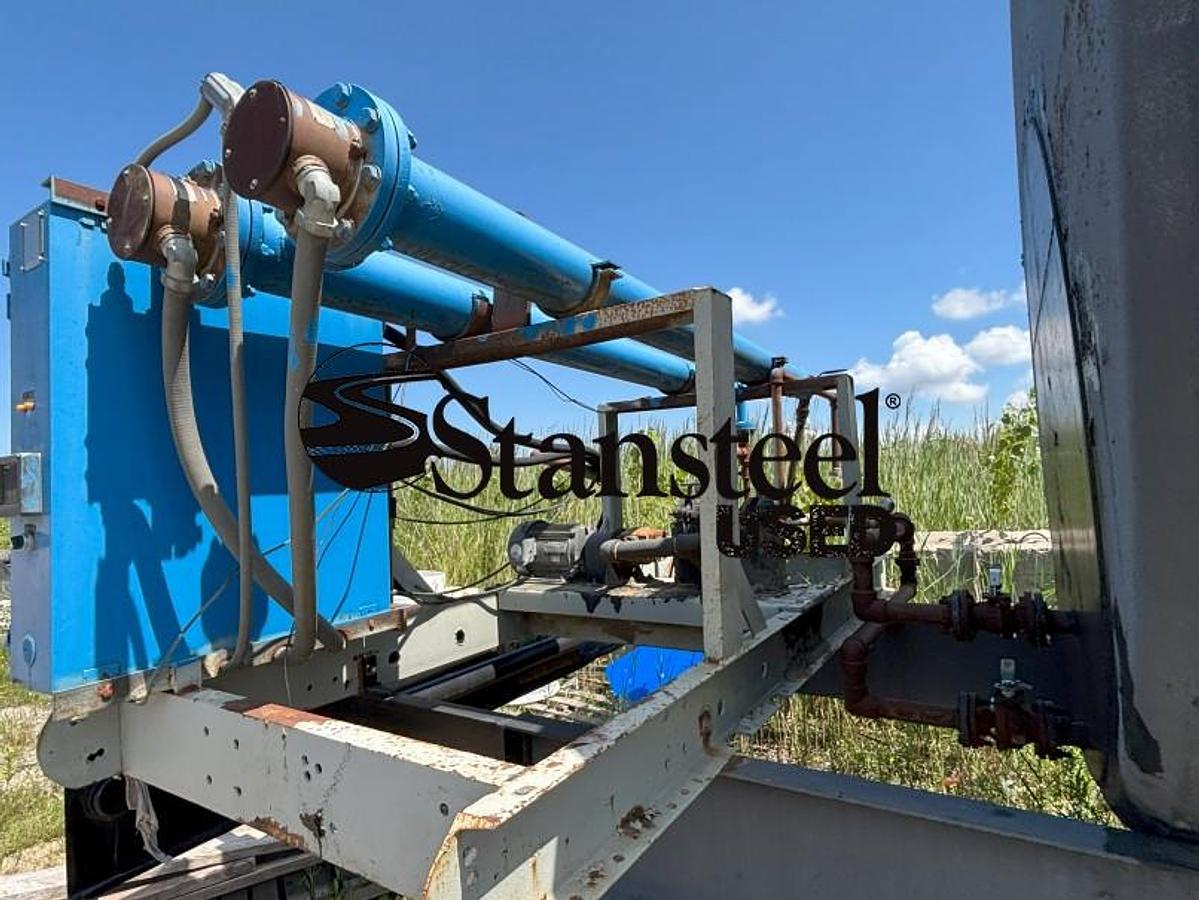

· Portable 20,000 Gallon Burner Fuel Tank w/ Hy-Way® Electric Pre-Heater Model #PI-962T-9

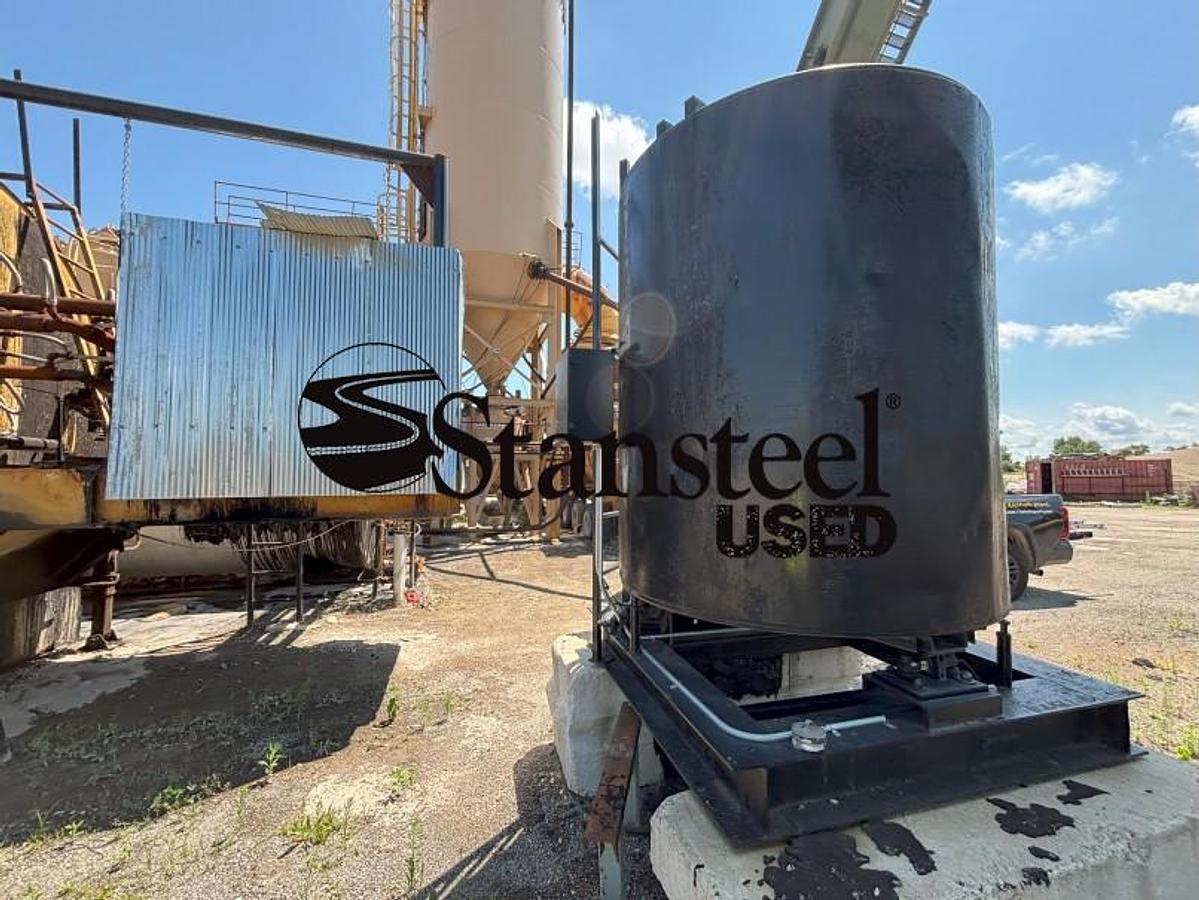

· Stationary Calibration Tank

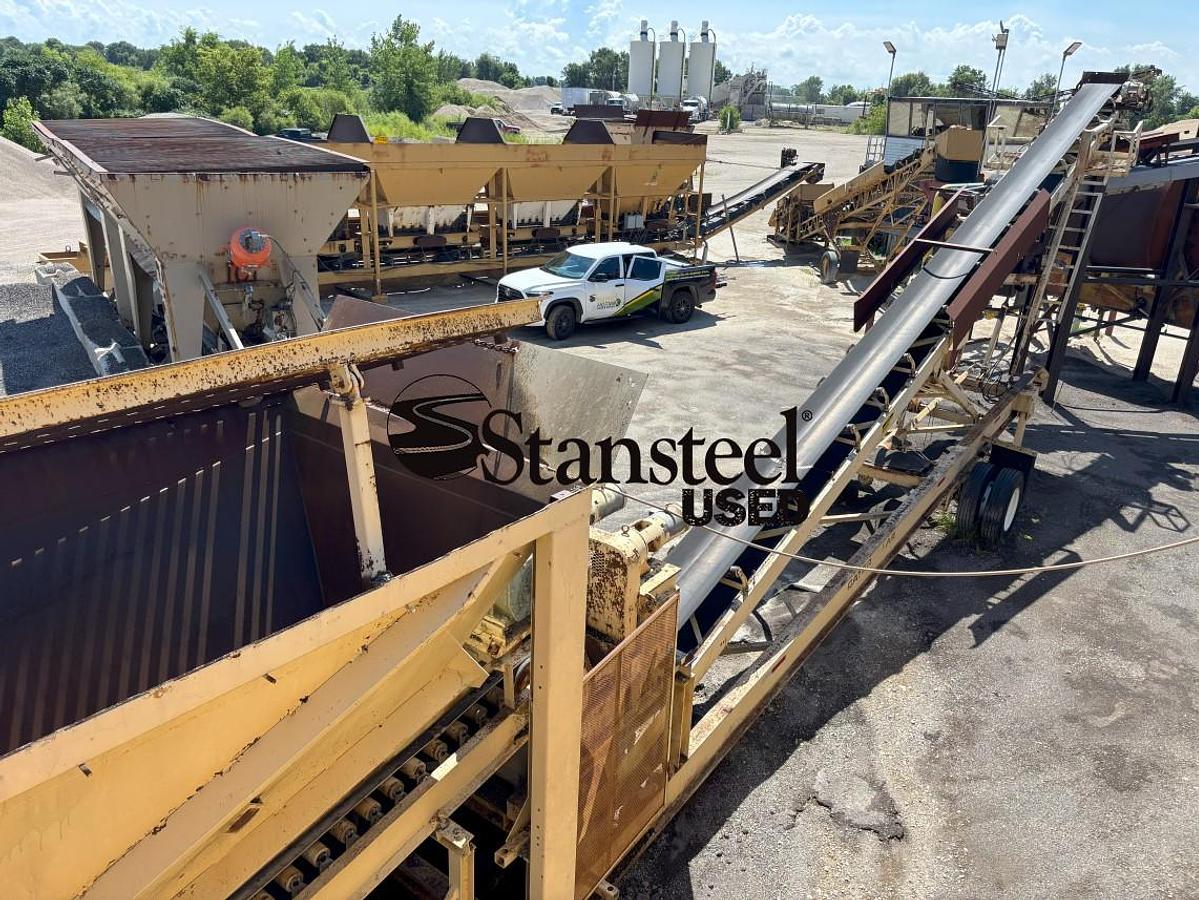

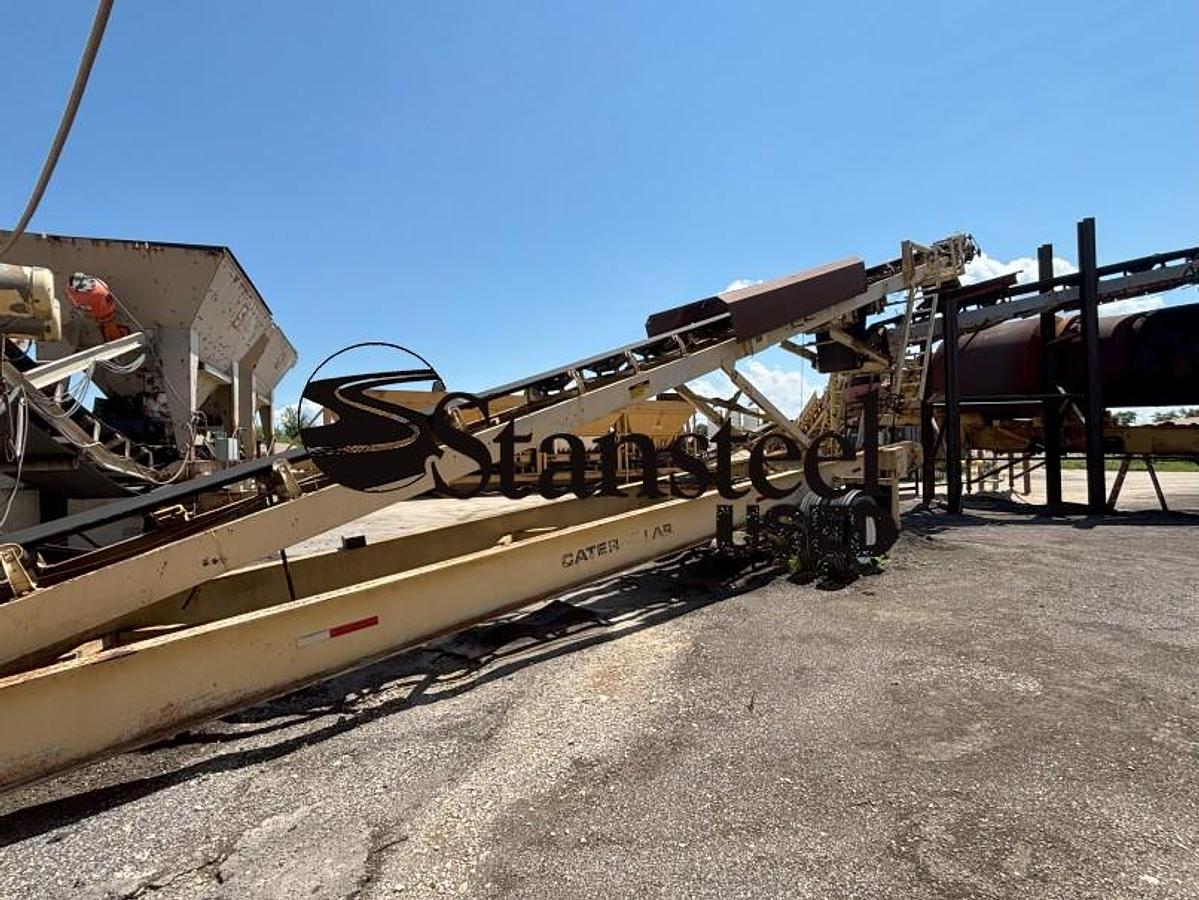

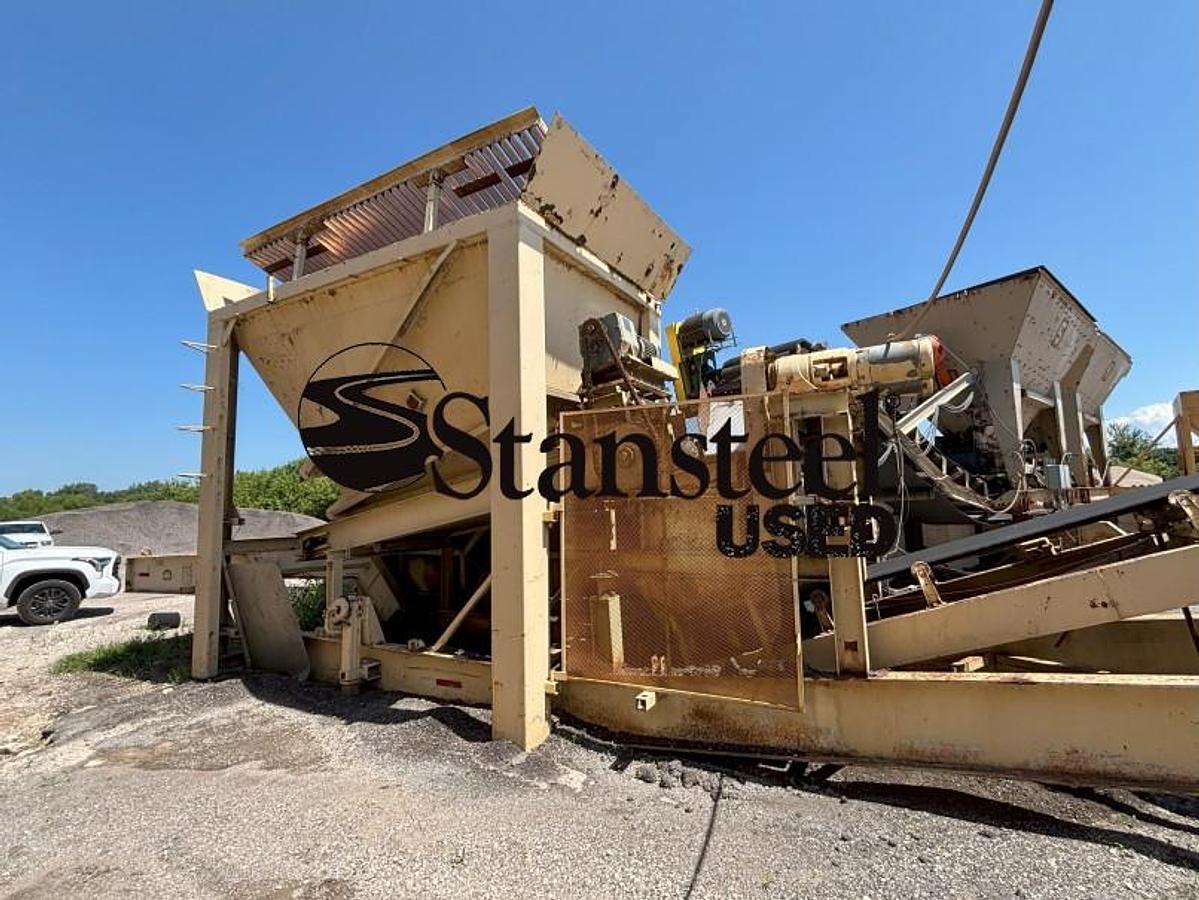

· CMI/Caterpillar Model PRB-120 Portable Self-Erect RAP System includes a single 8’ x 14’ bin with a 30” feeder conveyor, a dual roll lump breaker with 10 HP drives, and an inclined 24” scale conveyor all mounted on a single axle frame.

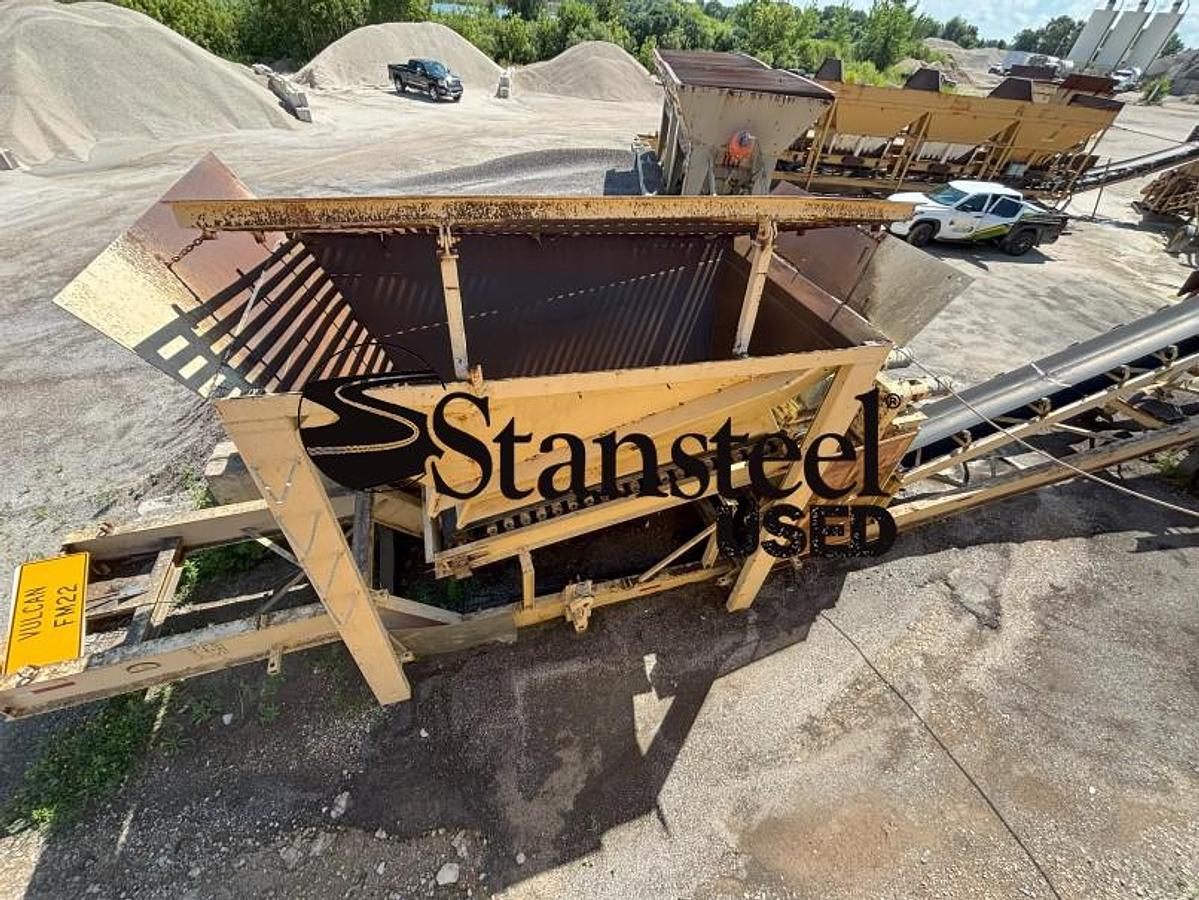

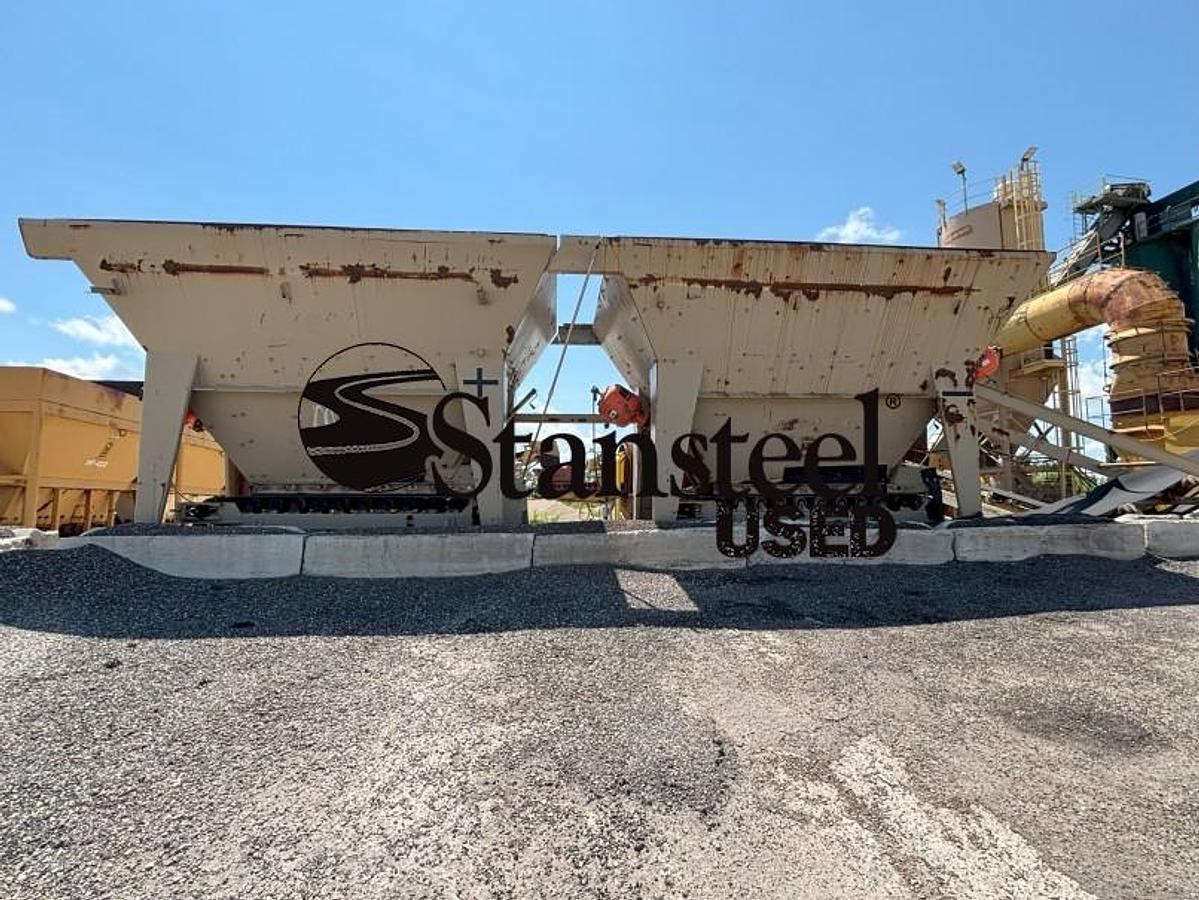

· Two (2) Bin Recycle System. The bin opening at the top is a nominal 8’-6” x 14’ with steep sidewalls. 30” x nominal 10’ long Feeder Belts. Each bin contains a grizzly and air cannon. 36” x nominal 60’ long Collecting Conveyor with Belt Scale and Gravity Take-Up.

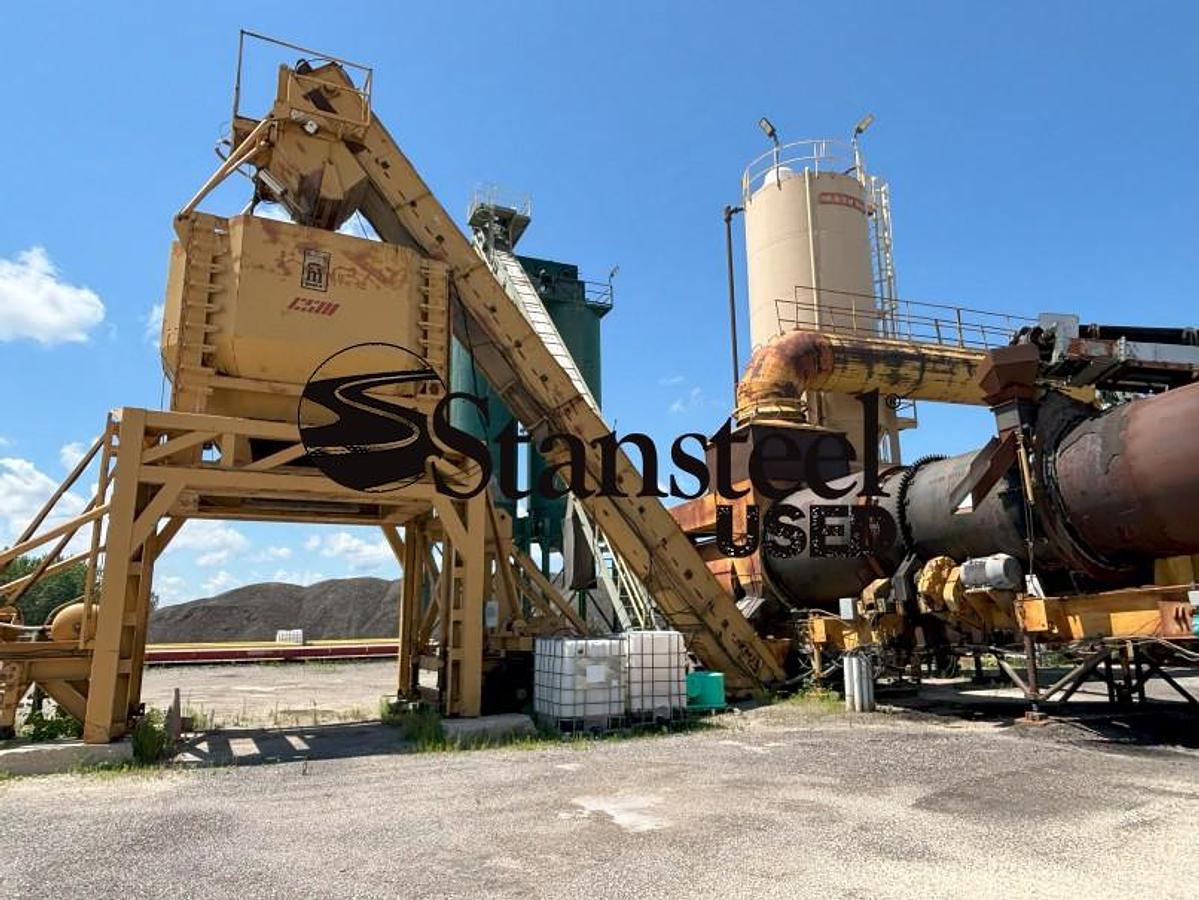

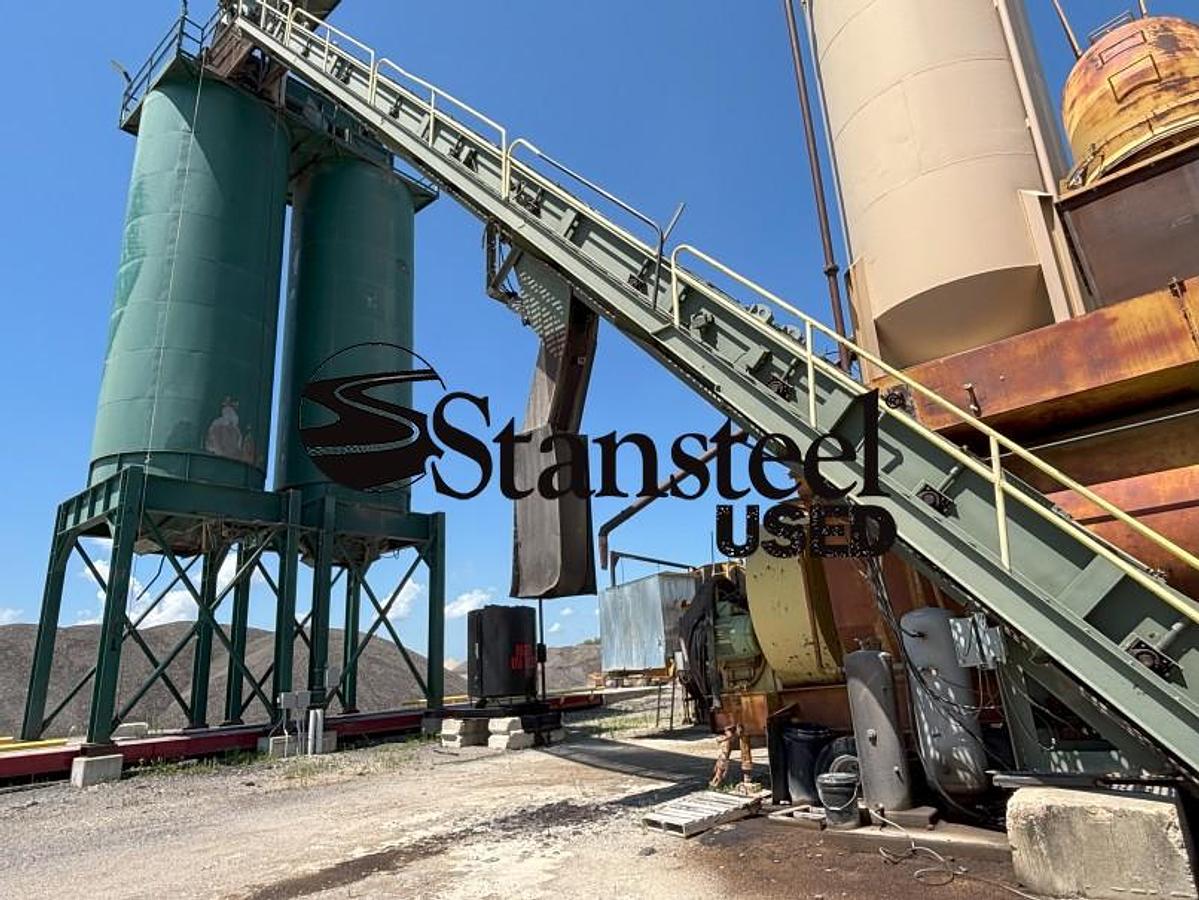

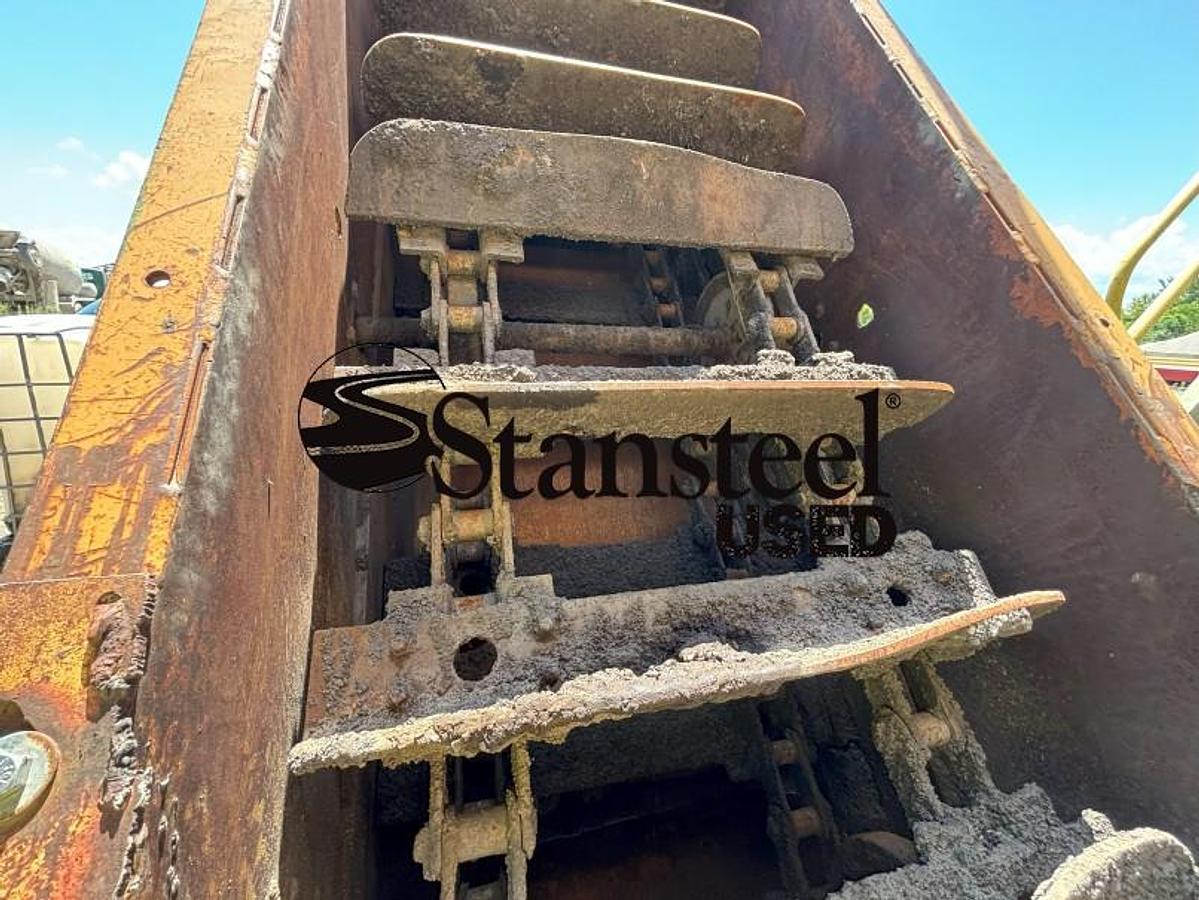

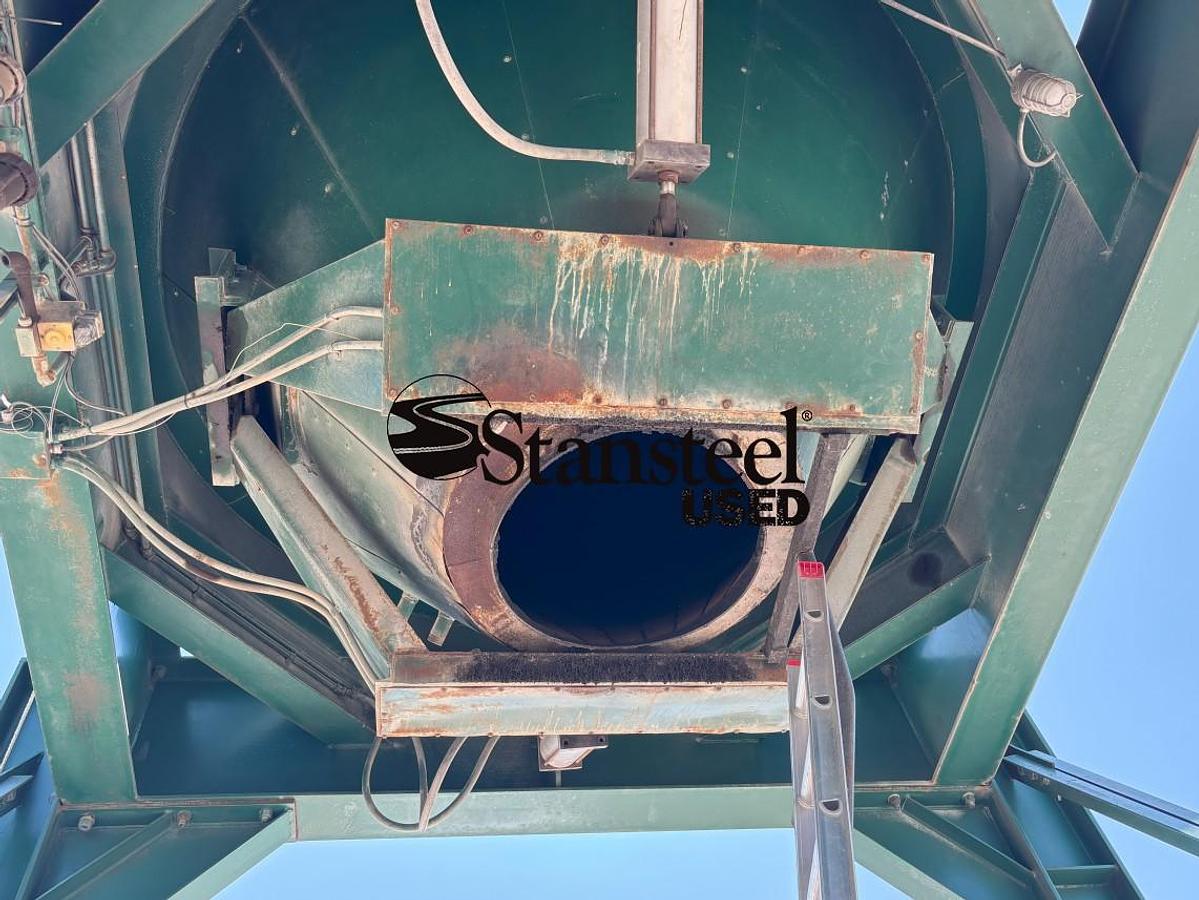

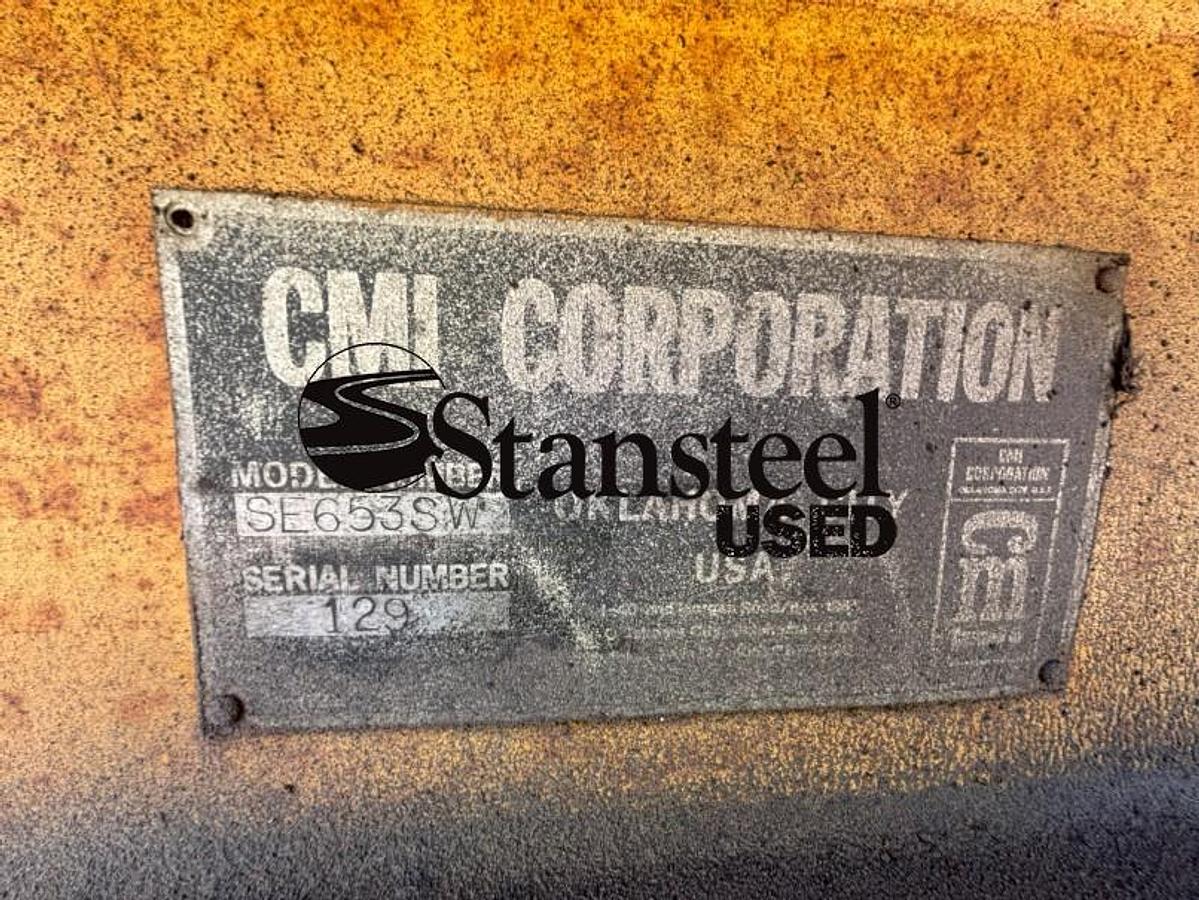

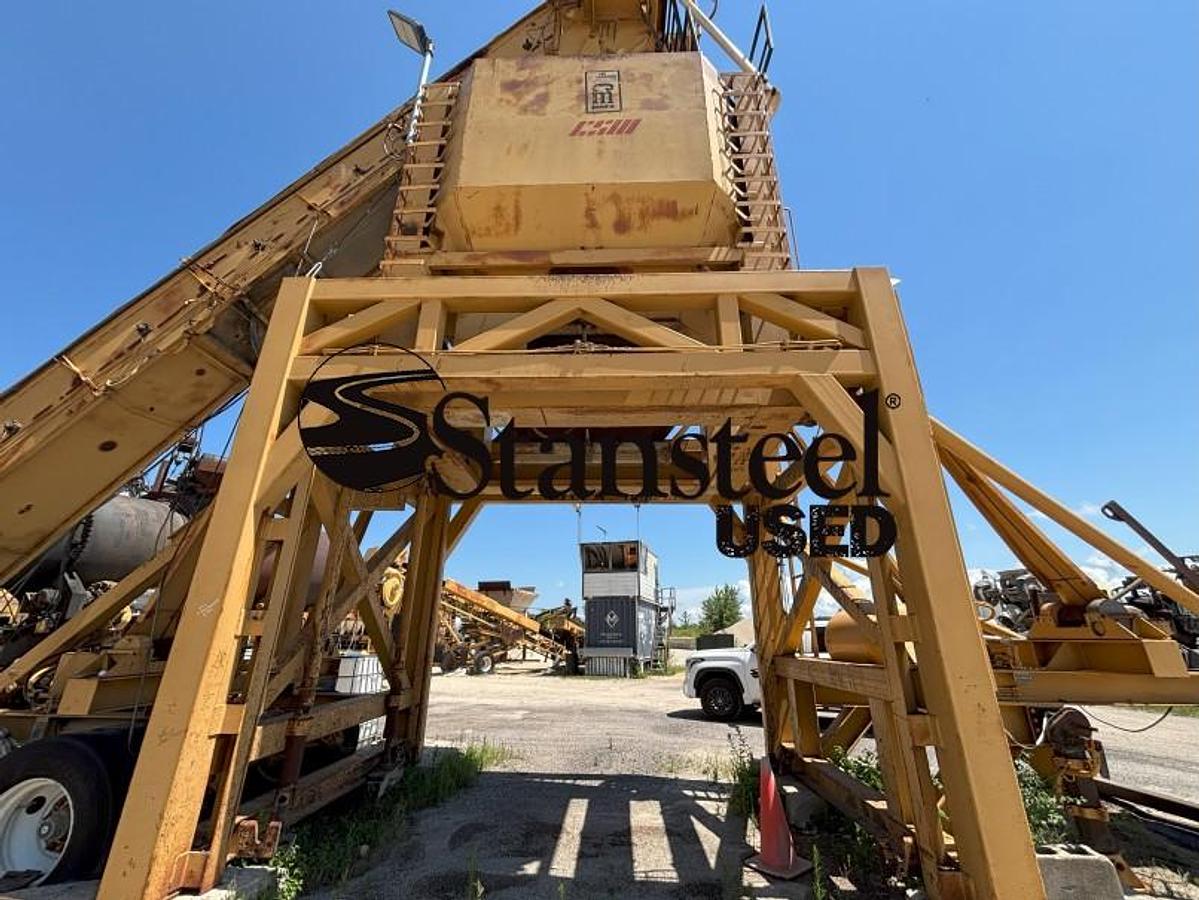

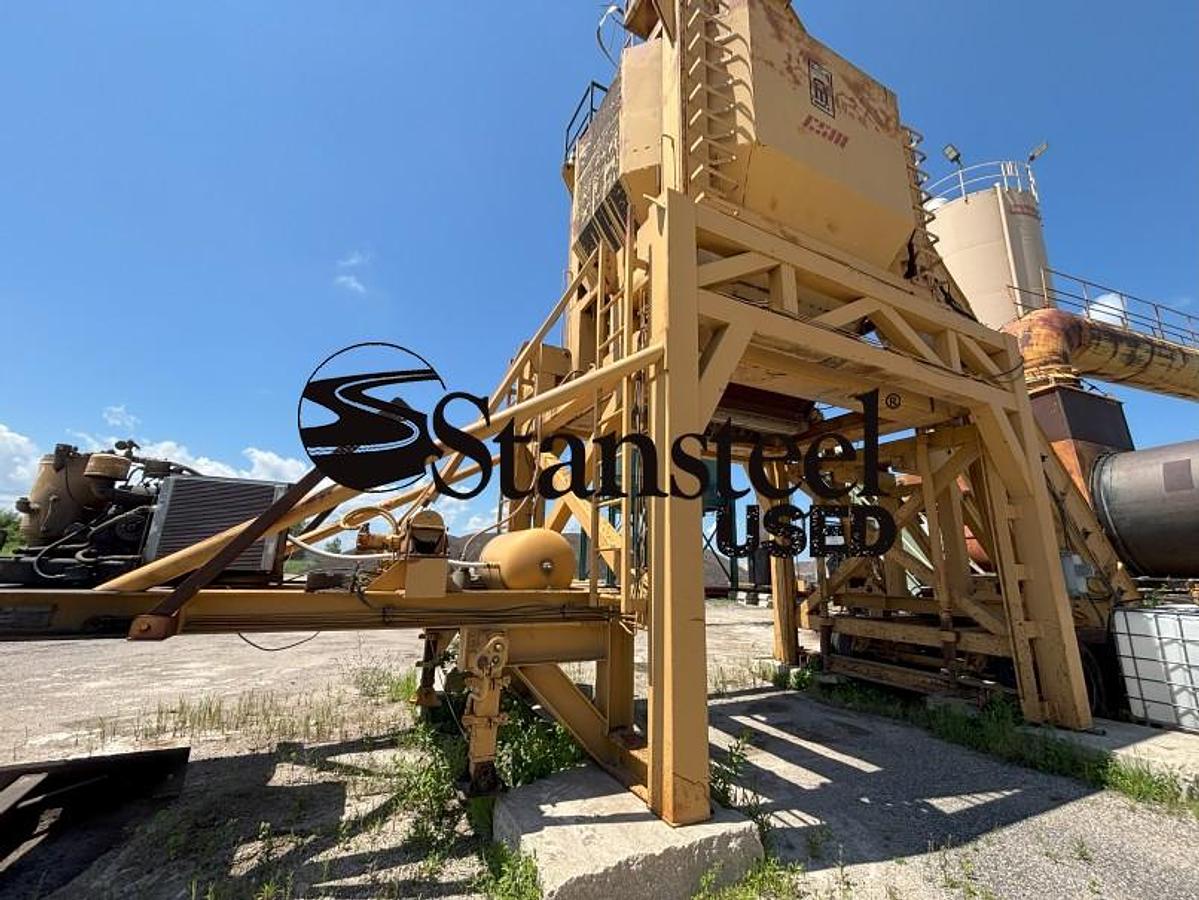

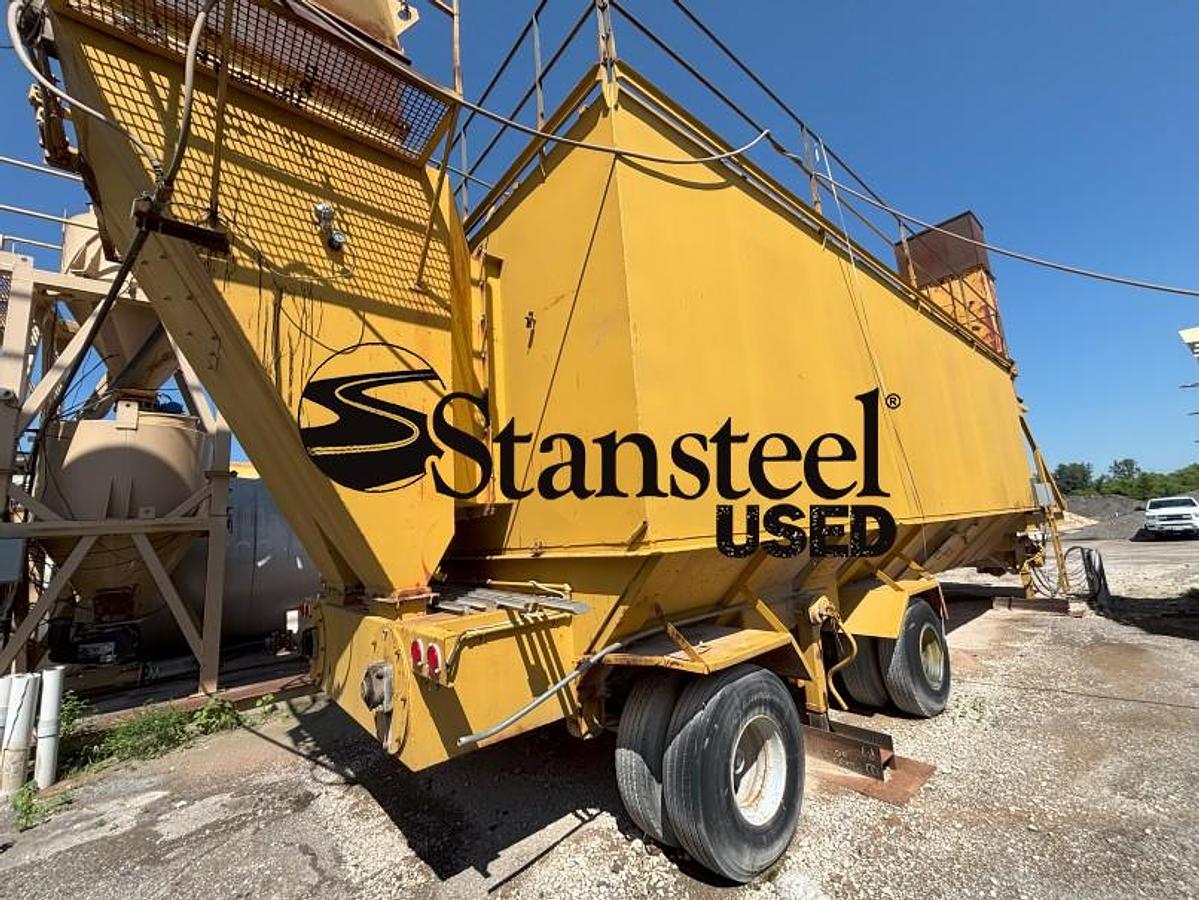

 · CMI Model SE-653S self-erecting silo system with an onboard gasoline powered hydraulic lifting system.  65 Ton capacity, reverse weigh silo with batcher assembly.  36” wide main slat conveyor with a 60 HP drive and is also equipped with a reject gate. Mounted on the gooseneck is a Gardner Denver 40HP Air Compressor.  Silo System is equipped with a tandem axle suspension.

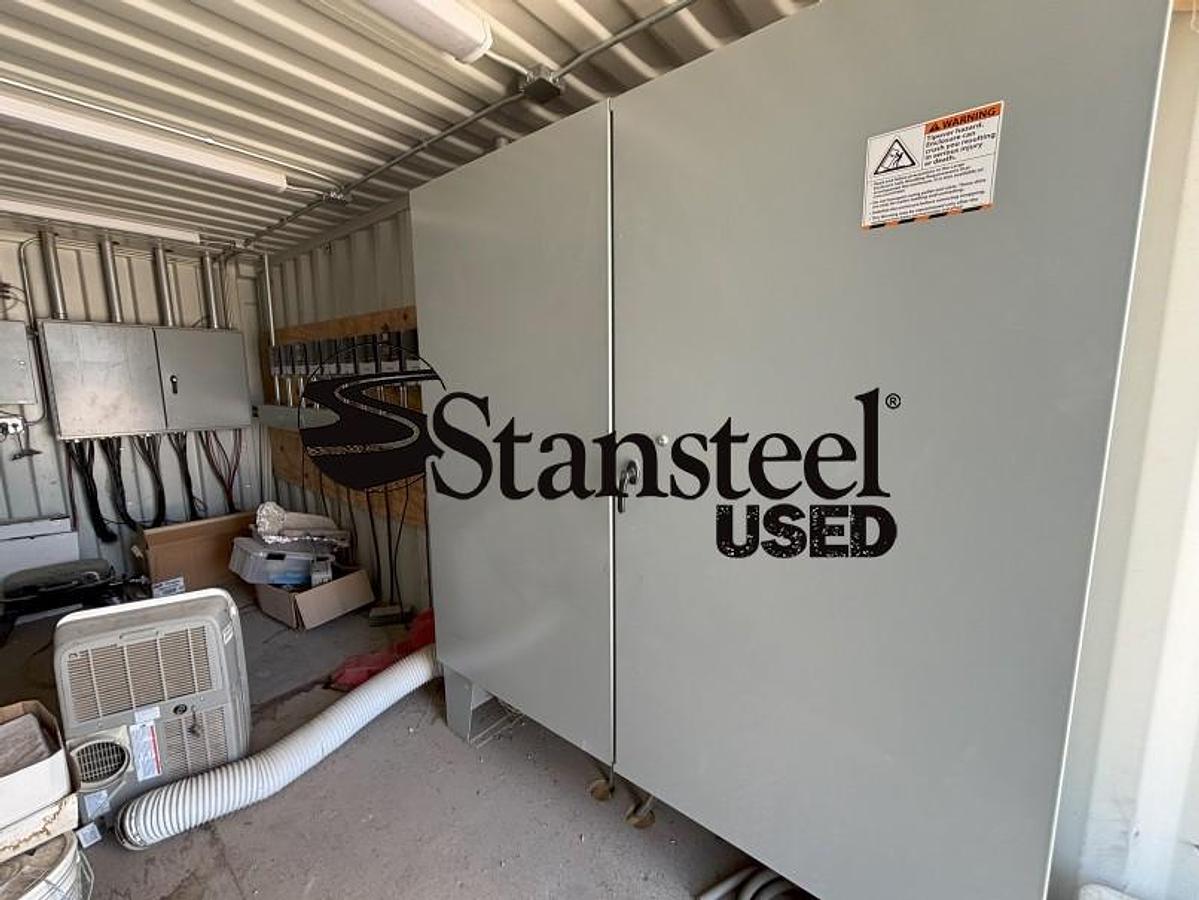

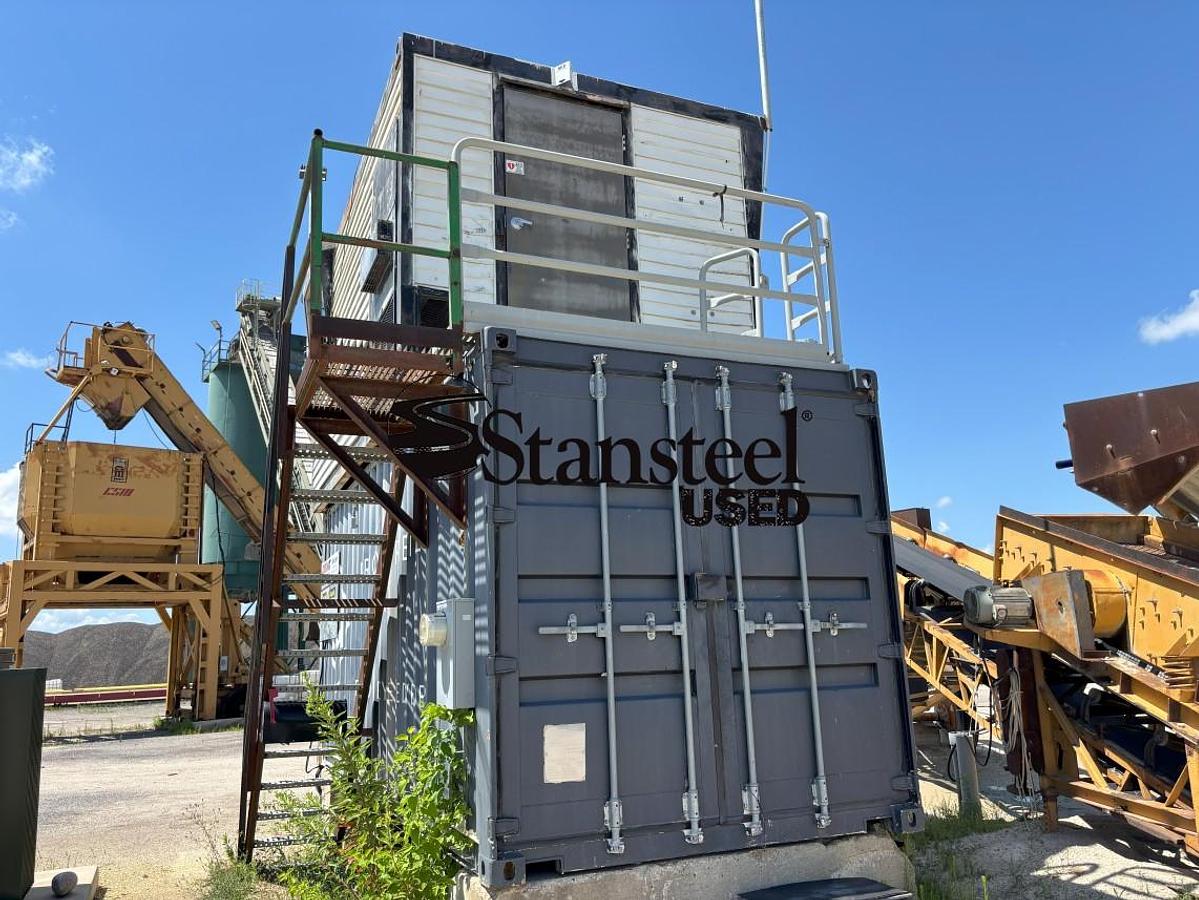

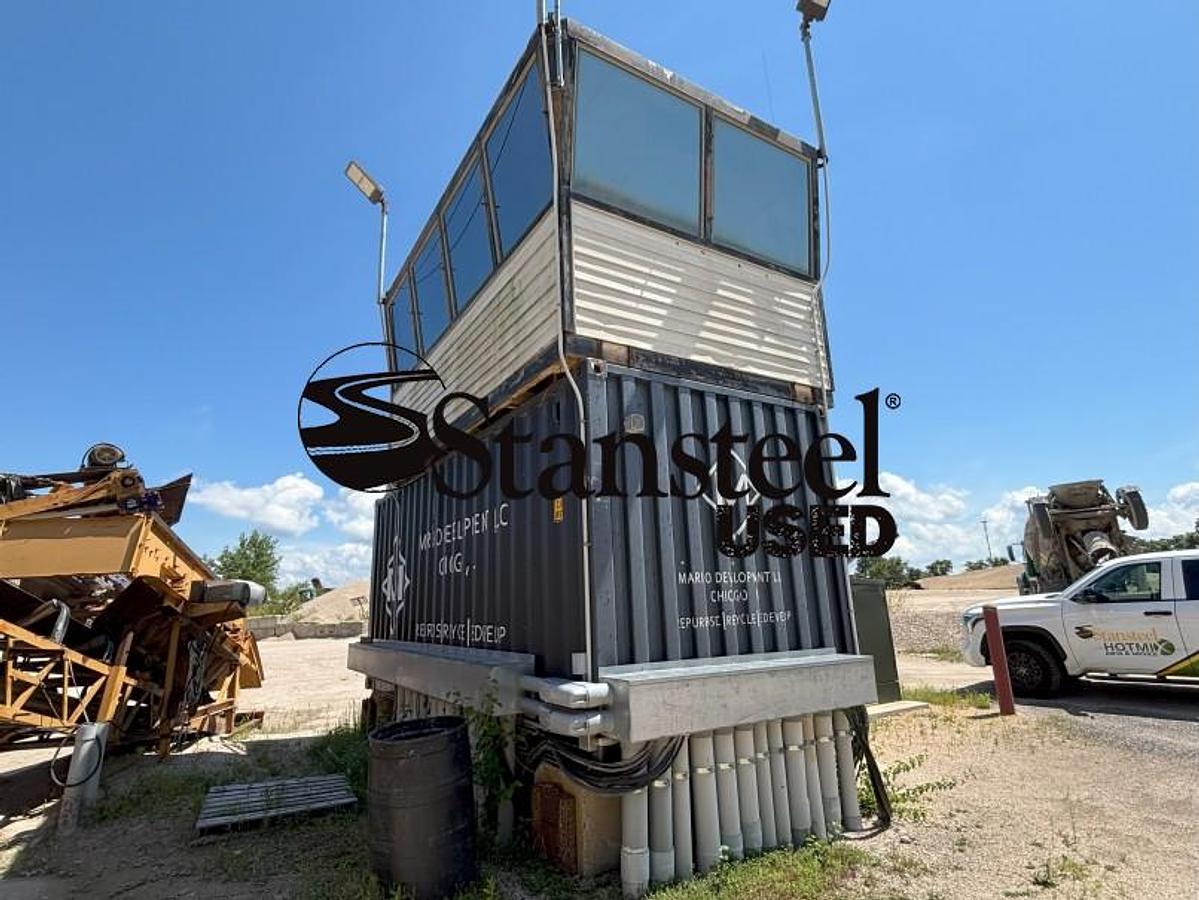

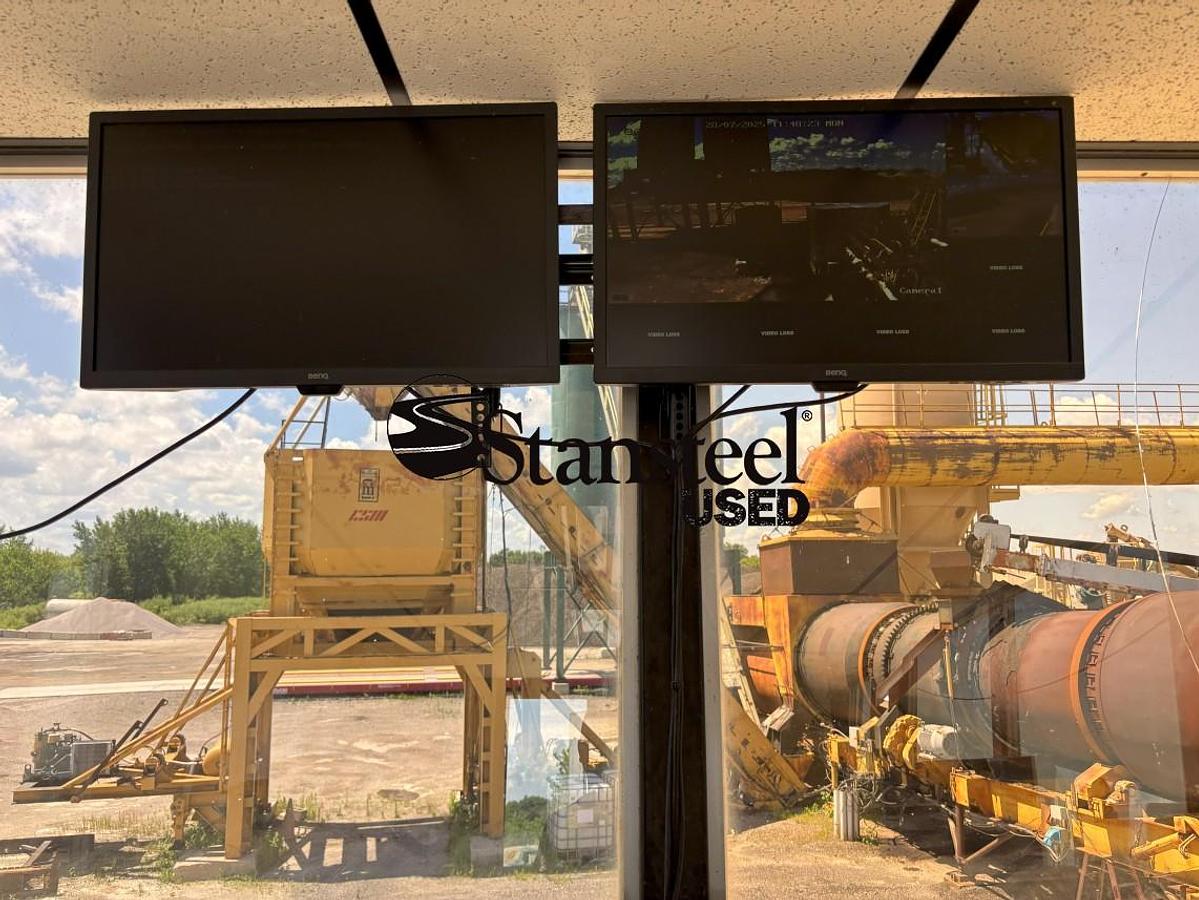

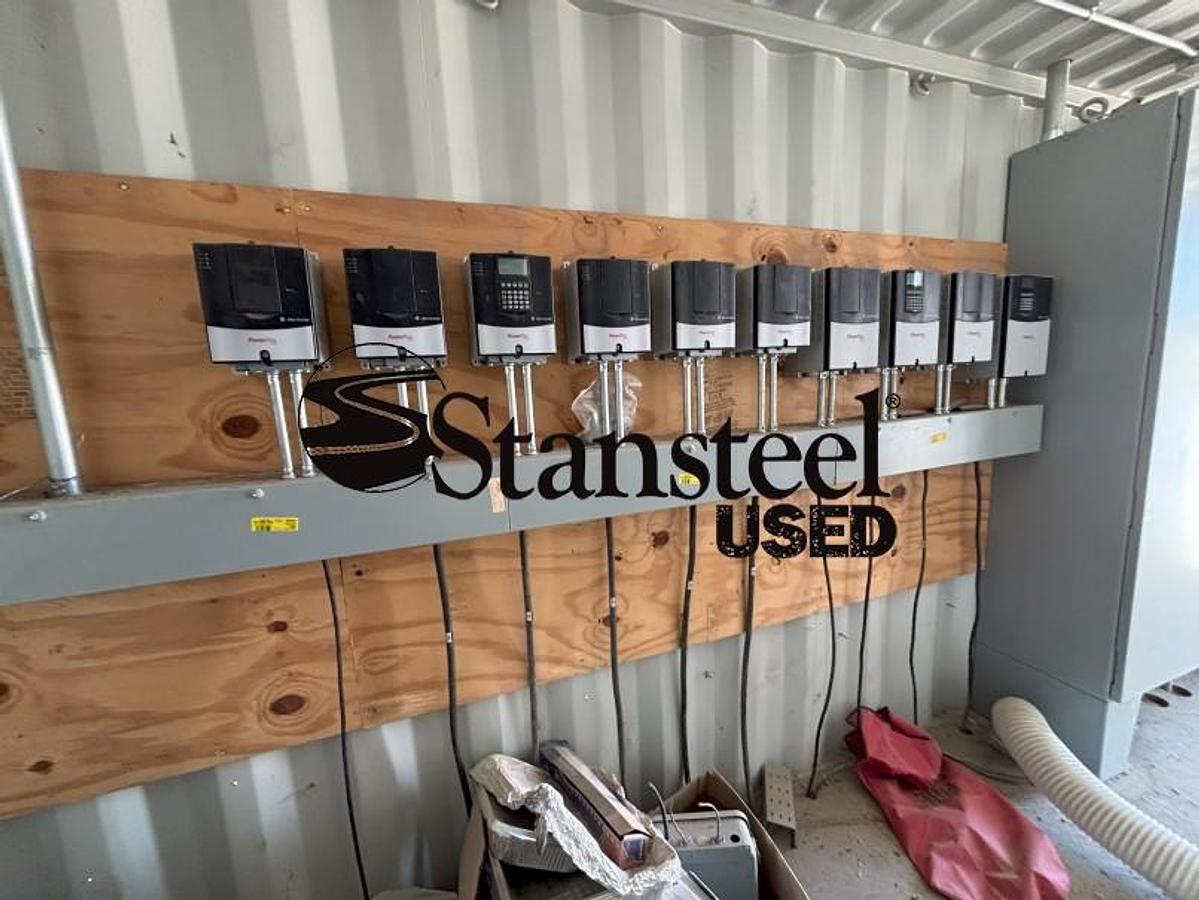

· One (1) CMI Control House with MCC that includes EZ Blend Blending Plant Controls, Libra Loadout Controls and Hauck Burtner Controls.


Specifications

ManufacturerCMI
Model300TPH Portable Parallel Flow Drum Plant
ConditionUsed
Stock NumberSSS-5689
