Cedarapids Stationary 400 TPH Counterflow Drum and Baghouse Combo
Cedarapids Stationary 400 TPH Counterflow Drum and Baghouse Combo
Description

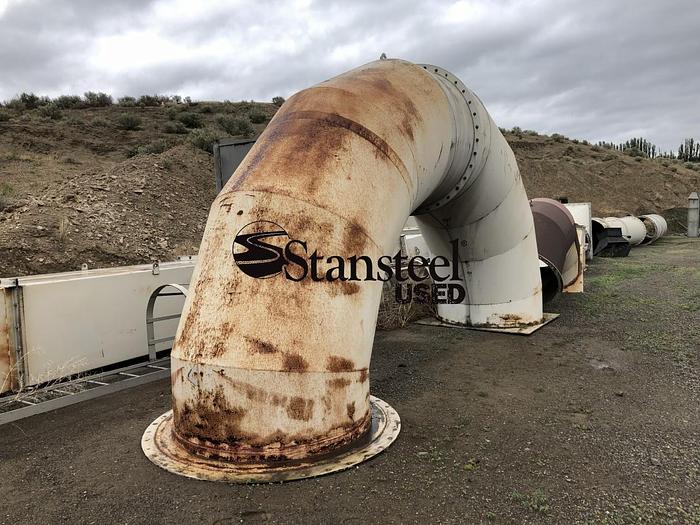

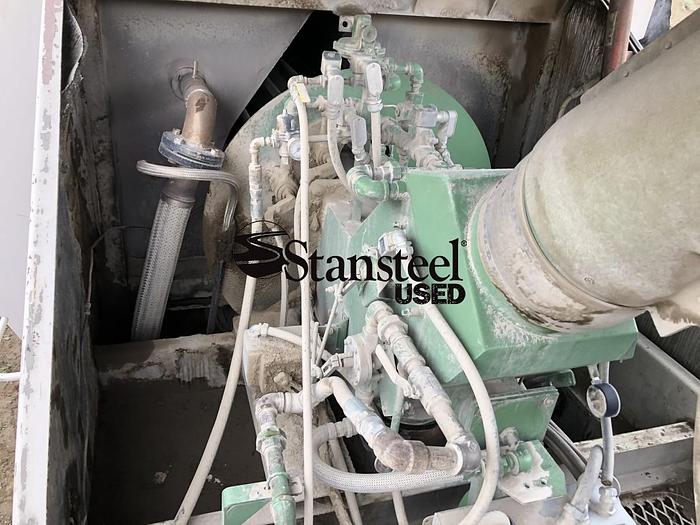

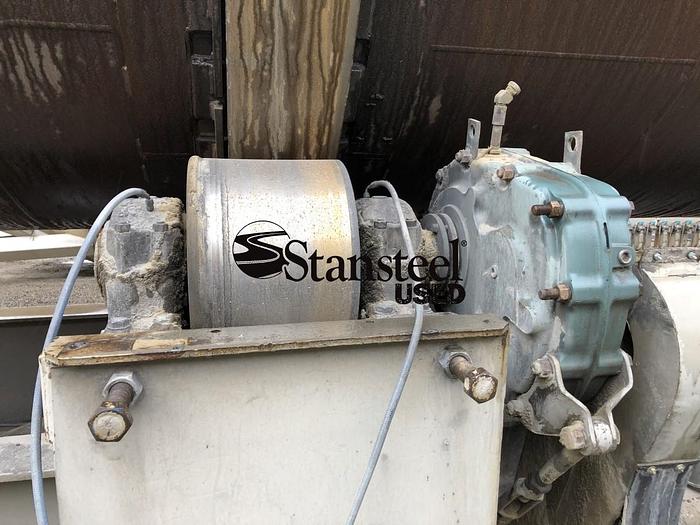

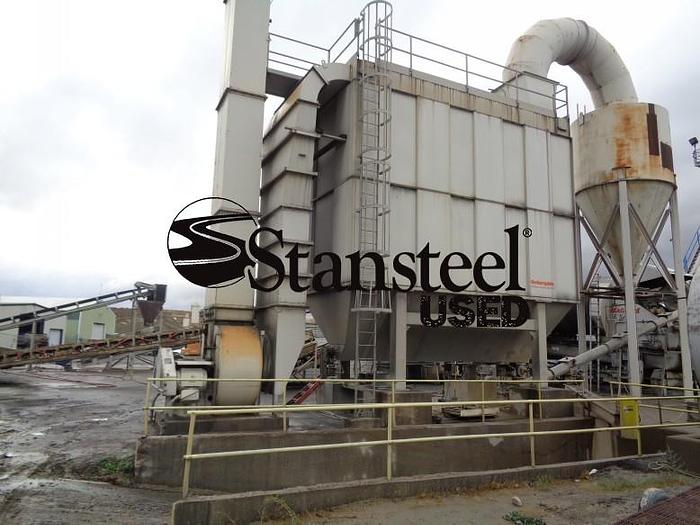

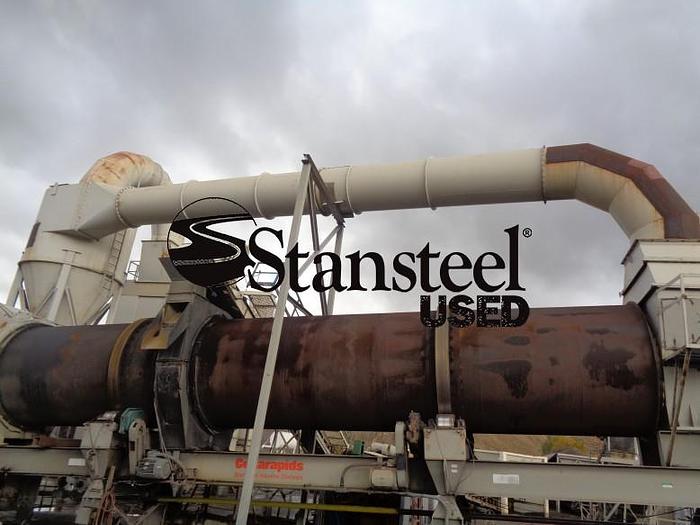

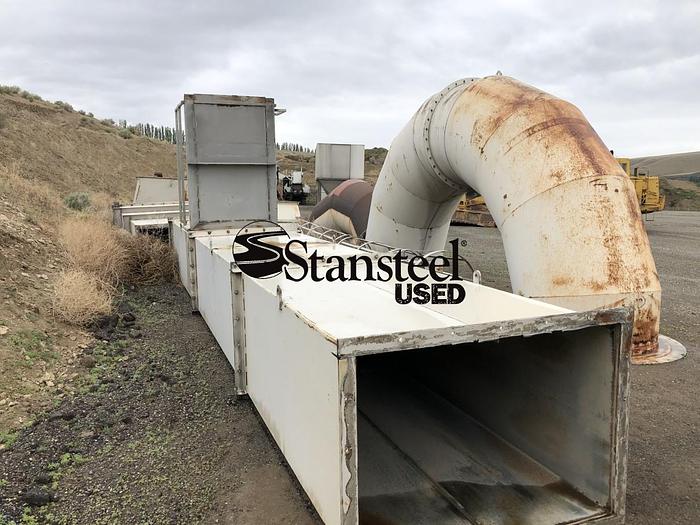

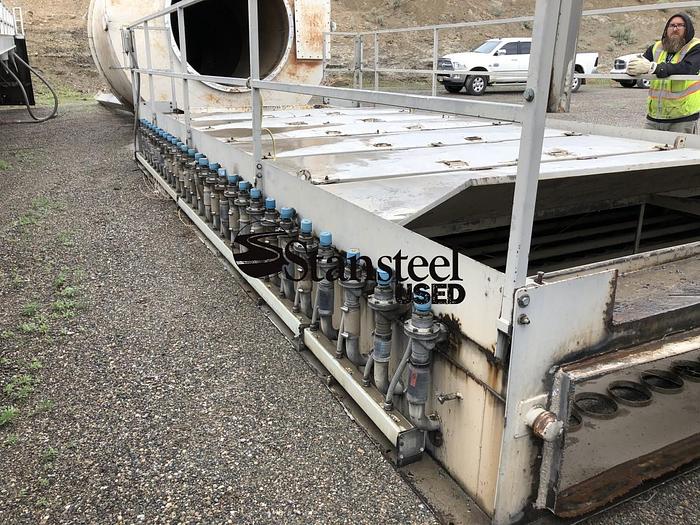

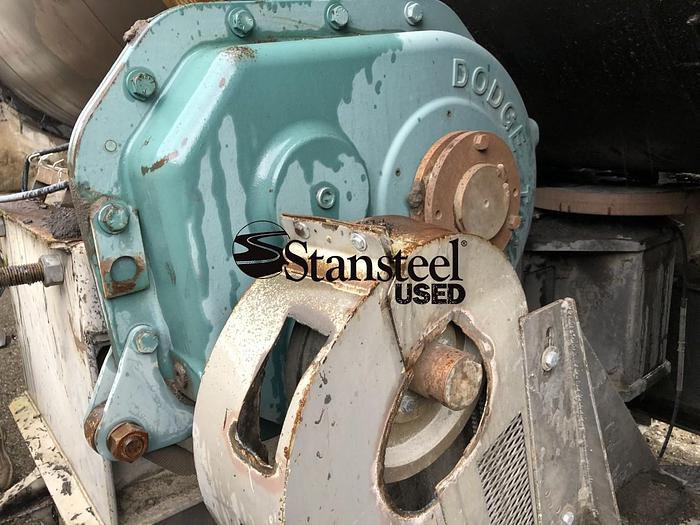

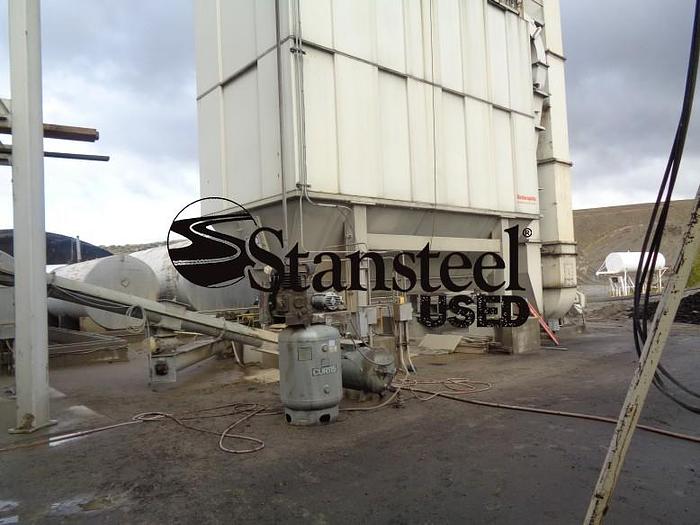

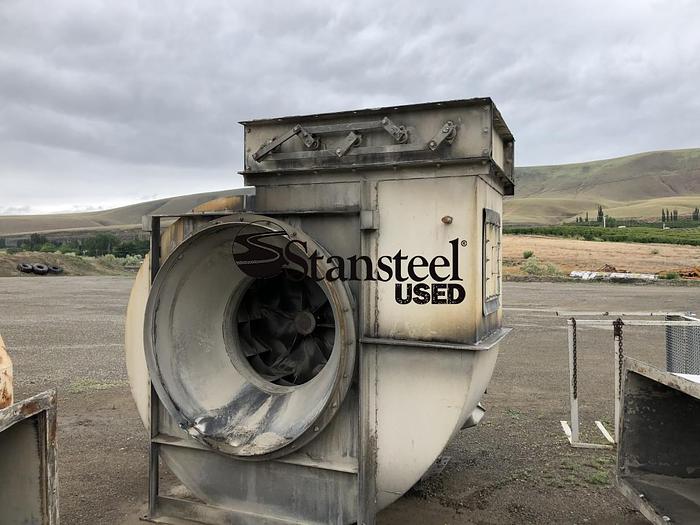

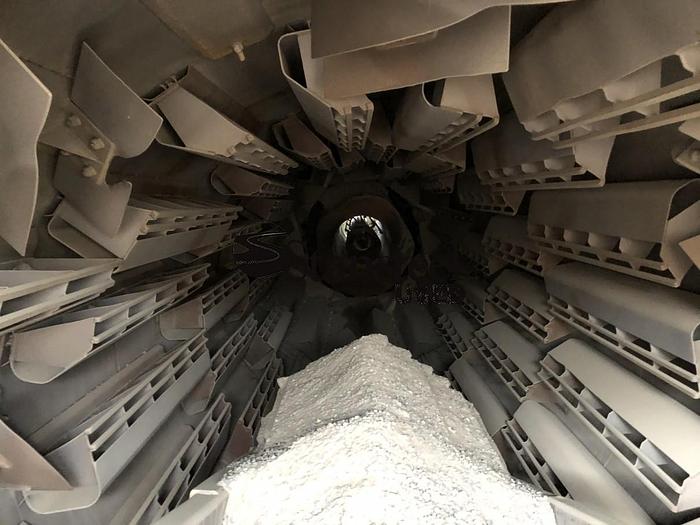

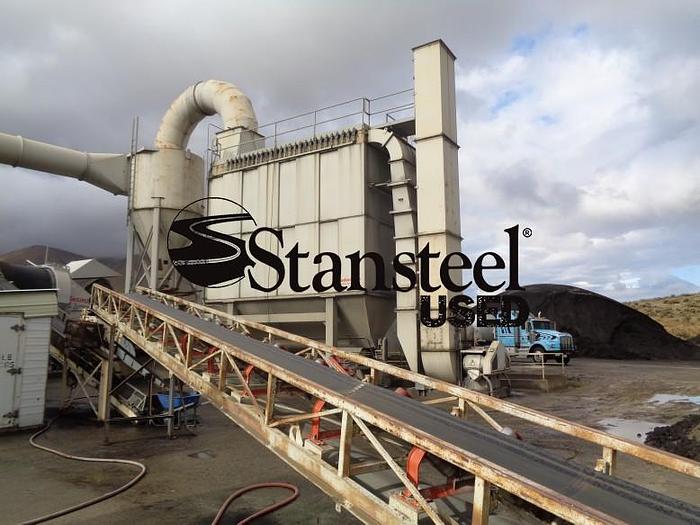

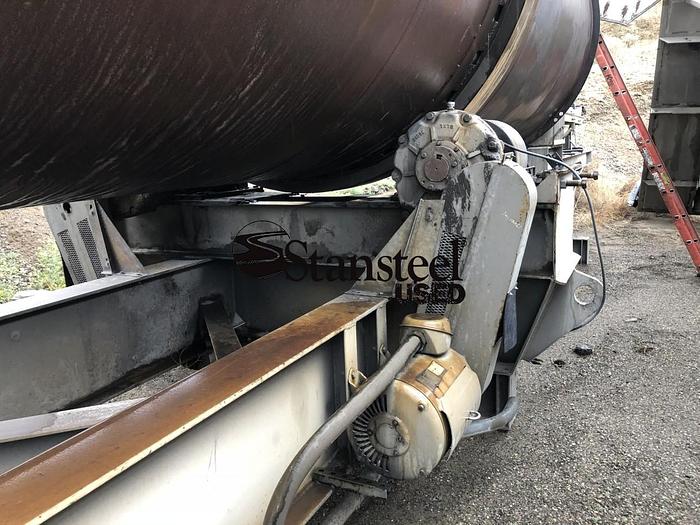

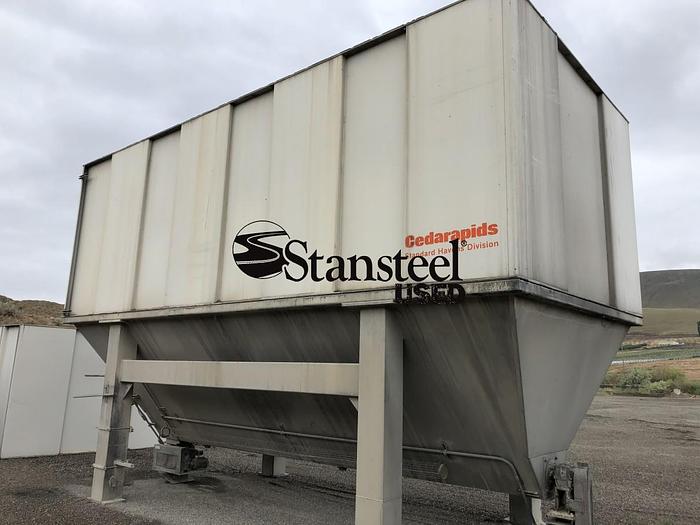

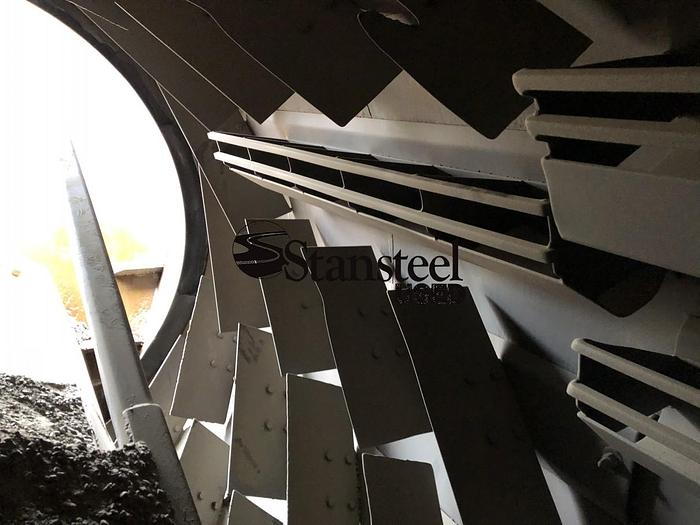

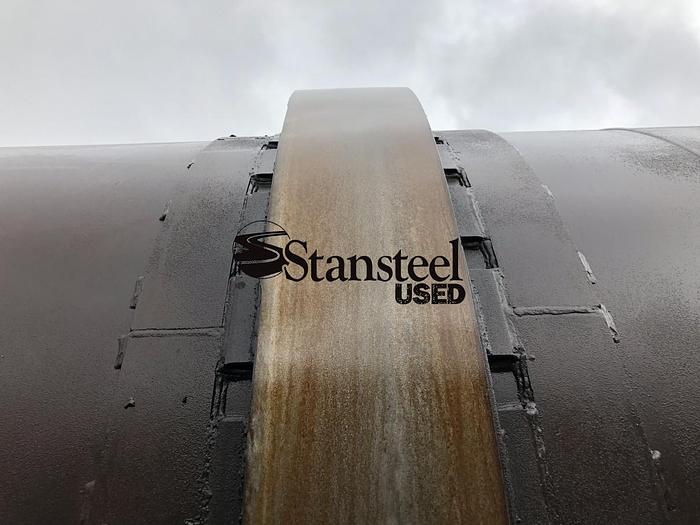

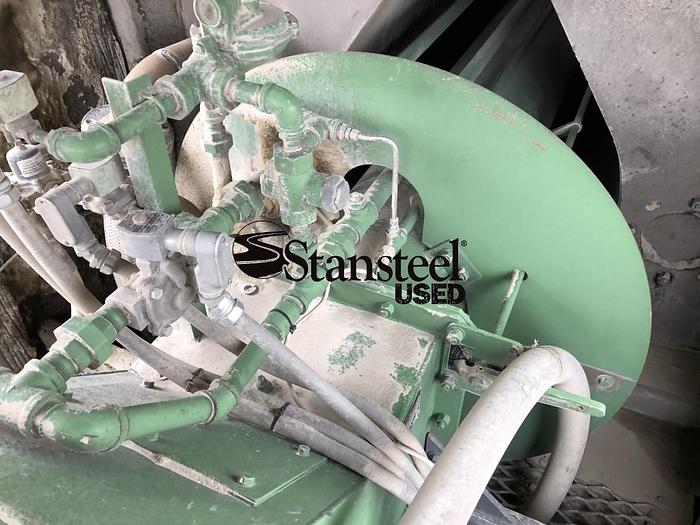

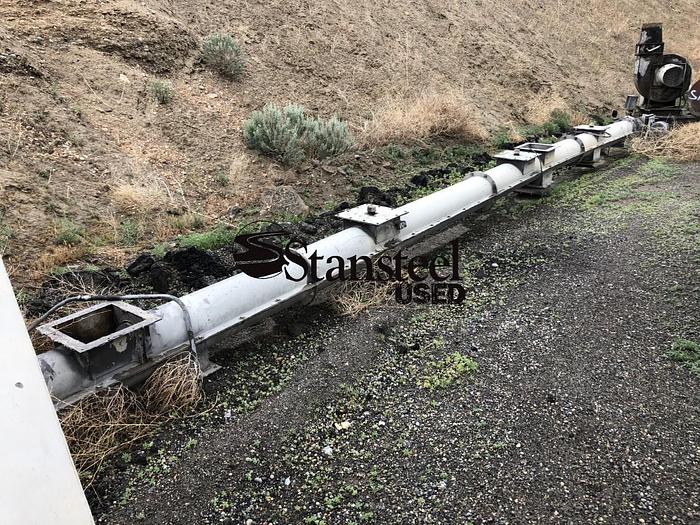

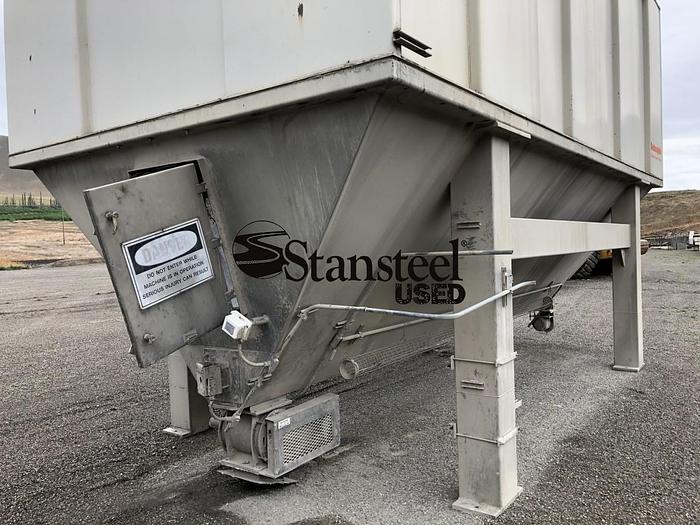

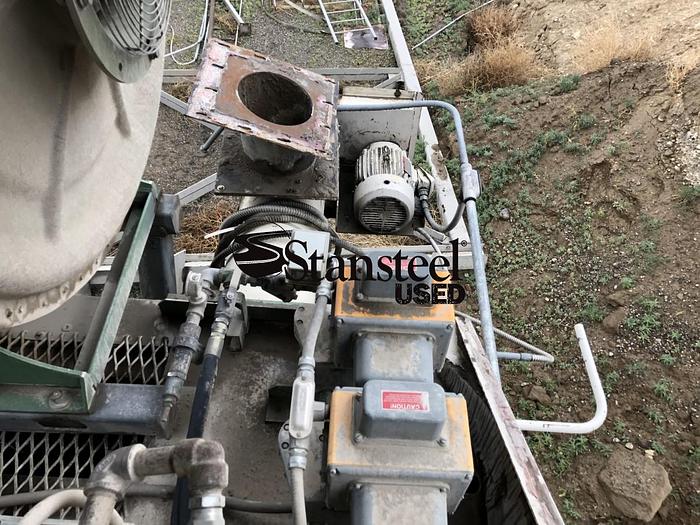

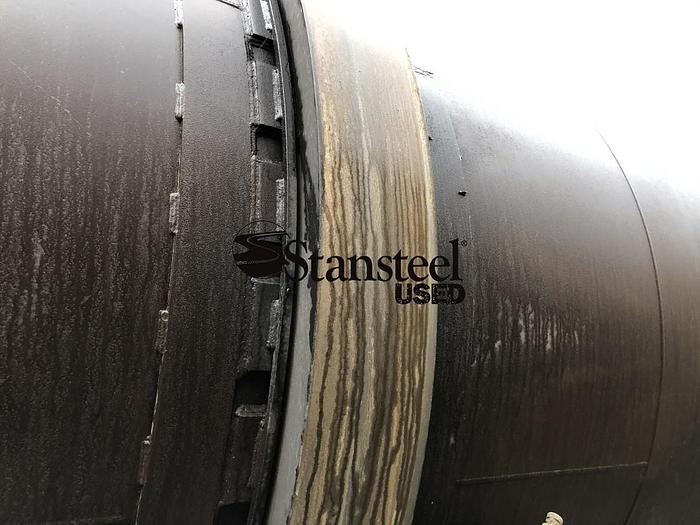

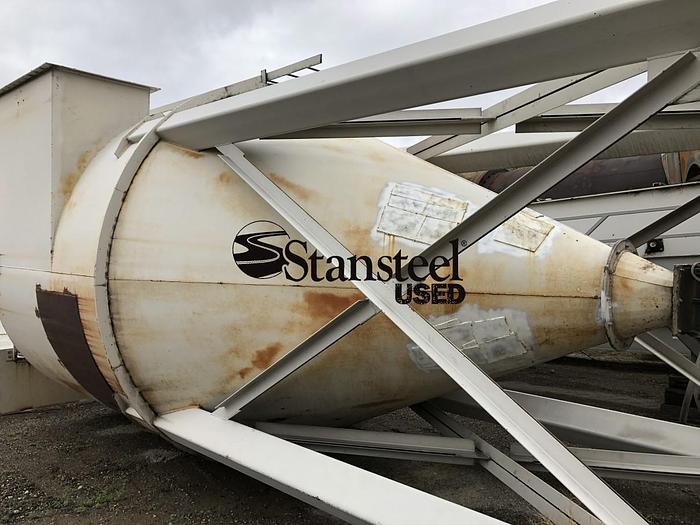

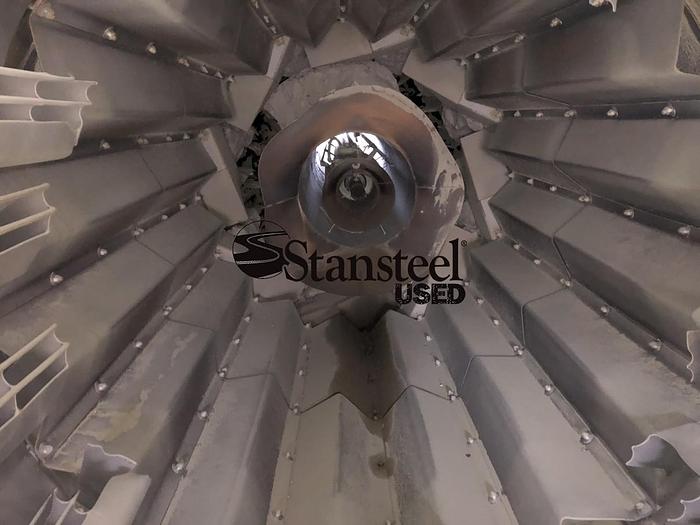

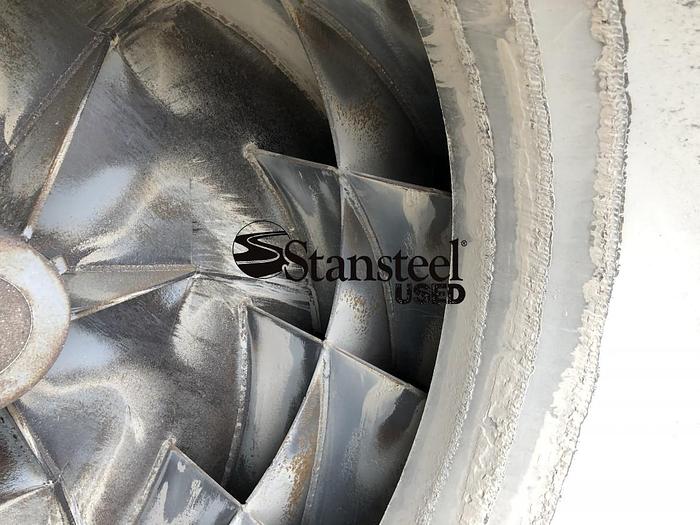

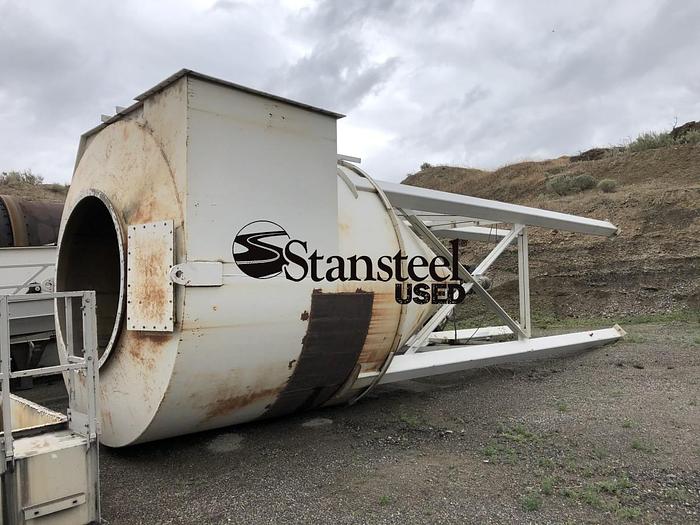

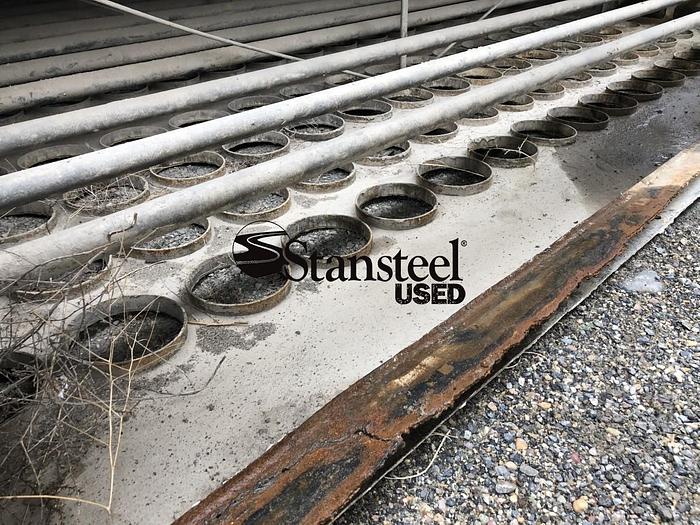

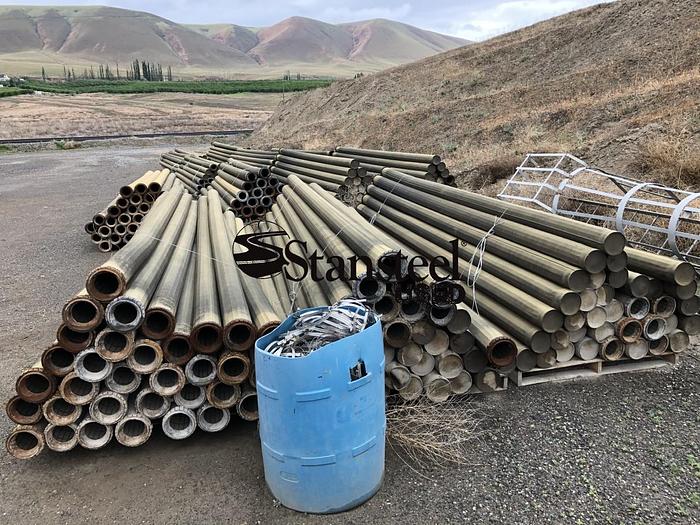

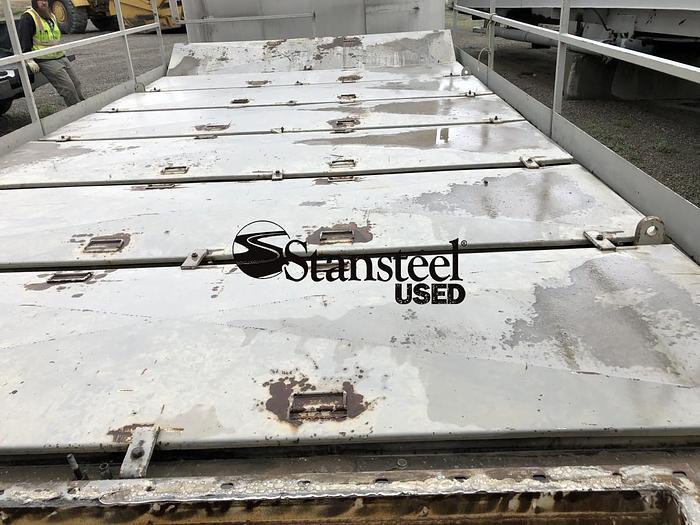

Cedarapids Stationary 400 TPH Counterflow Drum and Baghouse Combo DRUM: Cedarapids® Model E-400S Counterflow Drum Assembly Drum measurements are 100” diameter x 48’ Equipped with indexing slinger belt feed conveyor with 5 HP drive. Recycle entry collar and calibration divert chute. Four (4) Heavy duty 50HP Trunnion Drives with 2 gear reducers that were recently replaced Newer model Hauck Starjet 580 oil only burner which is currently fired on diesel. Heavy duty wide flanged beam frame and support legs Ultrasonic thickness testing shows the shell is still a consistent 3/8” thick BAGHOUSE & Primary: Cedarapids/Standard Havens® Magnum 16.5 Size 27 Stationary Baghouse Assembly Factory rated @ 65,000 ACFM with over 11,600 sq/ft of cloth (432) 6-1/4” x 16.5’ long top load bags 5 HP dust removal auger. 2 HP air lock/Vane Feeder feeding a 12” x 36’ long Screw Auger Size 490 Backward Inclined Exhaust Fan with two (2) 125 HP motors Remote controlled exhaust damper Includes all ductwork, exhaust stack, etc. as exists Cyclone primary available as well
Specifications
Manufacturer | CEDARAPIDS |
Model | E-400S |
Condition | Used |
Stock Number | GTB-5431D |
CF | 100" X 48' |
Control | W/BURNER / BAGHOUSE |
